30 Foot Low Loss Cable (LMR240 Equivalent) (N/Male & N/Female Connectors) - Black
This 30-foot low loss cable has an N-Male connector on one side and an N-Female connector on the other side.
Specifications:
Cable length: 30 Foot

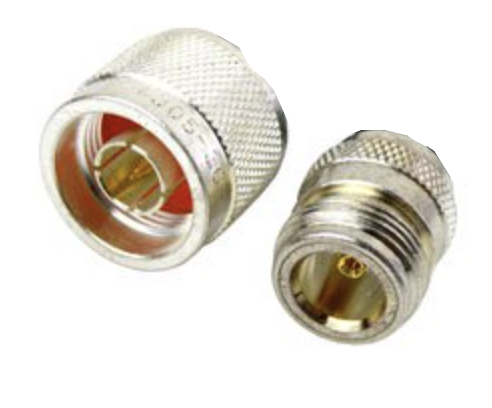

Connectors: N/Male and N/Female
Cable diameter: 1/4"
Impedance: 50ohms
Signal Loss:
The amount of signal attenuation you'll see depends on which frequency you're using.
This cable averages approximately 3.5dB of signal loss.
The attenuation for each frequency is below:
700mhz: 2.3dB
800mhz: 2.4dB
1700mhz: 3.6dB
1900mhz: 3.8dB
2100mhz: 4.0dB
2400mhz: 4.3dB
2500mhz: 4.4dB
Approximately .5dbm is lost at each connection between 2 cables
To prevent excessive signal loss, this cable should NOT be daisy-chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
L24-30-NM-NF
L24-30-NM-NF
MDG Connected Solutions, Inc.
Cable & Accessory
L24-30-NM-NF
$
$41.99
