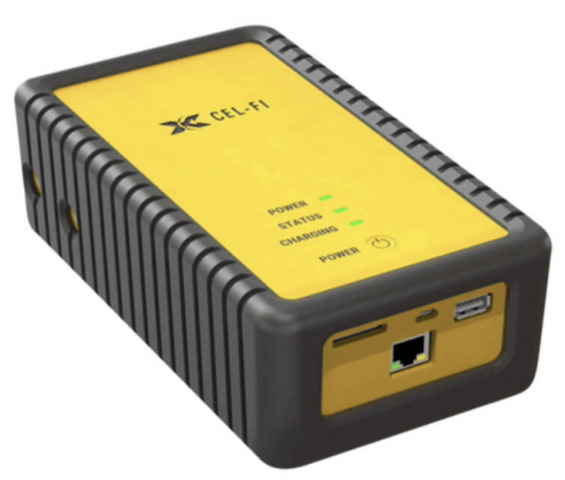

Nextivity Cel-Fi Compass XR - 5G Site Survey & Installation Tool

1 Support Docs
Call for Availability
Item Number: 12067
Quantity:

Price:

$2,499.00

Related Products
$1,299.99
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The CEL-FI COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimize CEL-FI cellular and public safety coverage systems. A convenient tool in a lightweight and portable case, it can be used globally to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.

Key Features

  • Easily perform grid tests and site surveys with portable, handheld RF scanner.
  • Ideal for deployment of CEL-FI QUATRA cellular & RED public safety systems.
  • Single tool for a wide variety of networks with deep
  • 5G-NR/4G-LTE/CBRS/FirstNet/LMR service scanner.
  • Supports operator service bands worldwide with ultra-wide frequency range of 617-5000 MHz.
  • Comes with all necessary accessories, including carrying case, hard storage case, antennas, and RF adapters.
  • Protected from drop, scrapes and tumbles with rugged rubberized exoskeleton that provides a comfortable grip.
  • Works with CEL-FI WAVE PRO app (iOS & Android) for all operations, including Full Signal Report export (.CSV) and more.

In The Box

ITEM Type
RF Cable  SMA Female to N-type Male (2 meter length)
RF Adaptors  N-type Female to N-type Female
N-type Female to QMA Female
N-type Female to 4.3-10 Female
Antennas  Three (3) 5GNR/UHF 410–5925MHz (Replacement model: Nextivity A21-ML3-600)
Battery Charger  5V, 3.2A USB-C charger with 1m cable & global plug adapters


Hardware

ITEM
TYPE
Processor
Single Board Linux Computer
Battery
Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included)
Charger
Included, with plug adapter types A, C, G & I
Accuracy
+/- 2dB
Temperature Range
Operating: -20 to +60 deg C
Charging: 0 to +45 deg C
Weight (With Batteries)
1.61 lb (730g)
Size (With Exoskeleton)
119.1 mm (4.7 in) W x 41.3 mm (1.6 in) D x 204.2 mm (8 in) H
Shipping Dimensions
419.1 mm (16.5 in) W x 327.66 mm (12.9 in) D x 185.42 mm (7.3 in) H

Download Now

CEL-FI WAVE PRO is available on both smartphones and tablets from the following app stores:

App Store Play Store
