[Open Box] HiBoost 15K SL Amplifier Kit

In Stock

Item Number: 10509
Model: F20G-5S-BTW
Quantity:

Price:

$899.99

Sale Price:

$499.99

You Save:

$400.00

This is an OPEN BOX ITEM.

Open box items may be customer returns or demo units used by 5Gstore; they may be missing packaging or other materials and may not include the original warranty or other manufacturer support or license plans. Read the below information carefully for details on the product's condition. All open items are sold AS-IS and are returnable within 30 days only if defective.

Even the largest homes can get better mobile broadband performance with the HiBoost Home 15K. This cell signal booster kit pulls in a stronger signal from the nearest cell tower, giving you fewer dropped calls, faster internet speeds and longer battery life on devices. It is compatible with the frequency bands used by most U.S. and Canadian providers and supports up to 200 users at once, so you and your family and friends will all enjoy better cellular performance. And with up to 15,000 square feet of coverage, it will be more than enough for luxury and multi-family homes along with some small business offices.

The HiBoost LCD 15K Wide Band is an all-in-one kit that includes the amplifier, an outdoor directional antenna, an indoor panel antenna and HiBoost 400 ultra-low-loss cables. The LCD display lets you see exactly how much your signal is being boosted and also makes it easy to use the manual gain control function. The amplifier has a streamlined metal enclosure that is long-lasting and helps reduce interference. It will also automatically shut down if the tower signal is strong enough on its own. Call or email 5GStore with any questions about this residential cell phone booster.

Features:

  • Coverage Area*: 15,000 square feet
  • All-in-One Kit? YES
  • Compatibility: This amplifier supports 700MHz/800MHz/1700MHz/1900MHz/2100MHz networks (which includes most 2G, 3G and 4G providers in the U.S.). Supported carriers/networks include:
    • Verizon 2G/3G/4G/AWS
    • Sprint 2G/3G/4G — 4G LTE will only be improved where Sprint is using the 1900MHz band. This amplifier does NOT support Sprint's 2500MHz LTE band
    • AT&T 2G/3G/4G/LTE
    • US Cellular 2G/3G/4G
    • T-Mobile 2G/3G/4G
    • MetroPCS 2G/3G/4G
    • For other carriers, confirm which frequency your provider is using and make sure this amplifier supports it before purchasing! Contact us if you need any assistance.



Installation notes:

  • In order for your system to function properly, you must maintain adequate separation between the outside and inside antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will shut down). This amplifier requires approximately 60' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • If you cannot achieve adequate separation to eliminate oscillation, the gain on the amplifier will automatically adjust to accomodate, but that will result in a smaller coverage area from the amplifier.
  • The Yagi antenna must be aimed directly at the cell tower - if it is not aimed properly or if there are too many obstructions between it and the cell tower, it will not be effective.
  • The interior antenna should be at least 10' away from the amplifier and should be aimed AWAY from the outside antenna.

Key Features:

  • Supports up to 200 users
  • Covers up to 15,000 square feet
  • All 2G, 3G and 4G standards are supported
  • Low interference to cell tower
  • FCC certified
  • MGC special function
  • LCD display
  • Streamlined design
  • Quality metal construction, strong and durable

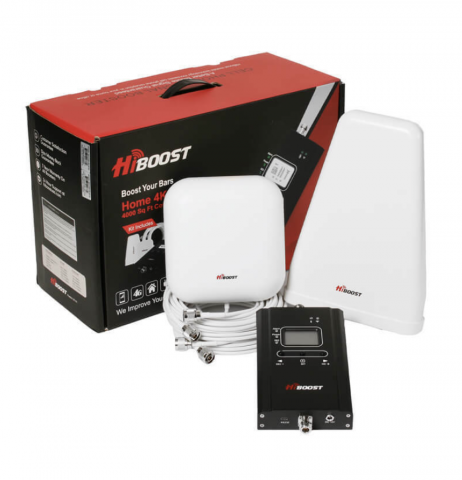

Package Includes:

  • HiBoost Home 15K signal booster
  • Outdoor Wide Band Directional Antenna
  • Indoor Wide Band Panel Antenna
  • 2 x 50 foot ultra low loss cables

Specifications

  • Model: F20G-5S-LCD
  • Uplink Frequency Range: 698–716 / 776–787 / 824–849 / 1850–1915 / 1710–1755 MHz
  • Downlink Frequency Range: 728–746 / 746–757 / 869–894 / 1930–1995 / 2110–2155 MHz
  • Standards Supported: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, 4G & all cellular standards
  • Maximum Gain: 70dB
  • Max Output Power: UL17~24dBm,DL12dBm
  • MGC (Step Attenuation): ≥25dB/1dB step
  • RF Connectors: N/Female
  • Impedance: 50ohms
  • Environmental Conditions: IP40
  • Dimensions: 8.6*6.5*2inch/218*165*50mm (amplifier)
  • Weight: ≤5.0Lbs/2.2Kg
  • Power Supply: Input AC100~240V, 50/60Hz, Output DC 12V/3A
  • FCC ID: OWWF25K-5S
  • IC ID: 10527A-F25G5SIC

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
