[Open Box] Poynting Omni-291 Marine LTE Antenna (Cable Sold Separately)

In Stock

Item Number: 10705
Model: A-OMNI-0291-V2-OPEN
Quantity:

Price:

$222.70

Sale Price:

$129.99

You Save:

$92.71

This antenna does NOT include cabling. You must select a length of cable from the list.

The cables listed here are terminated in SMA/Male for use with most routers/modems. Adapters are available if you need to connect to a different type of connector - contact us if you need assistance.If you already have a compatible cable you plan to use (this antenna has an N/Female connector), you may select the "I already have a cable" option.

Cable length recommendation: Unless you plan to use an amplifier as well, we recommend using LESS THAN 50' OF CABLE to minimize signal loss. Mounting the antenna outside and reasonably high up is recommended, but using long lengths of cable for the express purpose of mounting the antenna higher up typically does not outweigh the additional loss unless the extra length allows you to mount the antenna in a location that can receive signal MUCH better than a shorter cable would.
Select a Cable (required) - details

This is an OPEN BOX ITEM.

Open box items may be customer returns or demo units used by 5Gstore; they may be missing packaging or other materials and may not include the original warranty or other manufacturer support or license plans. Read the below information carefully for details on the product's condition. All open items are sold AS-IS and are returnable within 30 days only if defective.

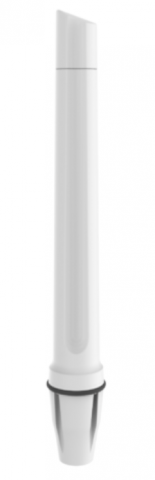

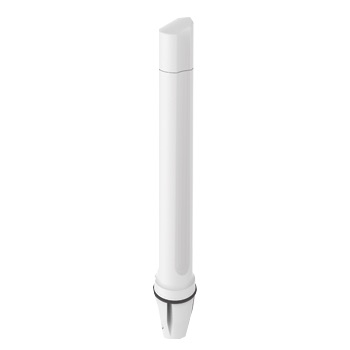

The OMNI-291 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation to most marine attachments. The ultra-wide frequency band covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies, including the LTE & CDMA 450 MHz bands which are common requirements for marine applications. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-291 a true high performance omni-directional antenna. The OMNI-291 guarantees signal reception almost everywhere along the coast, allowing it to be usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a uniquely (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries!

Features:

  • Medium gain omni-directional antenna
  • Purpose built antenna for marine and coastal applications
  • Lightweight
  • UV and salt-water resistant
  • Robust and weather resistant
  • Operational in LTE bands as well as 2.4 – 2.5 GHz Wi-Fi band


Specifications:

  • Model: A-OMNI-0291-V2
  • Frequency range: 410 – 470 MHz / 698 – 960MHz / 1710- 2700 MHz
  • VSWR: <2.5:1 across 90% of the bands
  • Peak Gain (excluding cable loss):
    • 2 dBi @ 410-470 MHz
    • 2.7 dBi @ 698 – 960 MHz
    • 7 dBi @ 1710 – 2700 MHz
  • Max Input Power: 10 Watts
  • Impedance: 50 Ohms
  • Dimensions: 22" x 3" (including bracket)
  • Cable: None included - select a cable from the menu above
  • Connectors: N Female
  • Operating Temp: -40°C to +80°C
  • Wind Survival: <186 kmph="" --186--="">
  • Water ingress protection ratio/standard: IP 68
  • Salt Spray: MIL-STD 810F/ASTM B117
  • Operating Relative Humidity: Up to 98%
  • Enclosure Flammability Rating: UL 94-HB
  • Impact resistance: IK 08
  • Product Safety & Environmental: Complies with CE and RoHS standards
  • Material: UV Stable Marine ASA
  • Mounting: Standard 1'' -14 TPI marine mount & Wall/pole mount
  • Color: White
