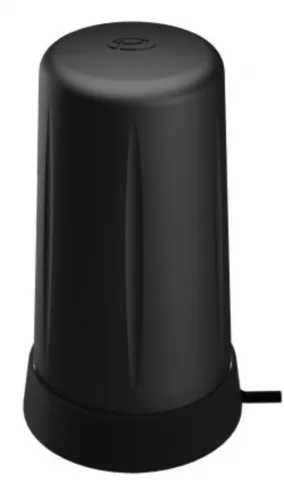

Panorama Low Profile Magnetic M2M 4G/5G Antenna - 6.5 Foot Cable - LPBEM-6-60-2SP

Panorama Low Profile Magnetic M2M 4G/5G Antenna - 6.5 Foot Cable


2 Customer Reviews 1 Questions & Answers
In Stock
Item Number: 10839
Model: LPBEM-6-60-2SP
Quantity:
Have a large deployment?
Request a Quote

Price:

$34.92

The Panorama LPBEM-6-60 is a low cost high performance magnetic mount antenna for temporary applications. At only 95mm (3.7'') high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.

The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960MHz and 1710-6000MHz making it extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.

Supplied with a 2 meter length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.

The cable attached to this antenna is terminated in SMA/Male for use with most routers/modems - an adapter is required to use with other devices (hotspots, etc).



Specifications:

Country of Origin China
No. of Cellular Connectors 1
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Magnetic
Antenna Color Black
Width (in) 1.89
Height (in) 3.7
Weight (lb) 0.75
Maximum Gain 8
Impedance Ω (Input/Output) 50
Cable Length (in) 78
Cable Type RG174
Minimum Temperature (F) -40
Maximum Temperature (F) 180
Material U.V. stable, impact resistant ASA, Aluminium
VSWR (Voltage Standing Wave Radio) 2:5:1

Filter Reviews
   Last 2 Weeks (0)
    100% (2)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (2)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 10/24/2022 by Scott T. (Rocklin, CA)
My company uses cell technology to monitor our equipment at FM radio translators and sometimes we'll run into one of two problems- the building is too well shielded for good cell reception, or there's something inside the building creating a bit of interference which prevents connection. I installed a set and now have five bars and perfect reception.

Date Added: 07/05/2022 by Ean. (Valdosta, GA)
Works as it should.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

Can the Panorama low profile magnetic antenna hold up in a touchless car wash?

This antenna is IPX6 rated. Products with this rating are sprayed with 100 liters per minute at a pressure of at least 15psi for at least 3 minutes from all directions. We would NOT recommend leaving it installed during a touchless carwash as the cleaning arms may knock it loose or damage the unit.
