MobileMark MXF508 2x 5G LTE, 2x WiFi 6E, 1x GPS |15Ft cables - MXFG508-3C3C3J3J2C-BLK-180

MobileMark MXF508 2x 5G LTE, 2x WiFi 6E, 1x GPS |15Ft cables

Call for Availability
Item Number: 16313
Model: MXFG508-3C3C3J3J2C-BLK-180
Quantity:
Have a large deployment?
Request a Quote

Price:

$378.35

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

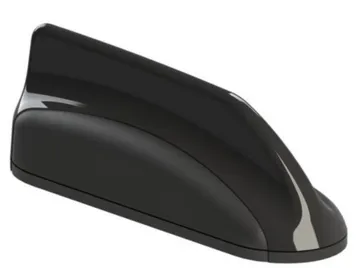

The MaxFin 508 Antenna (2x Global 5G/LTE, 2x WiFi 6E, 1x GNSS) provides complete coverage over all Cellular and WiFi 6E Frequencies, along with operation over GNSS Frequencies. GNSS operates on GPS, Galileo, Glonass, QZSS and Beidou at 1561, 1575, & 1602 MHz. Multiple WiFi 6E and Cellular elements provides MIMO coverage for both. This array of elements allows for a highly versatile antenna, while still managing to mantain a sleek and compact form, with all 5 elements being contained within the narrow profile of the MaxFin series radomes.

Global 6-2-6 MaxFin Series (5 cables) -

  • Cable 1: Global LTE 617-960/1710-6000 MHz, 15 ft LL-195 SMA-plug
  • Cable 2: Global LTE 617-960/1710-6000 MHz, 15 ft LL-195 SMA-plug
  • Cable 3: WiFi 6E 2.4-2.5/4.9-7.2 GHz, 15 ft LL-195 Rev Pol SMA-plug
  • Cable 4: WiFi 6E 2.4-2.5/4.9-7.2 GHz, 15 ft LL-195 Rev Pol SMA-plug
  • Cable 5: GLONASS/GPS 15 ft RG-174 SMA-plug
MXFG508_spec_sheet(16313).pdf



Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Bolt
Antenna Color Black
Length (in) 7.5
Width (in) 2.25
Height (in) 2.5
Maximum Gain 6
Impedance Ω (Input/Output) 50
Cable Length (in) 180
Cable Type LL195 (cellular and WiFi) and RG174 (GNSS)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material ASA UV-Inhibitive Plastic
VSWR (Voltage Standing Wave Radio) 5G/LTE - < 2.5:1 Over Range WiFi 6E- < 2.5:1 Over Range
