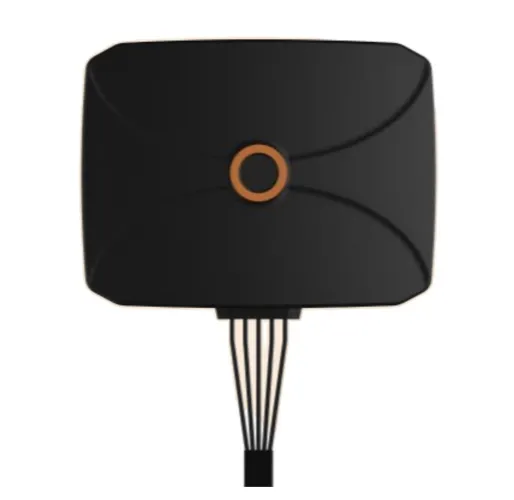

5G Panel Antenna (A-PANL-0401-V1-01) - A-PANL-0401-V1-01
  • 5G Panel Antenna (A-PANL-0401-V1-01) - Angled front view

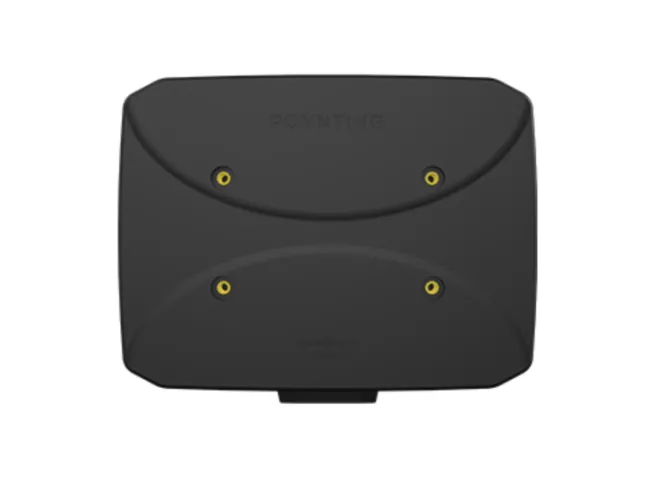

  • 5G Panel Antenna (A-PANL-0401-V1-01) - Back view

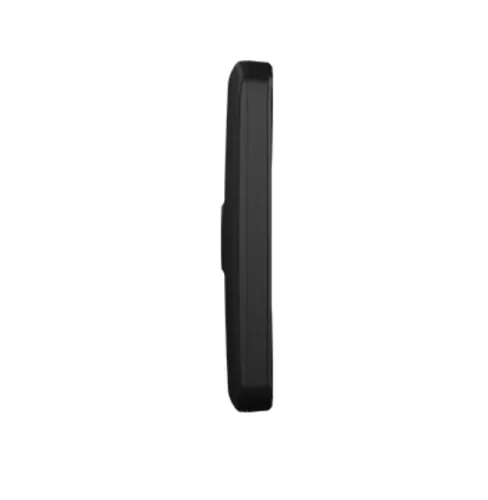

  • 5G Panel Antenna (A-PANL-0401-V1-01) - Side view

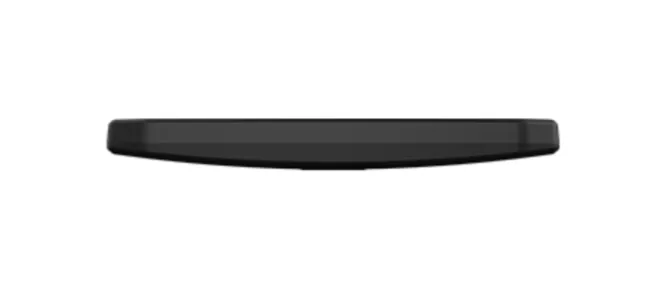

  • 5G Panel Antenna (A-PANL-0401-V1-01) - Top view

Omni-Directional, Cross-Polarised, 4x4 MIMO 5G Panel Antenna; 410 to 6000 MHz, 7.8dBi; 4 x Cellular, 1 x GNSS

1 Support Docs
Call for Availability
Item Number: 20589
Model: A-PANL-0401-V1-01
Quantity:
Have a large deployment?
Request a Quote

Price:

$189.00

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The PANL-401 is a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 5-in-1 solution, featuring 4 x Cellular antennas and 1 x dual-band active GNSS antenna, providing exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.

Benefits

  • Ultra-Wideband Frequency Coverage: Supports frequencies from 410 to 6000 MHz, ensuring compatibility with multiple cellular operators and technologies.
  • Future-Ready 5G Support: Designed for seamless integration with upcoming 6 GHz 5G applications. Reliable GNSS Performance: Includes a dual-band active GNSS antenna for accurate navigation and precise location tracking in challenging environments.
  • Optimized Radiation Pattern: Offers an ideal balance of omnidirectionality, pattern diversity, and elevation coverage, making it perfect for the transportation market.
  • Low-Profile and Compact Design: Blends seamlessly into vehicles or fixed installations, addressing both aesthetic and practical considerations.
  • Convenient Installation: Features an innovative window mount design, allowing for easy attachment using suction cups or adhesive mounts for both vehicles and buildings.

Key Features

  • 5-in-1 high-performance multi-functional 5G antenna
  • 4 x Cellular and 1 x Dual Band GNNS antennas
  • Ultra-Wideband cellular antennas that operate from 410 to 6000 MHz
  • Cross polarised with linear Vertical & Horizontal cellular antennas for improved performance
  • Omni-Directional panel antenna with a low-profile design
  • Flexible, non-invasive mounting options
  • Weather, dust, and vandal-resistant enclosure (IP65)

Ideal Applications

  • Enhances connectivity for vehicles, trains, and ships, ensuring robust communication and precise GNSS tracking
  • Ideal for enhancing cellular connectivity in urban and rural areas supporting 4G/LTE and 5G networks
  • Enables seamless communication for smart city infrastructure
  • Enhances connectivity for remote monitoring and control of energy infrastructure, such as oil and gas
Tech_Spec_A_PANL_0401_V1_01(20589).pdf

Latest Blog Posts About This Product




Specifications:

Country of Origin China
No. of Cellular Connectors 4
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Male
GPS Connector SMA Male
Antenna Type Indoor
Antenna Style Omni
Antenna Mount Suction/Window
Antenna Color Black
Length (in) 10.5
Width (in) 8.3
Height (in) 1.2
Weight (lb) 1.9
Maximum Gain 7.8
Impedance Ω (Input/Output) 50
Cable Length (in) 6.5
Cable Type RTK-031
Minimum Temperature (F) -40
Maximum Temperature (F) 158
Material UV Stable ASA
VSWR (Voltage Standing Wave Radio) <2:1
