1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - BL01-E400-5GE-AM-N

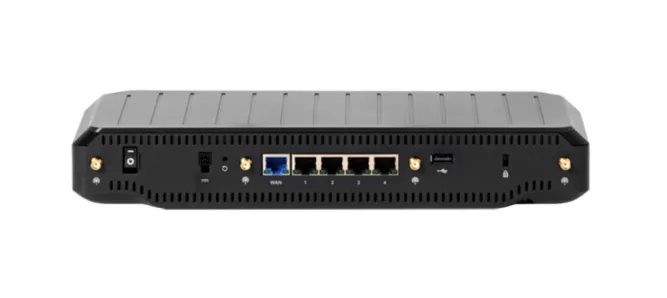

  • 1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - Back view

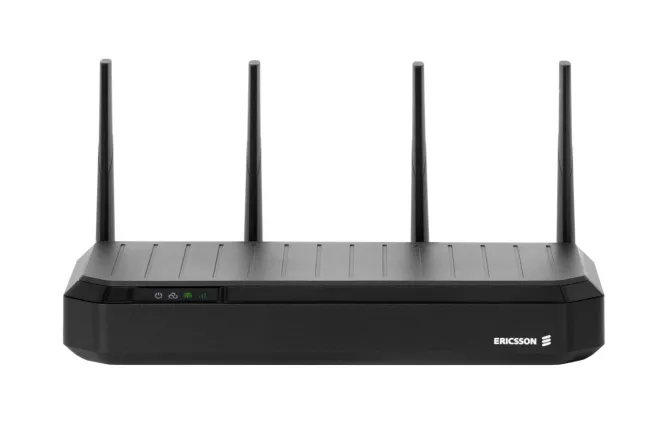

  • 1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - With antennas attached

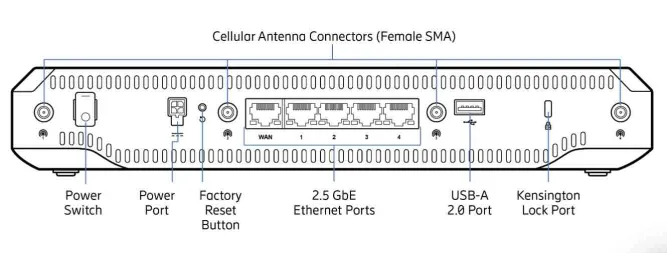

  • 1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - Detailed back view

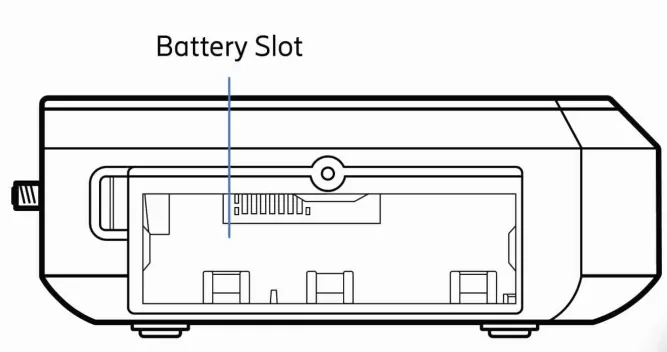

  • 1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - Detailed side view (battery slot)

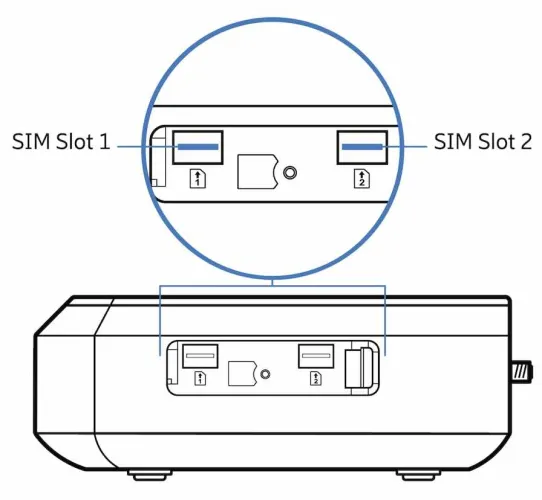

  • 1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas - Detailed side view (SIM slots)

1-yr NetCloud Enterprise Branch Routing Essentials Plan, and E400 (5G Modem), Americas

65 Support Docs
Not yet Shipping
Item Number: 20699
Model: BL01-E400-5GE-AM-N
For additional capabilities, a NetCloud Advanced Plan can be added to the NetCloud Essentials package at any time. See additional details of what is included in the Essential and Advanced NetCloud software at cradlepoint.com/netcloud-service
Optional Advanced Plan Add-On: - details
This is a 25 W battery with a capacity of 56.62 Wh. Provides up to 8-hour battery backup with an approximate charge time of 12 hours to reach 95 percent charge.
Optional Battery Backup: - details
Bundle & Save Compare All...

Contact Me When the Cradlepoint Ericsson E400 is Available!

The Cradlepoint Ericsson E400 is expected in the next few months. Sign up here to be notified when it's available or contact us today to discuss alternative options!
Email Address: *
Name: *
Phone:
Comments:



This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The Ericsson Ericsson Cradlepoint E400 routing and security appliance is designed to connect fixed locations using the latest standards of Stand Alone 5G cellular, Wi-Fi 7, satellite, and wired links. The all-in-one form factor makes it easy to connect offices, branches, store, clinics and pop-up temporary locations to the internet and critical applications without the need for extra hardware or complicated configurations. The embedded 5G or LTE modem means that connectivity is always available from day one without waiting for a wired connection while the dual-SIM ensures continuous uptime for connectivity.

Ideal for Wireless WAN

For organizations moving to a wireless WAN, the E400 offers the ability to pair 5G or LTE with a wired link and use a cellular link as a failover connection, hybrid WAN or a primary connection. For an all-wireless WAN, the E400 offers 5G or LTE performance, which can support the throughput needs of a small- or medium-sized office with the ability to add a second cellular connection to increase available bandwidth and reliability.  The cellular modem offers advanced 5G technology to operate with 5G Stand Alone networks, which permit Network Slicing, or the ability to lock into a logical overlay performance-optimized for a specific use case with dedicated bandwidth, and quality of service.  The embedded eSIMs provides deployment flexibility, expanded carrier profile options, and allows carrier switching without changing physical SIMs. An Ericsson provided minimal data plan on the eSIM allows for zero touch Provisioning and activation of the E400 in the field without additional connectivity requirements.

SD-WAN, Security Integration, LAN Extension Options, and Private Cellular

The E400 router offers SD-WAN to make cellular, wired and satellite connections optimized so that critical applications are assigned priority and run as expected even in challenging situations. Ericsson SASE zero trust security enhances the organization’s security posture by minimizing the attack surface, limiting the blast radius, and preventing lateral movement. A single policy engine integrates policies for Secure Connect, SD-WAN, and Zero Trust Network Access for a truly unified visibility and management experience, providing simplicity and scalability.

If the LAN and Wi-Fi capacity of the E400 isn’t sufficient for the location needs, expand the available ports and Wi-Fi clients with LAN Switches and Wi-Fi Access Points to add more users, more IoT devices and more applications - without adding complexity. This full stack solution, including the SD-WAN and SASE, is easily managed by NetCloud.

Additionally, the E400 router can serve as the user equipment router for private cellular networks that provide reliable local area network connectivity where wireless LAN fails to meet the network needs due to large areas or excessive congestion.

Benefits

  • 5G NR Rel-17 modem and Wi-Fi 7: Harnesses the latest advancements in 5G and Wi-Fi technology to deliver ultra-fast, reliable, and seamless connectivity for demanding business applications.
  • Network slicing: Lock the device to designated network slice for dedicated bandwidth, improved quality of service and optimal performance.
  • Flexibility and resilience: Operate as a primary 5G wireless connection, a failover solution for wired networks, hybrid wired, cellular, or satellite networks, delivering maximum adaptability and robust network continuity.
  • LAN extensibility: Expand LAN capacity with LAN switches and Wi-Fi access points for a full stack office solution with simplified, single unified management through Ericsson NetCloud Manager.
  • eSIM and dual SIM capabilities: Seamlessly switch between carriers or configure eSIM profiles remotely, ensuring flexible deployment, cost efficiency, and reliable 5G connectivity anywhere.
  • NetCloud SASE support: Integrate cellular-centric SD-WAN and security features into a fully unified solution, enabling easy provisioning for service providers and lean IT organizations.
  • Up to 8-hour battery backup: Ensure uninterrupted connectivity during power outages with an integrated 8-hour battery backup, keeping your business up and running when it matters most.
  • Captive modem: Add a second cellular modem and use captive modem to act as a controller for an Ericsson Ericsson Cradlepoint 5G Adapter for added resiliency.
This hardware requires end-user information for registration to activate included services and the manufacturer’s warranty.

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 4
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 1.9 Gbps
SIM Card Size 4FF
eSIM Support Yes
Length (in) 12.1
Width (in) 5.54
Height (in) 2.06
Weight (lb) 12.8
Minimum Temperature (F) 32
Maximum Temperature (F) 113(withoutbattery);104(withbattery)
Material Industrial plastic
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 7
Cloud Management Included Yes
Power Input 100-240 VAC 1 A
Bluetooth No
Bonding Support No
IP Passthrough Yes
