Is your 5G router not quite hitting the mark? Often, the built-in antennas are the bottleneck, struggling to pull in a strong signal, especially in tricky spots. Slapping on an external 5G antenna is a total game-changer, seriously cranking up your signal reception and transmission. Think up to double your download speeds, latency slashed in half, and rock-solid coverage, even if you’re out in the sticks or your signal’s got a lot to fight through. This guide dives deep into why this upgrade is a no-brainer, covering four key areas: the main perks of external antennas, how antenna types and MIMO tech shape performance, top picks from MobileMark, Panorama, Poynting, and Taoglas, and the best ways to install them, plus what’s next on the horizon. Get ready to unleash your router’s true 5G power.
What Are the Core Advantages of Equipping Your Router with an External 5G Antenna?
An external 5G antenna is a specialized piece of gear that plugs into your router’s antenna ports, built to grab and boost cellular signals way beyond what internal antennas can manage. By getting the reception outside your building, these antennas blast through obstructions like walls and electronic noise, ensuring a connection that’s consistently reliable. Folks often see up to a 100 percent jump in RSRP and keep a solid SINR, even in busy city centers. This means smoother streaming, faster cloud syncing, and a way better gaming experience. Getting a handle on these benefits is your first step to achieving top-tier 5G performance.
- Rock-Solid Signal Strength and Stability for unwavering performance, even when the network throws a curveball.
- Blazing-Fast Data Speeds and Slashed Latency to rocket your downloads and make interactive apps feel instantaneous.
- Wider Coverage to conquer those dead zones in rural spots, thick-walled buildings, or tough indoor locations.
- Smart Interference Busting by isolating your connection from local RF chatter and physical roadblocks.
These advantages clearly show why an external antenna is the ticket to unlocking five-star 5G performance, setting the stage for a closer look at how signal strength and stability get a major upgrade.
How Does an External 5G Antenna Elevate Your Router’s Signal Strength and Stability?
An external 5G antenna boosts signal strength by positioning a high-gain element to directly face the cell tower, capturing more radio frequency energy and converting it into a stronger electrical signal for your router. This process significantly reduces data packet loss and smooths out connection drops often caused by signal reflections or building attenuation. For instance, a precisely aimed directional antenna from Panorama can improve RSRP by as much as 10 dB, drastically cutting down on retransmissions and jitter. This stabilized reception also ensures consistent SINR values, allowing your router to maintain higher bandwidth even during peak network usage. By harnessing focused radiation patterns, these antennas dramatically improve your router’s link quality, setting the stage for faster data rates.
In What Ways Do External Antennas Supercharge Data Speeds and Slash Latency?
External 5G antennas accelerate data throughput by delivering cleaner, stronger signals to your router’s modem. This allows the modem to utilize more advanced modulation schemes, like 256 QAM, leading to higher data rates. A clearer RF input enables the network to allocate wider channel bandwidth and employ carrier aggregation more effectively, minimizing the need for retransmissions. The result? Users can experience download speeds up to 1.5 Gbps on sub-6 GHz bands and enjoy latency improvements measured in milliseconds, crucial for real-time applications. For example, gaming sessions become noticeably more responsive when the router maintains stable CQI metrics. Enhanced uplink quality also benefits video conferencing and rapid IoT data uploads.
How Do External Antennas Extend 5G Coverage into Difficult Areas?
External antennas extend your 5G reach by capturing signals that internal modules simply can’t penetrate, especially through thick walls, metal structures, or deep rural valleys. In remote industrial settings, a robust antenna like the Poynting XPOL-2-5G, mounted on a mast, can establish reliable connections to cell towers several kilometers away, transforming dead zones into productive connectivity hubs. Urban users often benefit from omni-directional units placed on balconies, aggregating signals from multiple cell sectors and bypassing local interference. This expanded footprint is invaluable for reliable fixed wireless access where fiber isn’t an option, and it supports mobile use cases in RVs, drones, and autonomous vehicles.
Why Is Ensuring Compatibility Between 5G Antennas and Routers Absolutely Crucial?
Compatibility is key to unlocking the full potential of your 5G setup. It ensures that the antenna’s connectors, supported frequency bands, and MIMO configurations perfectly match your router’s specifications from brands like MobileMark, Panorama, Poynting, and Taoglas. A mismatched connector, such as a TS-9 or SMA, can negate any performance gains, and using an antenna that doesn’t support your router’s required mmWave bands will yield no speed improvements. Verifying both mechanical and electrical compatibility prevents wasted investment and guarantees network reliability.
Now that we’ve covered the benefits and compatibility, let’s explore how to choose the right antenna type for your specific needs.
How Do Different Types of 5G Antennas Influence Your Router’s Performance?
The type of antenna—whether directional or omni-directional—dictates how radio frequency energy is focused or dispersed. This directly impacts range, signal stability, and the complexity of installation. Directional antennas concentrate their signal into a narrow beam, offering high gain but requiring precise aiming. Omni-directional antennas capture signals from all directions, simplifying setup at the cost of peak gain. Understanding these trade-offs is essential for matching the antenna’s form factor to your specific use case, whether you’re targeting a distant tower or aggregating signals from multiple urban cells.
Here’s a quick comparison of antenna types and their ideal applications:
| Antenna Type | Radiation Pattern | Ideal Use Case |
|---|---|---|
| Directional | Focused, narrow beam gain | Connecting to distant rural towers miles away |
| Omni-directional | 360° reception across multiple sectors | Urban areas with diverse cell tower signals |
| Panel | Moderate beamwidth for focused reception | Suburban fixed wireless access solutions |
This comparison highlights that directional antennas excel at point-to-point links, while omni-directional antennas are perfect for environments with varied signal directions. Let’s delve into the specific advantages of each type.
What Are the Advantages of Using Directional 5G Antennas for Precise Signal Targeting?
Directional antennas provide significant gain—often between 10–18 dBi—by concentrating reception into a tight beam aimed at a specific cell tower. This enhances link budgets, allowing routers to establish and maintain stable connections with distant macro cells, ensuring consistent RSRP and SINR. They also excel at rejecting interference from signals outside their targeted beam, reducing noise from adjacent sectors. Businesses often deploy Panorama directional antennas to guarantee uninterrupted connectivity for remote monitoring sites. Precise aiming is crucial for maximizing performance, and the resulting link stability directly translates into higher data throughput.
When Is an Omni-directional 5G Antenna the Right Choice for Your Router?
Omni-directional antennas are ideal for dynamic environments or areas with significant signal reflections, where cell tower signals might shift or bounce. Their 360° reception pattern allows them to capture signals from all directions, providing seamless fallback if a primary tower’s signal degrades. RV owners and emergency responders often rely on MobileMark omni-directional antennas to maintain continuous connectivity while on the move. The simplified installation—no aiming required—reduces deployment time and still delivers a respectable 5–8 dBi of gain. This flexibility makes omni-directional antennas perfect for portable and rapidly changing network scenarios.
How Do Antenna Gain (dBi) and Frequency Bands Shape Your 5G Connectivity?
Antenna gain, measured in dBi, and the supported frequency bands are critical factors determining both the strength and versatility of your 5G link. Higher dBi values extend your range and amplify weak signals but typically narrow the antenna’s beamwidth, requiring more precise alignment. The frequency range—whether sub-6 GHz or mmWave—dictates the trade-off between coverage area and potential data capacity. Sub-6 GHz antennas offer broader coverage with moderate throughput, while mmWave antennas deliver incredibly high speeds over shorter distances. Choosing the correct gain and ensuring band compatibility are essential for your router to effectively leverage available network resources.
With a clear understanding of antenna types and specifications, the next crucial element for performance is MIMO technology.
What Role Does MIMO Technology Play in Boosting Your 5G Router’s Performance?
MIMO, which stands for Multiple Input, Multiple Output, significantly enhances data throughput and spectral efficiency by using multiple antenna elements simultaneously to transmit and receive data streams. External 5G antennas supporting 2×2, 4×4, or even more advanced MIMO configurations feed multiple data paths into your router’s radio. This unlocks higher-order modulation schemes and allows for the aggregation of wider channels, ultimately leading to superior real-world speeds. Understanding MIMO fundamentals is key to appreciating why certain antennas deliver such impressive performance gains.
Challenges and Solutions in 5G Antenna Design The antenna, responsible for transmitting and receiving radio waves, is the most critical component of any wireless communication system. Microstrip antennas are widely adopted across numerous applications due to their compact dimensions, light weight, low profile, and ease of fabrication. However, they present inherent limitations such as low radiation efficiency, reduced gain, and restricted bandwidth. Several unresolved problems and significant issues persist. Emerging 5G technology demands specific modifications to conventional antenna design methodologies to achieve high performance, cost-effectiveness, and a planar configuration. This study aims to address the challenges and barriers in 5G antenna design and to identify research gaps within this domain. A review of design consideration, challenges and technologies used in 5G antennas, T Nahar, 2023
How Does 4×4 MIMO Elevate Signal Throughput and Data Speeds?
4×4 MIMO utilizes four transmit and four receive elements to create parallel data streams, potentially quadrupling throughput under optimal conditions. By leveraging spatial multiplexing, your router can split high-capacity channels into independent paths, each carrying separate data. This technique can double or even triple sustained download speeds compared to 2×2 MIMO, particularly on sub-6 GHz bands where coverage is robust. For example, a 4×4 MIMO antenna array from Poynting, when paired with a router like the Zyxel NR5103, can deliver a remarkable 200 percent increase in real-world throughput during testing.
Why Is MIMO Support Essential in External 5G Antennas?
External antennas that don’t support MIMO force your router to rely on its internal antennas, negating the benefits of spatial multiplexing and beamforming. An antenna designed for single-element reception simply cannot feed your router’s full radio capabilities, capping its potential performance. Confirming complete MIMO compatibility maximizes spectral efficiency and future-proofs your connection against upcoming network upgrades.
How Do Advanced MIMO Antennas Conquer Signal Interference?
Advanced MIMO antennas employ sophisticated beamforming and diversity techniques to precisely direct energy toward users while actively nullifying interference from other sources. By dynamically adjusting phase shifts across their elements, these antennas can steer beams and cancel out noise from adjacent cells or devices. This intelligent spatial filtering maintains high SINR values and ensures consistent bandwidth. Consequently, routers can achieve reliable, low-latency connections even in densely populated urban areas with multiple macro cells. This level of stability is crucial for mission-critical IoT applications and high-definition video streaming.
Now that we’ve explored MIMO technology, let’s take a look at the leading solutions from MobileMark, Panorama, Poynting, and Taoglas.
Which Top Brands Deliver the Best 5G Antenna Solutions for Your Router?
A diverse range of manufacturers offers optimized external antennas for 5G routers, each specializing in different applications, from rugged industrial designs to versatile mobile solutions. By evaluating the offerings from MobileMark, Panorama, Poynting, and Taoglas, network architects can select the ideal model to meet specific performance goals, deployment environments, and router compatibility requirements.
| Brand | Specialty | Key Feature |
|---|---|---|
| MobileMark | Mobile and portable applications | Lightweight omni-directional designs |
| Panorama | Fixed wireless and rural coverage solutions | High-gain directional panel antennas |
| Poynting | Multi-sector urban and IoT applications | Cross-polarized dual-band elements |
| Taoglas | High-performance embedded & external | Compact, wideband, and custom solutions |
This comparison provides a clear overview of each brand’s strengths, helping you identify the solutions that best align with your connectivity needs. Next, we’ll examine specific brand portfolios in more detail.
How Do MobileMark Antennas Cater to Both Mobile and Fixed 5G Applications?
MobileMark omni-directional antennas are designed with lightweight composite radomes and versatile mounting options, making them perfect for vehicles, vessels, and temporary installations. Their wide beamwidth and 5–8 dBi gain effectively capture signals from shifting cell towers while in motion. Whether installed on emergency response vehicles or deployed for temporary event connectivity, MobileMark antennas ensure continuous service, supporting everything from VoLTE calls to live video streaming.

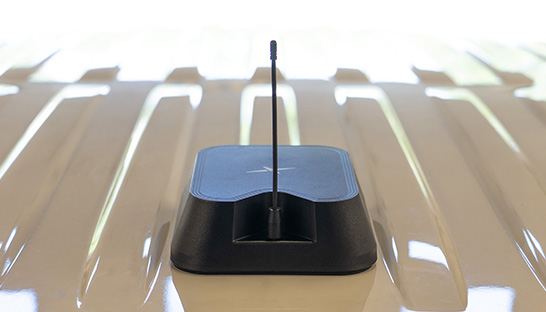

How Do Taoglas Antennas Excel in High-Performance and Custom 5G Applications?
Taoglas is renowned for its high-performance, compact, and custom antenna solutions, catering to a broad spectrum of 5G applications from IoT to enterprise-grade fixed wireless access. Their expertise in designing embedded and external antennas ensures optimal signal integrity and reliability, even in challenging environments. Taoglas antennas often feature wideband capabilities, supporting multiple 5G frequency bands (sub-6 GHz and mmWave) within a single, compact form factor. This makes them ideal for devices requiring robust connectivity in a small footprint, such as industrial IoT gateways, smart city infrastructure, and advanced automotive systems. Their commitment to precision engineering ensures that their antennas deliver consistent gain and efficiency, crucial for maintaining high data throughput and low latency.
Why Are Panorama and Poynting Antennas Renowned for Exceptional Performance?
Panorama’s high-gain directional panel antennas are exceptional for fixed wireless access, enabling robust connectivity in remote areas with limited infrastructure. Poynting’s innovative cross-polarized arrays provide advanced dual-band MIMO reception in complex urban environments, effectively combating multi-path fading and high-density interference. Together, these brands consistently push the boundaries of signal quality and throughput, powering applications like edge computing, smart-city sensors, and high-definition surveillance systems.
What Are the Top External 5G Antennas Compatible with Popular Routers?
Leading 5G routers, including the Netgear Nighthawk M6 Pro and Zyxel NR5103, perform best when paired with specific antenna models. For instance, the Nighthawk M6 Pro can achieve multi-gigabit speeds when equipped with a Poynting XPOL-2-5G, while the Zyxel NR5103 reaches its full 4×4 MIMO potential with Panorama’s directional panel antenna. Taoglas also offers a range of high-performance external antennas, such as the TG.66.0113, which are highly compatible with various enterprise-grade 5G routers, ensuring robust and reliable connectivity. Ensuring that connectors, frequency support, and MIMO configurations are correctly matched is the key to achieving optimized performance.
With your brand and model selection finalized, let’s move on to the practical aspects of installation and optimization.
How Can You Install and Optimize Your External 5G Antenna for Maximum Performance?
Proper installation is critical to ensure that your antenna’s designed gain and beamforming capabilities translate into tangible real-world performance. Key considerations include mounting height, aiming precision, cable quality, and protection against the elements. Adhering to best practices minimizes signal loss and guarantees long-term reliability across all deployment scenarios.
Wideband MIMO Antennas for 5G Applications Implementing a wide bandwidth antenna, however, may be crucial for mobile communication systems supporting 2G, 3G, 4G, and future 5G applications. Numerous studies on 5G wideband antennas have been published as the 5G network enables higher data throughput, enhanced robustness, and reduced power consumption for its extensive user base. MIMO technology has emerged as a key technology for 5G applications due to its advantages, including increased channel capacity and improved transmission performance. Ultra wideband indoor omni-directional 2× 2 MIMO antenna for 2G, 3G, 4G, and 5G applications, 2023
What Are the Best Practices for Antenna Placement and Alignment?
For directional antennas, use a compass or signal analysis tools to precisely aim them toward the nearest 5G cell tower. Mount the antenna at the highest feasible point to minimize obstructions. For omni-directional units, position them above rooftop clutter or balcony railings to ensure a clear line-of-sight in multiple directions. Maintaining a distance of at least 2 meters from large metal surfaces helps prevent signal detuning. Consistent height and orientation are essential for securing stable RSRP and supporting QoS for latency-sensitive traffic.
How Should You Handle Cabling and Weatherproofing for Outdoor Antennas?
Utilize low-loss coaxial cables specifically rated for outdoor use, and keep cable runs under 10 meters to minimize signal attenuation. Seal all connectors meticulously with UV-resistant, self-amalgamating tape or use dedicated IP67-rated glands to prevent moisture ingress. Route cabling through protective conduits or cable trays to shield it from rodents and mechanical wear. Proper cable management is vital for preserving the antenna’s gain and preventing performance degradation over time.
What Troubleshooting Steps Can Resolve Common Signal Issues?
Begin by verifying the integrity of all connectors and retightening SMA or N-type fittings to eliminate any intermittent contact. Consult your router’s web interface to check key signal metrics like RSRP, RSRQ, and SINR, which can help pinpoint weak reception or identify noise sources. Make small adjustments to the antenna’s aim while monitoring changes in CQI and throughput. If issues persist, consider replacing any damaged cables or adapters. Comparing performance with the internal antennas can confirm whether the external setup is providing the expected gains. These diagnostic steps ensure that your optimized installation delivers the desired improvements.
Looking ahead to tomorrow’s technology, let’s explore the exciting emerging trends shaping the future of 5G antenna technology.
What Are the Emerging Trends and Future Innovations in 5G Antenna Technology?
The 5G antenna market is experiencing rapid evolution, fueled by AI-driven network optimization, the explosive growth of IoT devices, and the expansion of private 5G networks. Innovations are increasingly focused on adaptive beamforming, dynamic spectrum sharing, and integrated sensing capabilities to meet the demands of 2025 and beyond. Antenna designers are pushing the envelope with lighter arrays, embedded intelligence, and comprehensive turnkey solutions tailored for smart-city, industrial, and consumer applications.
How Is AI Integration Enhancing 5G Antenna Performance and Network Optimization?
AI-powered antennas are revolutionizing performance by analyzing real-time RF conditions and automatically adjusting beam patterns to maximize SINR and throughput. Machine-learning algorithms can predict potential interference sources and proactively steer beams away from congested sectors. This dynamic adaptation significantly reduces the need for manual tuning and ensures consistent Quality of Service (QoS) for latency-sensitive applications like autonomous vehicles and AR/VR experiences.
What Role Will 5G Antennas Play in IoT, Smart Cities, and Private Networks?
Advanced external antennas will be instrumental in supporting massive IoT deployments by providing dedicated private network coverage for applications such as asset tracking, environmental monitoring, and industrial automation. In smart city initiatives, high-gain panel antennas will enable low-latency connections essential for traffic management, public safety systems, and distributed AI inference at the network edge. Private 5G networks will increasingly rely on modular antenna arrays to ensure reliable connectivity within campuses, manufacturing facilities, and healthcare settings.
What Are the Market Growth Projections and Industry Drivers for 2025 and Beyond?
The global 5G antenna market is projected for substantial growth, driven by factors such as network densification and the burgeoning IoT ecosystem. Increased adoption of private networks—expected to exceed 40 percent of enterprises by 2026—along with advancements in AI-enabled beamforming technologies, are key demand drivers. Regions like North America, Europe, and East Asia are leading current deployments, while emerging markets are increasingly focusing on fixed wireless access as a cost-effective connectivity solution. These powerful drivers ensure that antenna innovation will remain central to the advancement of 5G connectivity for years to come.
External antennas have definitively proven their value in boosting signal strength, increasing data speeds, and extending coverage where internal modules fall short. By carefully matching antenna types and MIMO configurations to router specifications from leading brands like MobileMark, Panorama, Poynting, and Taoglas, network integrators can achieve consistently reliable, high-performance 5G links. Implementing proper installation practices and leveraging emerging AI-driven adaptive beamforming technologies will further enhance connectivity in the years ahead. Explore these powerful antenna solutions today to unlock seamless 5G experiences across every environment
