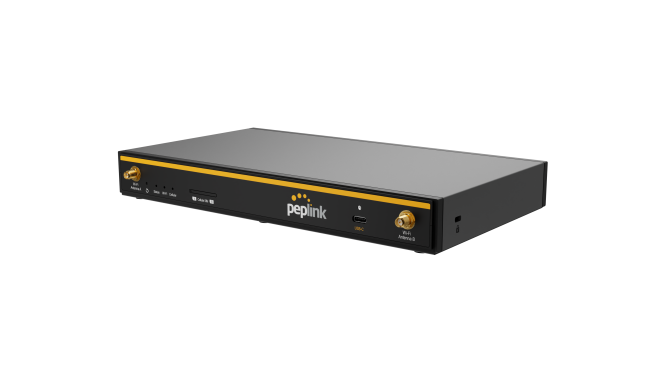

Peplink B One Plus

The Peplink B One Plus is an advanced router designed to meet the connectivity needs of branch offices, retail stores, small businesses, and homes. With a robust set of features including an LTE cellular modem, dual Ethernet WAN ports, four Ethernet LAN ports, and Wi-Fi WAN capabilities, this router offers unparalleled flexibility and reliability. Whether you need to integrate with Starlink, a fixed wireless access technology, or simply leverage your ISP's modem, the Peplink B One Plus ensures a seamless and powerful network performance.

Key Specifications and Features

Highlights

  • Cost-effective Solution: Ensures the most reliable Internet at a low cost.
  • Long-term Support: Highly reliable with built-in cellular modem for redundancy and management applications.
  • Zero-touch Setup: Includes eSIM for easy setup and instant internet connectivity out-of-the-box via SIM or BYO eSIM.
  • Designed for Remote Locations: Reduces the need for site visits with InControl2 and InTouch.
  • Features for multi-WAN environments:
    • Automated Load Balancing:Optimize network performance with advanced load balancing algorithms
    • Traffic Steering: Ensure applications don't stutter by prioritizing important network traffic.
    • SpeedFusion Technology: Hot Failover/ WAN Smoothing/ Bandwidth Bonding - Enhances network performance with PrimeCare warranty plan (1 year included).

Hardware

  • WAN Interface
    • Ethernet: 2x 10/100/1000M Ethernet
    • Cellular: 1x Embedded Cat 4 LTE Cellular Modem with Redundant SIM Slot (4FF Nano)
      • Max Throughput: Downlink 150 Mbps / Uplink 50 Mbps
      • Supported Bands: LTE Bands B2, B4, B5, B12, B13, B14, B66, B71; 3G Bands B2, B4, B5
    • USB-C Interface: For additional connectivity options
  • LAN Interface
    • 4x 10/100/1000M Ethernet
  • Wi-Fi Interface
    • Wi-Fi 6: Simultaneous Dual-Band (2.4GHz / 5GHz), 2x2 MIMO
    • Wi-Fi WAN and/or AP: Flexible wireless connectivity
    • AP Controller: Standard Support: Auto AP Discovery, Firmware Management, Profile Configuration
      • Max AP Supported: 30/50 (50 with add-on license)

Performance

  • Router Throughput: 1Gbps
  • SpeedFusion VPN Throughput: 400 Mbps (No Encryption), 200 Mbps (256-bit AES Encryption)
  • Recommended Users: 1-150

Peplink B One Plus FAQ

Can I manage the Peplink B One Plus remotely?

Yes, you can manage the B One Plus remotely with InControl 2. You may also use the Peplink app if desired. The B One Plus comes with a 1-year subscription to PrimeCare, which includes InControl 2 functionality. You can extend the PrimeCare coverage after the first year at a cost of $49 for 1 year, $98 for 2 years, or $196 for 4 years.

Can I use Starlink with the Peplink B One Plus?

Yes, a Starlink dish can be connected to the Ethernet WAN port with the use of a Starlink Ethernet Adapter.

Can the Peplink B One Plus connect to an OpenVPN server from a commercial VPN provider (ExpressVPN, ProtonVPN, etc)?

Yes. An optional license (LIC-OPN-WAN) will enable the OpenVPN WAN functionality for this purpose.

Does the Peplink B One Plus support Band 71?

Yes. The B One Plus (LTE-US) can use Band 71. Band 71 is a band frequency provided by T-Mobile, it operates at a 600MHz frequency that travels twice as far, and it works 4 times better in buildings than conventional LTE bands.

Does the Peplink B One Plus support FirstNet?

Yes, The B One Plus is FirstNet Ready, providing additional coverage as the situation demands.

Does the Peplink B One Plus support Peplink's SpeedFusion technology or SpeedFusionVPN?

SpeedFusionVPN is included in all products. For the B One Plus, you can utilize the SpeedFusion technology, including Hot Failover, WAN Smoothing, and Bandwidth Bonding, with a PrimeCare or PrimeCare+ subscription. Note that 1 year of PrimeCare is included with the purchase.

How can the Peplink B One Plus connect to the Internet?

The B One Plus has a built-in cellular modem with dual SIM slots. It can connect to the internet with a physical SIM or BYO eSIM provided by the mobile carrier. It can also utilize Ethernet, Wi-Fi WAN, and USB-WAN inputs. The USB port located on the front of the router can be used as a connection point for a USB cellular modem or a Peplink MAX Adapter. Additionally, the USB port can be used in conjunction with a USB-Ethernet adapter to establish a connection with an Ethernet cable.

What is included with the Peplink B One Plus?

1x B One Plus, 2x LTE/5G Antennas, 2x Dual Band Wi-Fi Antennas 1x 12V 3A 4 Pin Power Supply.

What is the power consumption of the Peplink B One Plus?

The maximum power consumption is 17W without USB-C power output for using the USB WAN.

What is the product code/ ordering SKU for the Peplink B One Plus router for use in the U.S.?

B-ONE-PLUS-LTE-US-T-PRM.

What size SIM card does the Peplink B One Plus support?

The Peplink B One Plus requires a 4FF Nano-SIM.

What voltage is required for the Peplink B One Plus?

The router comes with a 12V3A 4-pin power supply. However, you can supply the router with 10-30V via a 4-pin Micro-Fit connector.

Where can I order the Peplink B One Plus router?

You may purchase the Peplink B One Plus at 5Gstore.com.
