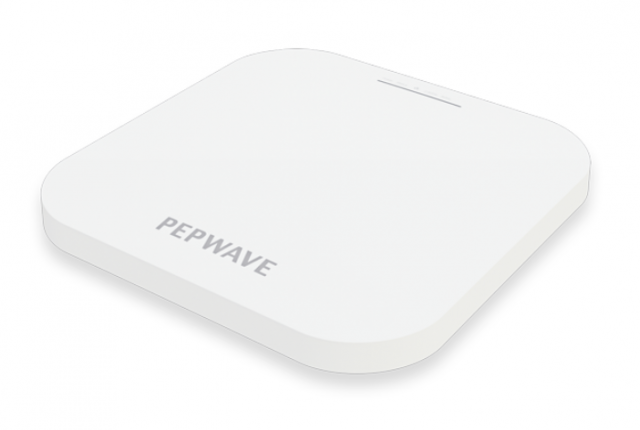

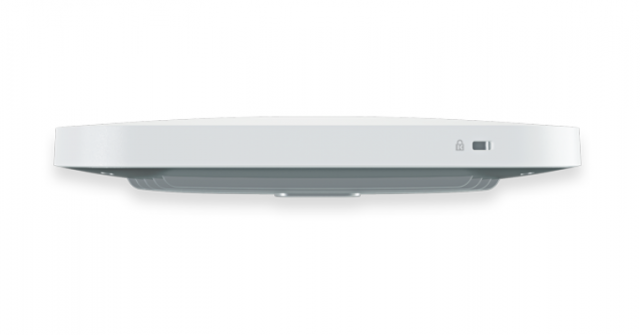

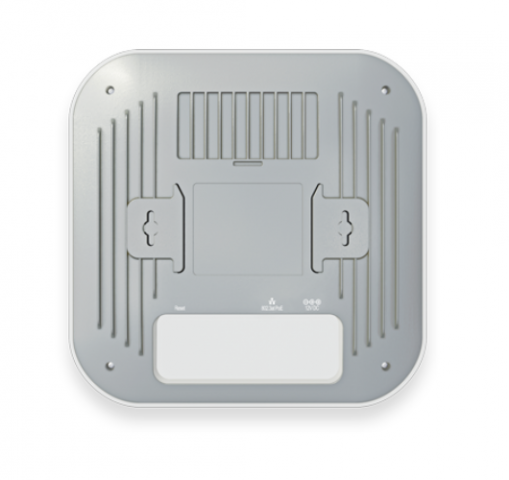

Pepwave AP One AX (Dual Band 4x4 MIMO 802.11ax)

In Stock

Item Number: 10227
Model: APO-AX
Have a large deployment?
Request a Quote



The AP One AX is powered via POE. You will either need a POE injector or POE switch to power it. An injector can be added here if you do not already have one.
Add POE Injector if Needed - details

The Pepwave AP One Enterprise AX is a high-performing connectivity device designed to act as an access point to broadcast Wi-Fi from a router that doesn’t have Wi-Fi, or to add additional range/coverage to an existing Wi-Fi network. It features Simultaneous 802.11ac/ax/b/g/n and 802.11ac/ax/a/n and 4x4 MiMo.

5Gstore is a Peplink Certified PartnerApplications:

  • Enterprise: AP One gives you the perfect combination of enterprise features and affordability. Relying on consumer level gear can mean dealing with frequent reboots and security holes. AP One provides the features you need with enterprise grade reliability.
  • Branch Networking: Whether you have five locations or 500, AP One and InControl make it easy to deploy a seamless wireless network. With Zero-Touch configuration and real-time reporting you can manage a global network from anywhere you have Internet access.
  • Hospitality: AP One makes setting up a login portal for your guests incredibly simple. With InControl you can have all of your APs configured and your portal secured in minutes. AP One also comes with GuestProtect, a set of features designed to keep your network and your guests computers secure.
  • Education: Both students and staff need access to the Internet, though each group has different needs and, in turn, requires a different set of rules and restrictions. AP One's flexible group policy controls allow you to create separate networks to allow all parties to access the Internet with appropriate security policies in place.
  • Home: AP One isn't just for serious business, it’s also the perfect fit for connecting cutting edge home entertainment systems and computers. Now you can have all the reliability and speed of a professional network at home. Whether you have a small home or a large property, AP One and InControl can keep your family and friends connected.


  • Model
    • APO-AX
  • Basic Specs
    • Ethernet Port: 1x 2.5G Ethernet port
    • WiFi Standard
      • Simultaneous 802.11ac/ax/b/g/n and 802.11ac/ax/a/n
      • 4x4 MIMO
    • Data Rates:
      • 2.4GHz: up to 1147 mbps
      • 5GHz: up to 2402 mbps
    • WiFi Transmit Power:
      • 2.4GHz: up to 17dBm
      • 5GHz: up to 17dBm
    • Recommended Concurrent Users Per Radio: 60
    • Number of SSID Per Radio: 16
  • Hardware
    • Antenna Type: Built-in PIFA antenna
    • Antenna Gain: 2~3dBi for 2.4GHz or 5GHz single band
    • Enclosure: Plenum-rated, Indoor Plastic
    • Dimensions: 8.1 x 8.1 x 1.3 inches / 205 x 205 x 32 mm
    • Weight: 1.7 pounds / 785 grams
  • Operations:
    • Power Input: 12V 2.5A DC Connector, 802.3at PoE (Injector not included)
    • Power Consumption: 23W (max.)
    • Operating Temperature: 32° – 104°F / 0° – 40°C
    • Humidity: 15% - 95% (non-condensing)
    • Warranty: 1-Year Limited Warranty

Technical Specifications:

  • Network
    • Bridge Mode
    • Router (NAT) Mode
    • Wireless Distribution System (WDS)
    • Support for PPPoE, Static IP, DHCP
    • Management VLAN (802.1p)
    • Spanning Tree Protocol (802.1d)
  • Radio
    • Multiple SSID
    • Auto Channel Selection
    • Transmit Power Adjustment
    • Neighbor AP Detection
  • AP Security
    • Open
  • Client Managment
    • Per SSID
      • VLAN with QoS (802.1p/802.1q)
      • Bandwidth Control
      • MAC Address Filtering
      • Layer 2 Client Isolation
      • Limit on Max. Number of Client
    • Per Client
      • VLAN with RADIUS
      • VLAN with VLAN Pool
      • Bandwidth Control
      • Multicast Filter
      • IGMP Snooping/Multicast Enhancement
  • Complete VPN Solution
    • PepVPN
      • Site-to-Site VPN
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
      • Dynamic Routing
  • Captive Portal
    • By InControl
  • Device Management
    • Web Administrative Interface
    • InControl Cloud Management
    • Peplink AP Controller
    • SNMP v1, v2c and v3
  • Package Contents
    • AP One Enterprise AX
    • Mounting Bracket
  • Certifications
    • FCC, CE, RoHS

Filter Reviews
   Last 2 Weeks (0)
    71% (5)
    0% (0)
    14% (1)
    14% (1)
    0% (0)
  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (7)

Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 12/17/2021 by Brad. (Pennant, SK)
Swapped out a AP One Enterprise, laptop in the next room went from 200-250Mbit to 500-550Mbit, as long as you keep your expectations reasonable, you should be pleased with it

Date Added: 06/18/2021 by Christopher H. (Wayne, ME)
I really wanted to love this access point. Bottom line is that 5GHz performance is 1/3 of the AC Mini and the power consumption and heat generation is quite high, hot to the touch! The day I received this, it got discontinued at the 5GStore. As a result of this, I am either getting the new "Lite" version or another AC Mini.

Date Added: 05/17/2021 by Chad D. (Kansas City, MO)
Great AP so far!

Date Added: 04/20/2021 by R P. (Sand Springs, OK)
Easy to setup alone...I've purchased a second one for use with a Balance router...nice to setup the AP via the router GUI.

Date Added: 03/26/2021 by Tat W. (Van Nuys, CA)
Excellent Product!

Date Added: 03/23/2021 by Joseph M. (Liberty, ME)
I bought two of these APs to work with my Peplink Balance 30 LTE router, largely to be able to set up VLANs. I ordered the AX to obtain wifi 6 capability, to help "future proof" our system. Prior to this, I simply used two Asus routers in AP mode. While I obtained the VLAN capability and the APs work reasonably well, they are no better than the Asus routers were in terms range, despite being set to max power. Peplink also doesn't do a great job of helping to prevent channel overlap between multiple APs. And finally, these APs (or the Balance 30 LTE) take a very long time for a configuration change to be picked up by the APs themselves, and often require a complete reboot of the AP for it to occur. That can't be done easily when you don't have physical access to the AP or router. So, overall, these are expensive APs that offer only marginal improvement over less expensive choice, with still retaining some the Peplink problems with AP Controller/Configuration. It works, but it's not great, and not worth the price charged, IMO.

Date Added: 10/30/2020 by Brad S. (Ankeny, IA)
Great product with WiFi 6.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

Is the Pepwave AP One AX compatible with the Pepwave SoHo MK3 router?

Yes, this AP will work with the Pepwave SoHo MK3 router, but unlike some of the Peplink Balance and Pepwave MAX routers, it does not support the AP Controller function. This just means you will have to log into its own web administration page to configure its settings.
