Cradlepoint NetCloud Essentials + Advanced for SOHO with E100 Cat 4 LTE Router - 5 Years

70 Support Docs
In Stock
Item Number: 10450
Model: BHA5-0100C4D-NN
Quantity:

Price:

$1,887.00

Cradlepoint Offers an optional Battery Pack for Cradlepoint E100 Router. Estimated Run Time for E100 Router: Single Battery: Up to 8 hours Dual Batteries: Up to 16 hours.
Optional Battery Pack: - details
Related Products more...
Battery Pack for Cradlepoint E100 Router
$149.00
$99.00
Cradlepoint NetCloud Essentials for SOHO - E100 Cat 4 - 3 Yr
$1,179.00
Cradlepoint NetCloud Essentials for IoT - IBR600C Cat 4 - 5 Yr
$649.00

The E100 Essentials + Advanced Solutions package includes the E100-150M router and support for 5 years:

  • NetCloud Software + Netcloud Advanced Plan (NetCloud Manager, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

The Cradlepoint NetCloud Service for SOHO with the E100 Router is ideally suited for enabling mission-critical employees to work from home or outside the office with the same services, security, and ease of management. The portable, compact form factor includes full-featured routing, security, traffic shaping, and Wi-Fi, making it easy to connect and maintain connectivity to the Internet for supporting crucial business applications. The embedded LTE modem means that reliable, private connectivity is always available from day 1 without waiting for a wired connection and without having to depend upon consumer-class, underlying networking conditions.

Power for up to 8 hours with the E100 battery pack (sold separately); up to 16 hours with two batteries.

Router Features:

  • Internet Connections Supported: 1 Embedded Cat 4 LTE, 5 Wired WAN
  • Networks Supported for Embedded Modem: LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 – AWS 3 (1700/2100 MHz), Band 71 (600 MHz); WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • WiFi Standard: 2x2 MU-MIMO 802.11ac Wi-Fi 5
  • WiFi Range: 300-400' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)
  • Ethernet ports: 5 configurable GbE WAN/LAN
  • Size: 5.3 × 10.6 × 1.9 in
e100-data-sheet(10449).pdf
e100-product-brief(10449)(1).pdf
e100-product-brief(10449).pdf
ibr600c-data-sheet(7458).pdf



Features:

  • Embedded 150/50 Mbps Category 4 modem
  • Extend office networking capabilities to critical remote employees without compromising security or reliability.
  • Access the network or applications with an embedded LTE modem for fast, secure connectivity in the home, vacation home, or on the road.
  • Integrate into your existing network with standards- based, dynamic routing, traffic-shaping and VPN tunnel support.
  • Define policies through centralized, cloud-based management for easy deployment at scale.
  • Use zero-touch deployment with pre-configured router and pre-inserted SIM to speed installation.
  • Segment and isolate work devices — computers, printers, and more — from household network and devices.
  • Expand working radius with secure, enterprise class Wi-Fi.

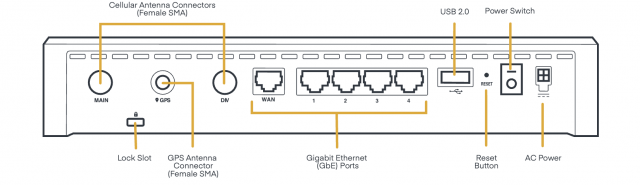

Hardware Specifications

  • Interfaces:
    • Modem: Embedded C4D modem
    • Ethernet: 5 x GbE RJ45 (LAN/WAN switchable)
    • WiFi: Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
      • 2x2 MU-MIMO 802.11ac Wi-Fi 5
      • 300 Mbps (2.4 GHz) and 867 Mbps (5 GHz)
      • Internal 2x2 antenna
      • WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
      • 802.11k, 802.11v
    • Expansion: 1 x USB 2.0 Type A (output: 5V, 500mA, 2.5W)
    • GNSS/GPS: 1 x SMA GNSS antenna connector
  • Environmental:
    • Temperature:
      • Operating: 0 °C to 40 °C (32 °F to 104 °F)
      • Storage: -20 °C to 70 °C (-4 °F to 158 °F)
    • Humidity:
      • Operating: 10% to 90%
      • Storage: 5% to 95%
  • Power:
    • Power required: Powered by external DC power supply, 100-240 VAC input, 12 VDC 2A output (included)
    • Power Backup: Up to 2 optional backup batteries (sold separately)
  • Physical:

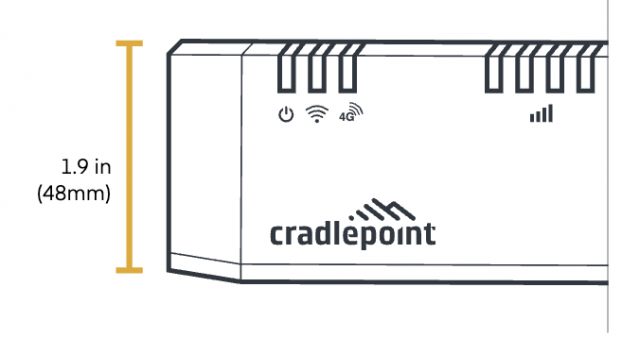

    • Size: 5.3 × 10.6 × 1.9 in (135 × 270 × 48 mm)
    • Weight: 1 lb 8 oz (.68 kg)
  • Certifications:
    • Safety: UL/CUL, CB Scheme, EN60950-1, EN 62368
    • Materials: RoHS, California Prop 65
  • WiFi Power:
    • FCC:
      • 2.4 GHz: 29.4 dBm EIRP
      • 5150–5250 MHz: 29.85 dBm EIRP
      • 5745–5850 MHz: 29.91 dBm EIRP
    • IC:
      • 2.4 GHz: 29.4 dBm EIRP
      • 5150–5250 MHz: 25.46 dBm EIRP
      • 5745–5850 MHz: 29.91 dBm EIRP

Modem Specifications:

  • Technology: LTE Cat 4 (3GPP Rel 11), DC-HSPA+
  • Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps* (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps* (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 – AWS 3 (1700/2100 MHz), Band 71 (600 MHz)
    • WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • Power: LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1; (typical conducted)
  • Antennas: SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (qty 2. included)
  • GPS/GNSS: passive, dedicated SMA port (multi-constellation - GPS, GLONASS)
  • Industry Standards & Certs: FCC, IC, PTCRB, WiFi Alliance (IBR600C only), AT&T, FirstNet Ready, Verizon, Verizon NEMO/DMNR for Primary Wireless Access
  • SIM: two 2FF slots

What's in the box:

  • E100 router
  • External LTE antennas (2 SMA)
  • 12 VDC 2A power adapter
  • Quick Start Guide with warranty information
