Wilson Pro 710i Amplifier for Band 71 (for Professional Installers) - 460064

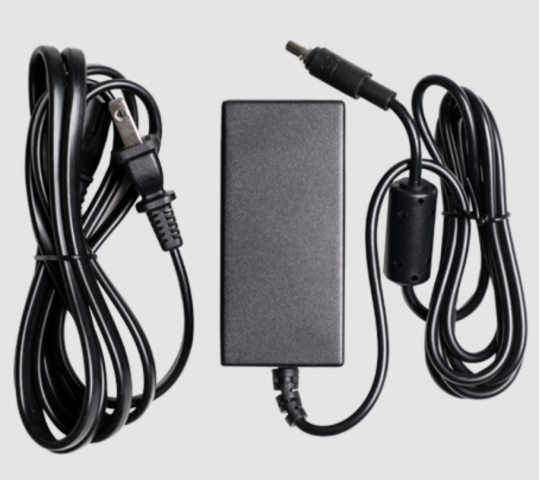

  • Wilson Pro 710i Amplifier for Band 71 (for Professional Installers) - AC/DC 12V/3A Power Supply

Wilson Pro 710i Amplifier for Band 71 (for Professional Installers)

Call for Availability

Item Number: 11326
Model: 460064

Contact Us For Pricing

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This amplifier is NOT for consumer use. It must be installed by professionally trained installers and is not suitable for home/DIY.

While professional installation on this kit is not required, it is highly recommended to ensure the best results.

The WilsonPro Pro 710i is engineered exclusively to enhance Band 71 (600MHz) indoor cell signal coverage1. Band 71 is the low-frequency spectrum of 5G popularized in the US by T-Mobile in its nationwide 5G rollout to 1,200+ cities and rural areas. Offered only as an amplifier and power supply, it can be added to an existing WilsonPro solution needing added 5G Band 71 support, or can also be used as part of a standalone system supporting only Band 71.

Once installed*, the Pro 710i is capable of providing up to 100,000** sq. ft. of enhanced 5G and LTE signal coverage for Band 71 (600MHz).

*The Pro 710i requires CARRIER APPROVAL to install. To gain carrier approval to use the Pro 710i on the Band 71 spectrum, you will need to contact your regional Band 71 carrier.

Antennas are not included with this amplifier. Two antennas (external and rebroadcasting) that support band 71 are required, as well as all necessary cables.

**Depending on outside signal conditions.



Features:

  • Band 71 (single band) cellular signal amplifier
  • Certified under FCC “Industrial” amplifier rules
  • Approval is required by applicable “Band 71” carrier
  • Covers up to 100k ft2 with strong outside signal
  • Installs ‘stand-alone’ or in parallel with an existing WilsonPro system Shares the same consistent WilsonPro ”look and feel”
  •  Amp and power supply only; not a kit purchase
  • Pro 710i is also compatible with 4G / LTE signal
  • Available with 50 Ohm N-type connectors only
  • Pro 710i can be added to any existing WilsonPro system

Specifications:

  • Model: 460064
  • Frequency:
    • Band 71 600MHz
  • Max Gain: 90 dB
  • Max Uplink Power: 25 dBm
  • Max Downlink Power: 25 dBm
  • Impedance: 50 ohm
  • Power Requirements: 110 - 240 V AC, 50 - 60 Hz, 30 W
  • Connectors: N-female
  • Dimensions: 10.37 x 9.06 x 3 in (amplifier)
  • Weight: 6.375 lbs (amplifier)
