WilsonPro 5G Cellular Network Scanner(Hard Case) - 910060

In Stock

Item Number: 13141
Model: 910060



5-Year Manufacturer's Guarantee, Certified Training, Assembled in the USA, and Superior Support when purchasing WilsonPro Products!

With the Cellular Network Scanner 5G from WilsonPro you can easily obtain an accurate, comprehensive cell signal scan. Designed for the future of 5G, the scanner quickly identifies nearby towers, different local carrier networks, and the strength and quality of different frequencies.

The scanner detects and analyzes low band frequencies and frequencies of C-Band and CBRS signals using either LTE or 5GNR modulation. Use the scanner to optimize the design and installation of a cellular repeater solution, from the planning phase to testing the completed system.

For ease of use, the scanner pairs with the Cell LinQ app from WilsonPro for simple access to your data. The scanner stores the data in the cloud, with options for exporting it into an Excel file.

Signal Detail:

Select any tower to display:

  • Signal Quality
  • Carrier Band
  • DL Frequency and more!

Project Management:

  • Customize, organize, and save all of your installs to the cloud for safekeeping.

Project Export:

  • Easily Export your system design projects as .csv files for use in Excel.

Key Features:

  • Scans all carriers regardless of the carrier phone running the app
  • Provides comprehensive scanning of 4/5/12/13/14/25/66/71/77, and 48 frequency bands
  • Scans 5G, including C-Band CBRS, signals
  • Identifies 5GNR signals
  • Backward compatible with 4G (LTE)
  • Identifies individual carriers and towers
  • Effortless reporting of 5G SA and NSA signals
  • Offers details on the location, tower ID, distance to tower, and more
  • Pinpoints active carriers and geo-maps any active cells within range
  • Captures all scan results, including time stamps for A/B comparisons
  • Links via Bluetooth to iOS or Android with the Cell LinQ app from WilsonPro
  • Exports data as .csv files for easy use in Excel


  • Model: 910060
  • Antenna Connector: SMA
  • Antenna Impedance: 50 ohms
  • Case Dimensions: 12.75 L x 4.25 W x 9.25 H
  • Case Weight: 3.3lbs
    • Scanner Dimensions: 72mm x 144mm x 18mm
    • Scanner Weight: 6.2 oz
  • Maximum Input Power: 24dBm
  • Sensitivity: -103.0cBm
  • Charging Input: 1.5A @5V
  • Battery Cell Type: Polymer lithium-ion
  • Battery Weight: Approx 46g
  • Number of Batteries: 1
  • Number of Lithium-ion Cells: Single-cell
  • Lithium Battery Energy Content: 2500mAh
  • Is this a rechargeable Battery: Yes

What's Included:

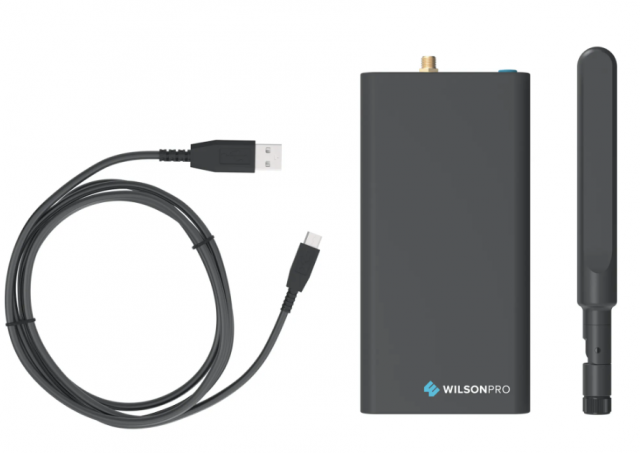

  • 5G Cellular Network Scanner(910060)

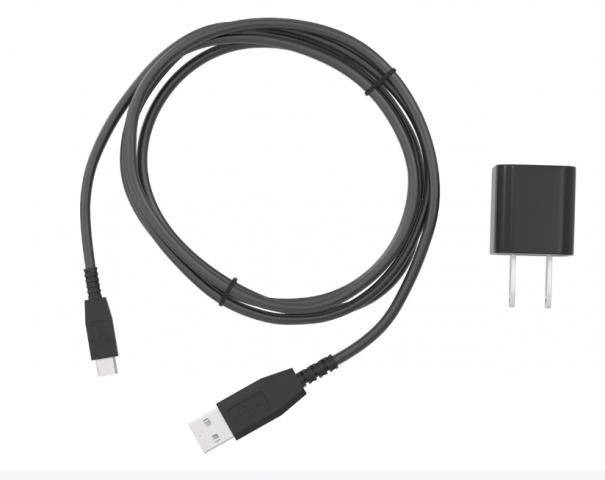

  • USB-A Charger
  • USB-A to USB-C Charging Cable

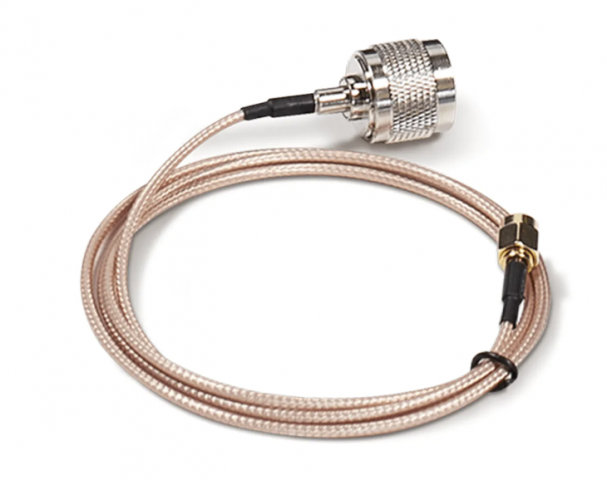

  • SMA-N-Male 3-foot Jumper

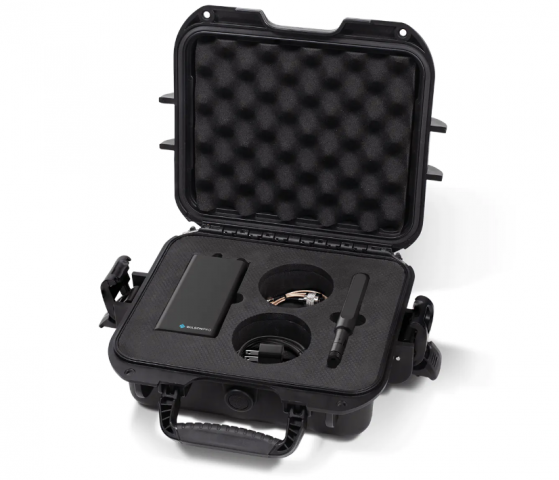

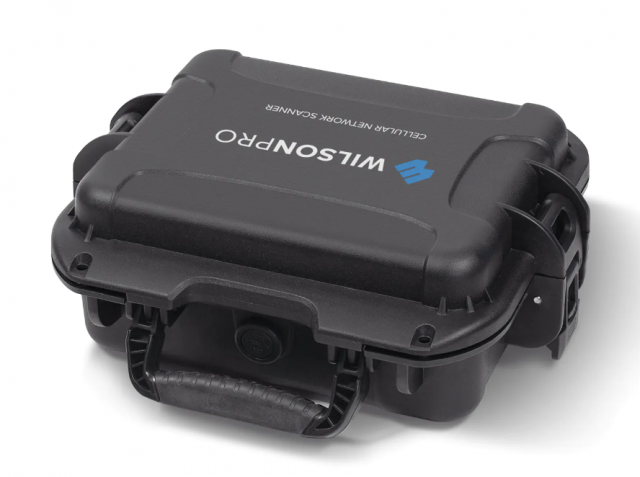

  • Carrying Case

There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

We recommend downloading the User Guide (pdf) before ordering.
