This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

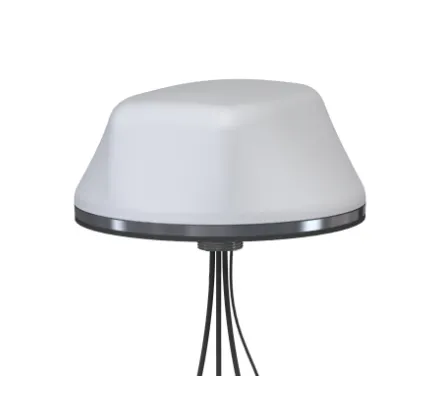

The 4-cable LTMG402 contains elements for two Cellular, one WiFi, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Global LTE Cellular. This antenna is ideal for fleet management systems that combine GNSS with a broadband LTE MIMO modem. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou. This antenna is recommended as a replacement for the LTM401 and LTMG401 due to its wider cellular bandwidth.
Frequency & Gain
- LTE Cables 1 & 2: 694 - 960 MHz, 3 dBi 1710 - 3700 MHz, 4 dBi
- WiFi Cable 3 2.4-2.5 & 4.9-6.0 GHz, 5 dBi
- GNSS Cable 4 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi (RHCP)
