7-in-1 Guardian Multi-Mount Antenna (SMA Connectors and 2m Cables) - MA997.A.003

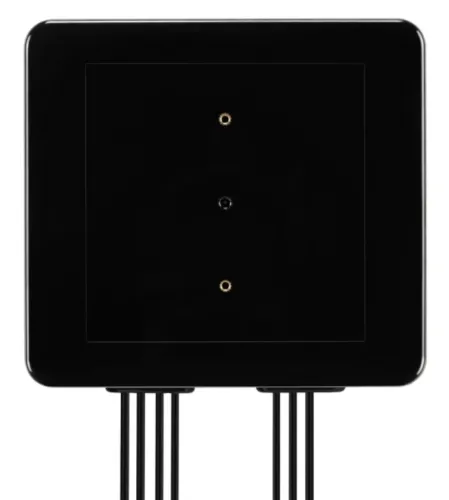

  • 7-in-1 Guardian Multi-Mount Antenna (SMA Connectors and 2m Cables) - Back view

7-in-1 Guardian Multi-Mount Antenna with SMA Connectors and 2m Cables (4x 4G/5G, 2x WiFi, 1x Multi-Band GNSS)

Call for Availability
Item Number: 20133
Model: MA997.A.003
Quantity:

Price:

$307.80

Sale Price:

$230.85

You Save:

$76.95

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Guardian 7in1 Multi-Mount 1x Multi-Band GNSS, 4x 5G/4G MIMO and 2x Wi-Fi MIMO

The Taoglas MA997 Guardian Series has been designed to be the smallest, high-performance combination panel antenna in the world. The heavy-duty, IP67 rated, external enclosure combines all 7 antenna elements in a low profile, compact form. The Guardian combines 1x GNSS, 4x 5G/4G Cellular antennas and 2x Wi-Fi 6 antennas making it compatible with the next generation of modules and routers.

The MA997 has been designed as a low-profile solution for IoT and Automotive applications where space is at a premium allowing it to be installed in the headliners of vehicles or on the back window of a vehicle. The Guardian series is an ideal external combination antenna solution that can be used where drilling a hole through the roof of a vehicle or a metal panel for an external antenna is not feasible or desired.

Typical applications include:

  • Passenger Bus and Rail Applications
  • Automotive and Heavy Equipment
  • Vehicle Tracking and Telematics
  • First Responder and Emergency Services
  • HPUE applications such as Public Safety Communications and Critical Infrastructure and Utilities

The Guardian can be adhesive, or wall mounted as standard. The adhesive pad and wall bracket are included in the product packaging. Pole and desk mount option are also available as separate kits.



Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Velcro/Adhesive
Antenna Color Black
Length (in) 5.7
Width (in) 5.4
Height (in) 0.8
Weight (lb) 1.8
Maximum Gain 7.4
Impedance Ω (Input/Output) 50
Cable Length (in) 78
Cable Type TGC-302 (WiFi and Cellular) and RG-174 (GNSS)
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material ASA
VSWR (Voltage Standing Wave Radio) 0
