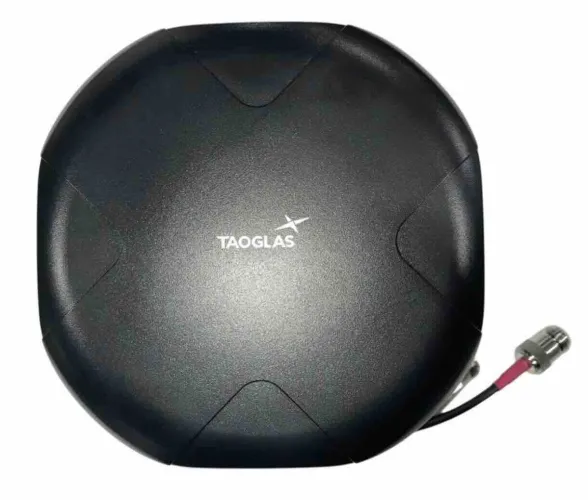

Taoglas TGX.45.A.BI.22 Wideband 2x2 5G/4G MiMO Antenna
The Taoglas TGX.45 Series is a 2-in-1, 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 400 to 6000MHz. This series uses up to two dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receive signal levels, leading to better coverage and performance, especially in urban environments. It is designed for multiple mounting options to allow for a variety of use cases such as wall, pole, and suction cup.
This unique series is tuned for great performance at the recently established 5GNR bands between 3300 - 4200MHz and covers Band 71 (617MHz) at the lower end of the 5GNR frequency spectrum. High efficiency and good gain are achievable at each band on all MIMO antennas. The cross polarized antennas' layout also enhances MIMO performance capabilities, thus improving signal quality.
Combining Fully 5G/4G cellular operational, and an incredibly compact enclosure with a fully IP65 rated waterproof, The TGX.45 Series is the right powerful, compact combination antenna for your application.
Typical Applications Include:
- Fixed Wireless Access
- In Building Connectivity
- Passenger Rail and Buses
FEATURES

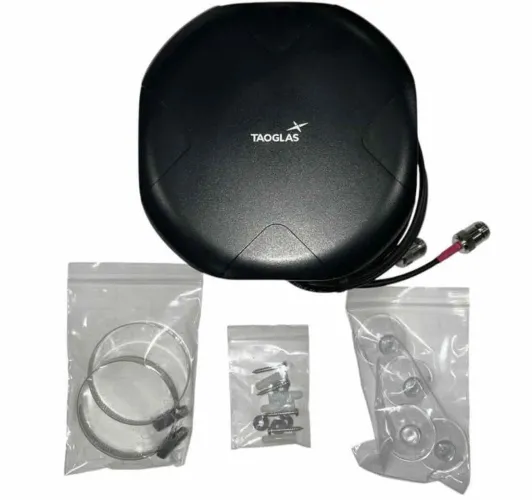

- Low-profile Permanent Mount Enclosure
- Up to 2 5G MIMO Antennas in one enclosure
- Capability to cover 5G/4G MIMO 400-6000MHz
- IP65 Waterproof Enclosure
- Dimensions: 164.91mm x 164.91mm x 98.46mm
- RoHS & Reach Compliant
