Peplink BR2 Rugged Dual Cellular Cat-7 | eSIM and SpeedFusion Rugged, Dual-Cellular Router for Reliable Remote & Mobile Applications The Peplink BR2 is a rugged, dual-cellular router designed to provide the most reliable connectivity for remote and mobile applications. With its built-in dual-cellular modems and external WAN options, it ensures unbreakable connectivity in the most challenging environments. Key Features Built-in eSIM: The BR2 comes with a built-in eSIM and remote SIM configuration capabilities, allowing for zero-truck-roll provisioning, configuration, and management. This makes it ideal for truly remote and industrial applications. Central Management: Manage and configure all devices in your network remotely with Peplink's InControl and InTouch systems. No pre-staging configurations are necessary. Advanced SpeedFusion Technology: SpeedFusion seamlessly bonds multiple Internet connections into a single, more reliable feed, ensuring zero interruption. It supports Hot Failover, Bandwidth Bonding, and Smoothing technologies. Flexible Power Options: The BR2 supports multiple power inputs including AC adapter, terminal block power connector (12V-30V DC), and Power over Ethernet (PoE 802.3at). It is also equipped with a Micro-Fit Connector Power Port for various power sources. Durable Design: Encased in a ruggedized metal enclosure, the BR2 is built to withstand harsh environments. It operates in a wide temperature range of -40°F to 149°F (-40°C to 65°C) and 15% to 95% humidity (non-condensing). Specifications WAN Interface: 1x 10/100/1000M Ethernet, 2x Embedded Cellular Modems with Redundant SIM Slots, 1x USB Interface LAN Interface: 4x 10/100/1000M Ethernet Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, Wi-Fi WAN and/or AP SpeedFusion VPN Throughput: Up to 300Mbps without encryption, 80Mbps with 256-bit AES encryption Cellular Frequency Support : LTE Bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71; 3G Bands: B2, B4, B5 Cellular Data Rate: Up to 150Mbps downlink / 50Mbps uplink (theoretical maximum) US Carrier Certifications : AT&T, T-Mobile, Verizon, FirstNet Antenna Connectors: 4x SMA Cellular, 2x RP-SMA Wi-Fi, 1x SMA GPS Dimensions & Weight: 6.89 x 5.12 x 1.61 inches (175mm x 130mm x 41mm), 2.43 pounds (1.1 kg) Package Contents 1x BR2 4x LTE Antennas (ACW-237) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply Accessories 10ft DC Power Cable (ACW-634) Peplink 4-pin to USB-C power cable (ACW-791) Vehicle Cigarette to Molex Power Cable (ACW-643) Warranty 1-Year Limited Warranty (PrimeCare subscription required for certain features, complimentary for the first year) The Peplink BR2 is a cost-effective solution for massive deployments, ensuring reliable and flexible connectivity in any environment. Whether for point-of-sale systems, vending machines, ATMs, or remote industrial applications, the BR2 provides unparalleled performance and manageability. MAX-BR2-LTEA-US-T-PRM MAX-BR2-LTEA-US-T-PRM

Peplink

Router

$ $699.00 https://5gstore.com/product/20230_peplink_br2_rugged_dual_cellular_cat7_esim_and_speedfusion.html

Rugged, Dual-Cellular Router for Reliable Remote & Mobile Applications

The Peplink BR2 is a rugged, dual-cellular router designed to provide the most reliable connectivity for remote and mobile applications. With its built-in dual-cellular modems and external WAN options, it ensures unbreakable connectivity in the most challenging environments.

Key Features

Built-in eSIM: The BR2 comes with a built-in eSIM and remote SIM configuration capabilities, allowing for zero-truck-roll provisioning, configuration, and management. This makes it ideal for truly remote and industrial applications.
Central Management: Manage and configure all devices in your network remotely with Peplink's InControl and InTouch systems. No pre-staging configurations are necessary.
Advanced SpeedFusion Technology: SpeedFusion seamlessly bonds multiple Internet connections into a single, more reliable feed, ensuring zero interruption. It supports Hot Failover, Bandwidth Bonding, and Smoothing technologies.

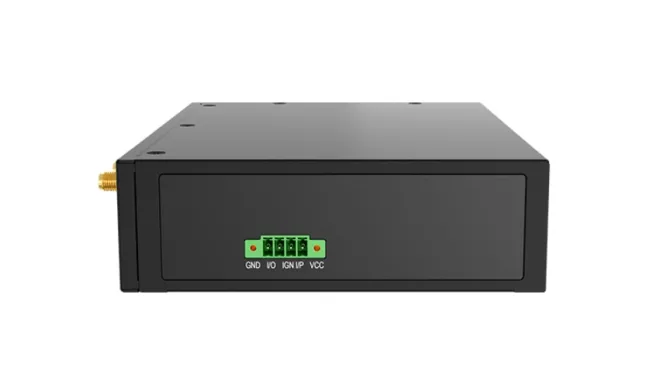

Flexible Power Options: The BR2 supports multiple power inputs including AC adapter, terminal block power connector (12V-30V DC), and Power over Ethernet (PoE 802.3at). It is also equipped with a Micro-Fit Connector Power Port for various power sources.
Durable Design: Encased in a ruggedized metal enclosure, the BR2 is built to withstand harsh environments. It operates in a wide temperature range of -40°F to 149°F (-40°C to 65°C) and 15% to 95% humidity (non-condensing).

Specifications

WAN Interface: 1x 10/100/1000M Ethernet, 2x Embedded Cellular Modems with Redundant SIM Slots, 1x USB Interface
LAN Interface: 4x 10/100/1000M Ethernet
Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5, 2x2 MIMO, Wi-Fi WAN and/or AP
SpeedFusion VPN Throughput: Up to 300Mbps without encryption, 80Mbps with 256-bit AES encryption
Cellular Frequency Support: LTE Bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71; 3G Bands: B2, B4, B5
Cellular Data Rate: Up to 150Mbps downlink / 50Mbps uplink (theoretical maximum)
US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet
Antenna Connectors: 4x SMA Cellular, 2x RP-SMA Wi-Fi, 1x SMA GPS
Dimensions & Weight: 6.89 x 5.12 x 1.61 inches (175mm x 130mm x 41mm), 2.43 pounds (1.1 kg)

Package Contents

1x BR2
4x LTE Antennas (ACW-237)
2x Dual Band Wi-Fi Antennas (ACW-342)
1x GPS Active Antenna (ACW-232)
1x 12V 2A 4pin Power Supply

Accessories

10ft DC Power Cable (ACW-634)
Peplink 4-pin to USB-C power cable (ACW-791)
Vehicle Cigarette to Molex Power Cable (ACW-643)

Warranty

1-Year Limited Warranty (PrimeCare subscription required for certain features, complimentary for the first year)

The Peplink BR2 is a cost-effective solution for massive deployments, ensuring reliable and flexible connectivity in any environment. Whether for point-of-sale systems, vending machines, ATMs, or remote industrial applications, the BR2 provides unparalleled performance and manageability.

Latest Blog Posts About This Product

Latest YouTube Videos About This Product

Popular Comparisons

peplink_br2_datasheet(20230).pdf

Specifications:

No. of Cellular Connectors	4
No. of WiFi Connectors	2
No. of GPS Connectors	1
Cellular Connector	SMA Female
WiFi Connector	RP-SMA Female
GPS Connector	SMA Female
No. of LAN Ports	4
No. of WAN Ports	1
No. of Fiber (SFP) Ports	0
No. of Serial Ports	0
No. of Embedded Modems	2
Ports Configurable as LAN/WAN	No
USB Port	WAN
WAN Throughput Speed	300 Mbps
SIM Card Size	4FF
Length (in)	6.89
Width (in)	5.12
Height (in)	1.61
Weight (lb)	2.43
Minimum Temperature (F)	-40
Maximum Temperature (F)	149
Material	Metal
Antennas Included	Yes
Modem Expansion Slot	No
Modem Replaceable	No
FIPS Certified	No
WiFi Support	WiFi 5
Cloud Management Included	Yes
Power Input	Power Port: 12V – 30VDC AC: AC Input 100V–240V/ DC Output 12V Terminal: 12V – 30VDC PoE 802.3a
Bluetooth	No
Bonding Support	Yes
IP Passthrough	No
