This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

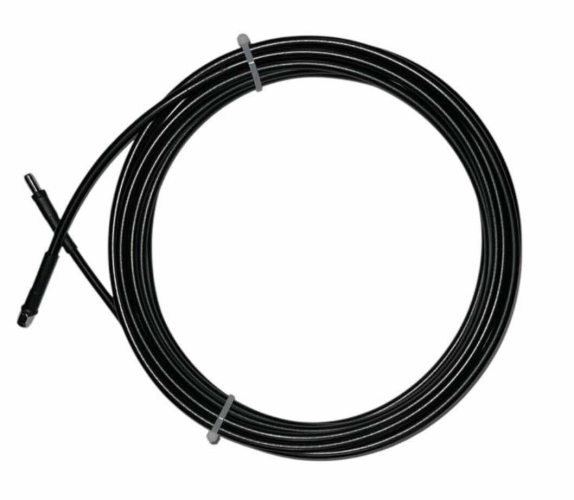

Introducing our 20' Low Loss SMA Extension Cable: the ideal solution for extending cellular antenna cables with SMA Male terminations. Engineered with precision and durability in mind, this cable ensures reliable signal transmission over long distances.

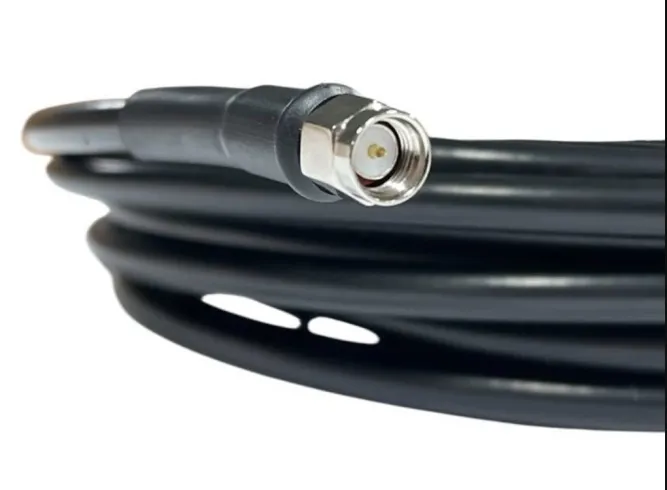

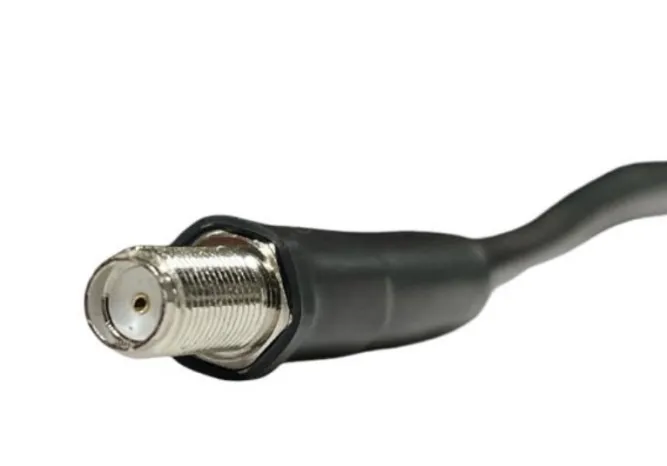

Featuring an SMA/Male connector on one end and an SMA/Female connector on the other, it seamlessly connects to your existing setup without hassle. The cable's robust construction guarantees exceptional performance even in challenging environments.
With a cable diameter of 5.9mm (0.23in) and an impedance of 50 ohms, this cable is designed to meet the demands of modern cellular systems. Its low signal loss design ensures minimal attenuation, maintaining strong and stable connections.
Here are the specifications at a glance
- Cable length: 20'
- Connectors: SMA/Male and SMA/Female
- Cable diameter: 5.9mm (0.23in)
- Impedance: 50 ohms
Signal Loss
- 700MHz: 1.2dB
- 800MHz: 1.3dB
- 1700MHz: 1.8dB
- 1900MHz: 1.9dB
- 2100MHz: 2.1dB
- 2400MHz: 2.2dB
- 2500MHz: 2.3dB
Upgrade your cellular setup with confidence using our 20' Low Loss SMA Extension Cable. Experience enhanced connectivity and flexibility for your networking needs.
