WALL DESK MOUNT 6x6 4G/5G ANT 5m SMA(m) - DWMM6-6-60-5SP

WALL DESK MOUNT 6x6 4G/5G ANT 5m SMA(m)

Call for Availability

Item Number: 20521
Model: DWMM6-6-60-5SP

Quantity:

Have a large deployment?
Request a Quote

Price:

$650.00

General

Details

Customer Reviews

Q & A

Support

Photos & Videos

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

WALL DESK MOUNT 6x6 4G/5G ANT 5m SMA(m) Great Hammerhead™ | 3x 2×2 4G/5G Wall/Mast Mount Omni Directional MiMo Antenna The DWMM6-6-60-5SP antenna provides a 3x 2×2 MiMo omnidirectional antenna solution for global 4G/5G networks covering 617-6000MHz. It features eight separately fed ultra-wideband elements in a single housing and is suitable for a wide range of fixed-site branch office and enterprise failover applications using dual modems. The mounting bracket enables mast mounting using the supplied clamp assembly or it can be wall-mounted using the supplied screws and wall plugs. The antenna can be fitted directly to non-conductive panels or internal walls and mounting feet are supplied to allow it to be stood on a desk or window sill. The omni-directional radiation pattern allows easy placement of the antenna without consideration of directional alignment and makes it ideal where access to multiple network sites is required. The antenna has integral flame retardant coaxial cables, which eliminate or reduce exposed connector joints and simplify installation. DWMM6-6-60-5SP DWMM6-6-60-5SP

Panorama

Antenna

$ $650.00 https://5gstore.com/product/20521_wall_desk_mount_6x6_4g5g_ant_5m_smam

Great Hammerhead™ | 3x 2×2 4G/5G Wall/Mast Mount Omni Directional MiMo Antenna

The DWMM6-6-60-5SP antenna provides a 3x 2×2 MiMo omnidirectional antenna solution for global 4G/5G networks covering 617-6000MHz. It features eight separately fed ultra-wideband elements in a single housing and is suitable for a wide range of fixed-site branch office and enterprise failover applications using dual modems.

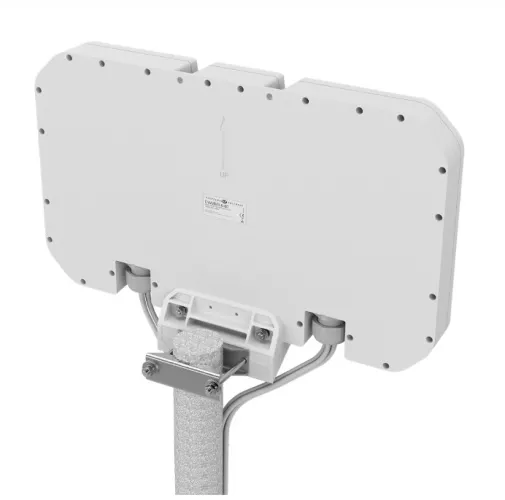

The mounting bracket enables mast mounting using the supplied clamp assembly or it can be wall-mounted using the supplied screws and wall plugs. The antenna can be fitted directly to non-conductive panels or internal walls and mounting feet are supplied to allow it to be stood on a desk or window sill.

The omni-directional radiation pattern allows easy placement of the antenna without consideration of directional alignment and makes it ideal where access to multiple network sites is required.

The antenna has integral flame retardant coaxial cables, which eliminate or reduce exposed connector joints and simplify installation.

DWMM6X_6_60_Datasheet(20755).pdf

Specifications:

No. of Cellular Connectors	6
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Multi
Antenna Color	White
Length (in)	17.4
Width (in)	1.9
Height (in)	10.3
Weight (lb)	13
Maximum Gain	6
Impedance Ω (Input/Output)	50
Cable Length (in)	196
Cable Type	CS32
Minimum Temperature (F)	-40
Maximum Temperature (F)	185
Material	ASA -UL 746C F1, UL 94-HB
VSWR (Voltage Standing Wave Radio)	<2.5:1
