Great Hammerhead™ DWMM8[X]-6-60-[X] 2x 4x4 MiMo 4G/5G OmniDirectional Antenna with L1 GPS/GNSS

The DWMM8G-6-60-5SP antenna provides a 2x 4x4 MiMo omnidirectional antenna solution for global 4G/5G networks covering 617-6000MHz. It features eight separately fed ultra-wideband elements in a single housing and is suitable for a wide range of fixed-site branch office and enterprise failover applications using dual modems.

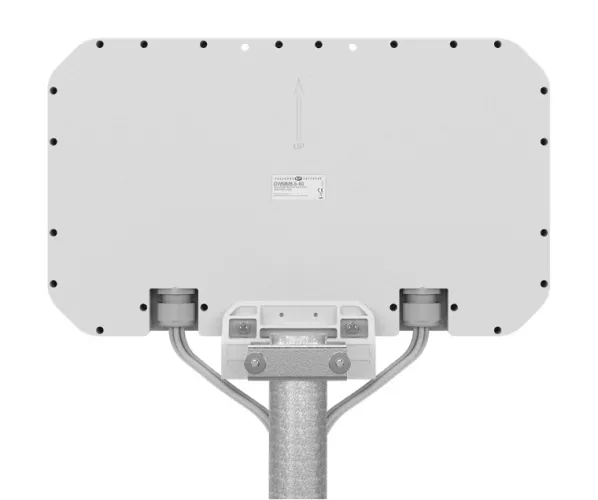

The mounting bracket enables mast mounting using the supplied clamp assembly or it can be wall-mounted using the supplied screws and wall plugs. The antenna can be fitted directly to non-conductive panels or internal walls and mounting feet are supplied to allow it to be stood on a desk or window sill.

The omni-directional radiation pattern allows easy placement of the antenna without consideration of directional alignment and makes it ideal where access to multiple network sites is required. This version incorporates an integral GPS/GNSS antenna with 26dB LNA gain and advanced filtering for resilient operation.

The antenna has integral flame retardant coaxial cables, which eliminate or reduce exposed connector joints and simplify installation.

DWMM8X_6_60_X_Datasheet(20756).pdf

Specifications:

No. of Cellular Connectors	8
No. of WiFi Connectors	0
No. of GPS Connectors	1
Cellular Connector	SMA Male
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Multi
Antenna Color	White
Length (in)	17.4
Width (in)	1.9
Height (in)	10.3
Weight (lb)	13
Maximum Gain	6
Impedance Ω (Input/Output)	50
Cable Length (in)	196
Cable Type	CS32 (Cellular) and CS29 (GNSS)
Minimum Temperature (F)	-40
Maximum Temperature (F)	185
Material	ASA -UL 746C F1, UL 94-HB
VSWR (Voltage Standing Wave Radio)	<2.5:1
