Peplink Splitter MAX - Power any device via PoE Splitter MAX Have an older device that doesn't support PoE? Use the Splitter MAX to split your PoE connection into two separate power and data ports. Compatible with any device that operates from 12V and consumes less than 48W. Features Surge Protection : The Splitter MAX's integrated surge protection provides advanced shielding against power surges, ensuring the safety and reliability of connected devices in hazardous electrical environments. Compact Form Factor : The Splitter MAX's small size allows it to fit in tight spaces for more versatile installations. Solution for Antenna MAX : While some Peplink routers do not support Power over Ethernet (PoE) input, Splitter MAX can be used to provide power to these devices. Specification* PoE Input: 802.3bt 48W (802.3af/at compatible) DC Output: 12V, 48W Efficiency: 88-91% Surge Protection: Surge/lightning protection for the Ethernet port (PoE In port) Ethernet Interface: 10/100/1000/2500M Ethernet Weight: 142g / 0.313lb Product Dimensions: 102 x 50 x 26.5mm (4.01 x 1.96 x 1.04 inch) Enclosure Material: Metal Operating Temperature: -40°C to +70°C (-40°F to +158°F) Certification: FCC/IC/CE/ROHS/REACH IEC 61000-4-5 Surge (Level 4) IEC 61000-4-2 ESD (Level4) Input and Output Galvanic Isolation: Power and Etherent Package Contents: Splitter MAX DC cable (100mm) *Specifications are subject to change without notice. ACW-SPLT-MAX ACW-SPLT-MAX

Peplink

Cable & Accessory

757106127529

757106127529 https://5gstore.com/product/20549_peplink_splitter_max.html

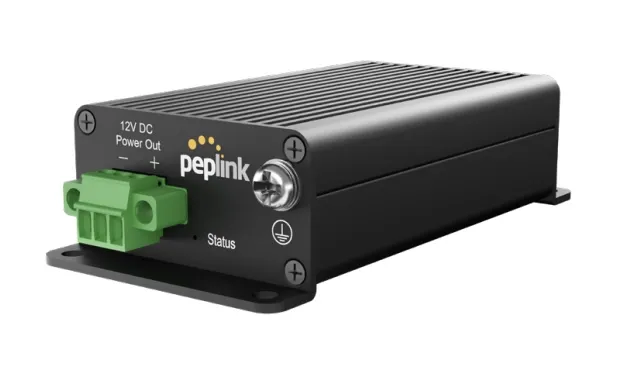

Splitter MAX

Have an older device that doesn't support PoE? Use the Splitter MAX to split your PoE connection into two separate power and data ports.

Compatible with any device that operates from 12V and consumes less than 48W.

Features

Surge Protection: The Splitter MAX's integrated surge protection provides advanced shielding against power surges, ensuring the safety and reliability of connected devices in hazardous electrical environments.
Compact Form Factor: The Splitter MAX's small size allows it to fit in tight spaces for more versatile installations.

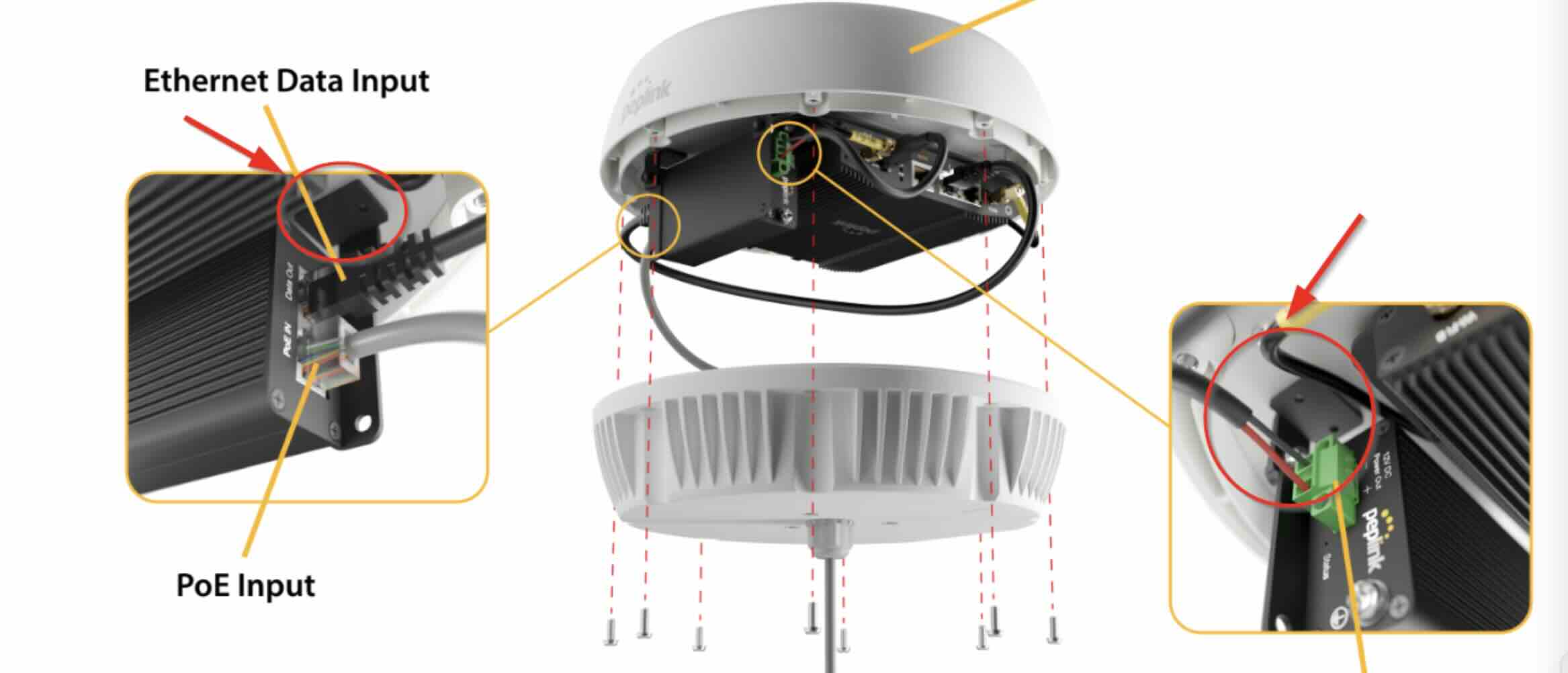

Solution for Antenna MAX: While some Peplink routers do not support Power over Ethernet (PoE) input, Splitter MAX can be used to provide power to these devices.

Specification*

PoE Input: 802.3bt 48W (802.3af/at compatible)
DC Output: 12V, 48W
Efficiency: 88-91%
Surge Protection: Surge/lightning protection for the Ethernet port (PoE In port)
Ethernet Interface: 10/100/1000/2500M Ethernet
Weight: 142g / 0.313lb
Product Dimensions: 102 x 50 x 26.5mm (4.01 x 1.96 x 1.04 inch)
Enclosure Material: Metal
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Certification:
- FCC/IC/CE/ROHS/REACH
- IEC 61000-4-5 Surge (Level 4)
- IEC 61000-4-2 ESD (Level4)
Input and Output Galvanic Isolation: Power and Etherent

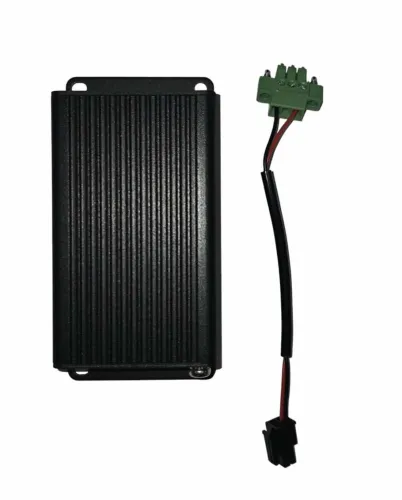

Package Contents:
- Splitter MAX
- DC cable (100mm)

*Specifications are subject to change without notice.
