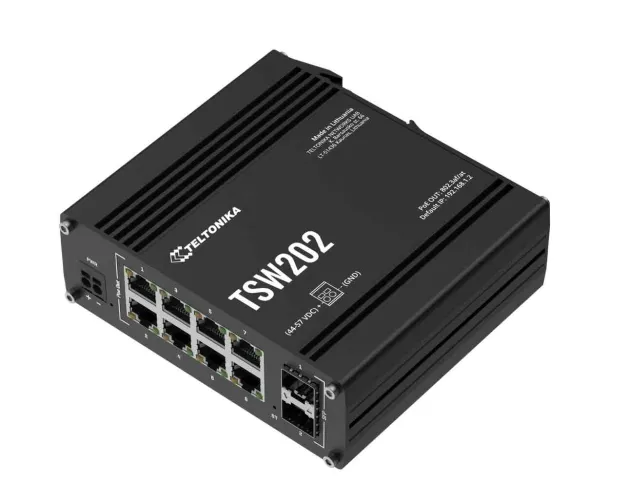

Teltonika TSW202 Managed Industrial PoE+ Switch with SFP and Gigabit Ethernet Ports

The Teltonika TSW202 is the first managed PoE+ switch from Teltonika Networks, combining centralized power distribution with advanced network management. This versatile industrial switch simplifies deployments by delivering both data and power over Ethernet, reducing the need for separate power supplies.

With 8 Gigabit Ethernet ports, each capable of delivering up to 30W of PoE+ power, the TSW202 efficiently powers connected devices such as IP cameras, wireless access points, and IoT sensors. In addition, it features 2 high-performance SFP ports, enabling reliable long-distance fiber optic communication.

Designed for industrial environments, the TSW202 supports key protocols like EtherNet/IP, PROFINET, and MRP, enhancing machine-to-machine (M2M) communication and automation. It’s ideal for industrial networking applications where both robust connectivity and centralized power are required.

Built for durability and flexibility, the TSW202 simplifies installation with its integrated DIN rail mount and rugged construction, ensuring stable performance even in harsh conditions.

FEATURES

Ethernet

• ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
• Fibre: 2 x SFP ports
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x

PoE Out

• PoE ports: Port 1-8
• PoE standards: 802.3af and 802.3at Alternative B
• PoE Max Power per Port (at PSE): 30 W
• Total PoE Power Budget (at PSE): 240 W
• Maximum Ethernet cable length: 100 m

Services

• Profinet (class B): Yes
• EtherNet/IP: Yes
• SNMP V2, V3: Yes
• LLDP: Yes

Network

• MRP: MRP client role, MRP manager role
• L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
• DHCP: DHCP server, DHCP client
• Port Settings: Enable/disable, link speed control, port isolation, PoE management, EEE (802.3az) management, Port Mirroring
• L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoS

• QOS: Port priority, DSCP priority, 802.1p priority, TOS
• Scheduling method: SP/WFQ/WRR
• Bandwidth control: Rate limiting, storm control
• Traffic Shaper: Port-based shaping

Diagnostics

• Tools: Cable diagnostic, ping, traceroute, nslookup

System Characteristics

• RAM: 128MB, DDR3
• FLASH storage: 16 MB serial flash

Firmware / Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW, configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration

Firmware Customization

• Operating system: TSWOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Performance Specifications

• Bandwidth (Non-blocking): 20 Gbps
• Forwarding rate: 14.88 Mpps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10000 bytes

Power

• Connector 2-pin industrial DC power socket
• Input voltage range 7 – 57 VDC
• Input voltage range for PoE: 44 – 57 VDC
• Power consumption Idle: <3 w="" max:="" 8="" poe="" 248="" li="">

Physical Interfaces

• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
• Fibre: 2 x SFP ports
• Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x LAN status LEDs, 2 x SFP status LEDs
• Power: 1 x 2-pin industrial DC power socket
• Reset: Software reset button
• Grounding: Screw terminal

Physical Specification

• Casing material: Anodized aluminum housing and panels
• Dimensions (W x H x D): 132 x 44.2 x 122.2 mm
• Weight: 610 g
• Mounting options: Integrated DIN rail bracket, wall mount (additional kit needed), flat surface placement

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions & Immunity

• Standards:
  • EN 55032:2015 + A11:2020 + A1:2020
  • EN 55035:2017 + A11:2020
  • EN IEC 61000-3-2: 2019 + A1:2021
  • EN 61000-3-3: 2013 + A1:2019 + A2:2021
• ESD:
  • EN 61000-4-2:2009
• Radiated Immunity:
  • EN IEC 61000-4-3:2020
• EFT:
  • EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port):
  • EN 61000-4-5:2014 + A1:2017
• CS:
  • EN 61000-4-6:2014
• DIP:
  • EN 61000-4-11:2020

Safety

• Standards:
  • CE: EN IEC 62368-1:2020 + A11:2020
  • RCM: AS/NZS 62368.1:2022
  • CB: IEC 62368-1:2018
