RUT956 Industrial Cellular Router - RUT956A00A00

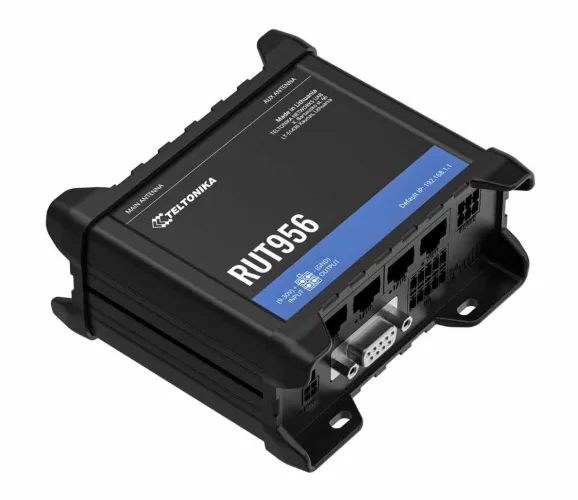

Teltonika RUT956 Industrial Cellular LTE Cat 4 Router

12 Support Docs
In Stock
Item Number: 20568
Model: RUT956A00A00
Quantity:
Have a large deployment?
Request a Quote

Price:

$299.00

The Remote Management System (RMS) is designed to conveniently monitor and manage all your Teltonika Networks networking devices. The system allows to securely gather status information of your devices and to change their configuration even if the devices do not have public IP addresses. Note that this subscription is good for one device for 10 years of RMS Management usage only. It will not provide any data for RMS Connect or RMS VPN (these services require a client use Data packs)
Add Teltonika Remote Management System (RMS) - details
RMS Credits are a flexible option as they can be assigned on the device to get it online on the platform or exchanged for company data in case you need more of it. Each credit is active on a device for 30 days and would allow the device to be monitored/connected for this activation time. Note that each new device added to the system has trial service which would be active for 1 month, though, TAP series devices have trial service that is valid for 2 years.
Add Teltonika Remote Management System (RMS) Credits - details
Connection data packs are an alternative to Company data if you expect a lot of traffic going through a RMS Connect session on a specific device or RMS VPN hub to which that device is assigned. A device with active data pack will have its own data pool that would take higher priority than the company data pool and will be active for a specified time period. Connection data packs are currently available in a 10-year 150GB option. They MUST be purchased along with a Management Pack. A single pack can only be active on a single device, once it is activated - it can not be transferred (special conditions apply, please contact Teltonika support regarding this).
Add Teltonika Remote Management System (RMS) Data Pack - details
Teltonika offers an optional DIN rail mounting kit that is compatible with this device.
Optional Mounting Hardware: - details
Bundle & Save Compare All...

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

FEATURES

  • Mobile module (2FF SIM required): 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
  • Supported Frequency Bands:
    • 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71
    • 3G: B2, B4, B5
  • Carrier Certifications: AT&T, Verizon, T-Mobile, UScellular
  • Wireless Mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA); Supports up to 100 simultaneous connections
  • Ethernet:
    • 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
    • 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
  • Serial support: 1 x RS232 DB9 socket and 1 x RS485 6-pin industrial socket
  • Power consumption: < 2 W idle, < 7 W Max
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit
  • Ingress Protection Rating: IP30

PACKAGE CONTENTS

  • RUT956 router with 2 year warranty
  • 9 W PSU
  • 2x Mobile antennas (magnetic mount, SMA male, 3 m cable)
  • 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • GNSS antenna (adhesive, SMA male, 3 m cable)
  • RS485 connector block
  • I/O connector block
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box



rut956-datasheet-2024-v11(20568).pdf

Popular Comparisons

Specifications:

Country of Origin Lithuania
No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 3
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 2
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 100 Mbps
SIM Card Size 2FF
eSIM Support No
Length (in) 4.33
Width (in) 3.94
Height (in) 1.97
Weight (lb) 0.63
Minimum Temperature (F) -40
Maximum Temperature (F) 167
Material Aluminum Housing / Plastic Panels
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 4
Cloud Management Included Yes
Power Input 9-30v DC
Bluetooth No
Bonding Support No
IP Passthrough Yes
