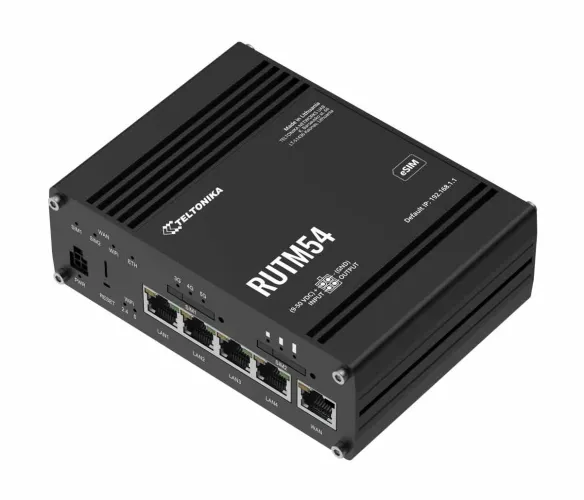

Teltonika RUTM54 5G Router - RUTM54000000
  • Teltonika RUTM54 5G Router - Front Panel
  • Teltonika RUTM54 5G Router - Back Panel

Teltonika RUTM54 5G Router with Telit Modem (Certified for US Carriers)

12 Support Docs
In Stock
Item Number: 20571
Model: RUTM54000000
Quantity:
Have a large deployment?
Request a Quote

Price:

$699.00

The Remote Management System (RMS) is designed to conveniently monitor and manage all your Teltonika Networks networking devices. The system allows to securely gather status information of your devices and to change their configuration even if the devices do not have public IP addresses. Note that this subscription is good for one device for 10 years of RMS Management usage only. It will not provide any data for RMS Connect or RMS VPN (these services require a client use Data packs)
Add Teltonika Remote Management System (RMS) - details
RMS Credits are a flexible option as they can be assigned on the device to get it online on the platform or exchanged for company data in case you need more of it. Each credit is active on a device for 30 days and would allow the device to be monitored/connected for this activation time. Note that each new device added to the system has trial service which would be active for 1 month, though, TAP series devices have trial service that is valid for 2 years.
Add Teltonika Remote Management System (RMS) Credits - details
Connection data packs are an alternative to Company data if you expect a lot of traffic going through a RMS Connect session on a specific device or RMS VPN hub to which that device is assigned. A device with active data pack will have its own data pool that would take higher priority than the company data pool and will be active for a specified time period. Connection data packs are currently available in a 10-year 150GB option. They MUST be purchased along with a Management Pack. A single pack can only be active on a single device, once it is activated - it can not be transferred (special conditions apply, please contact Teltonika support regarding this).
Add Teltonika Remote Management System (RMS) Data Pack - details
Teltonika offers an optional DIN rail mounting kit that is compatible with this device.
Optional Mounting Hardware: - details
Bundle & Save Compare All...

The Teltonika RUTM54 is a high-performance 5G router with dual-SIM and eSIM support, built for data-intensive applications requiring fast, reliable connectivity. Featuring a global Telit 5G modem, 5 Gigabit Ethernet ports, dual-band Wi-Fi, and auto-failover, it ensures consistent performance and robust redundancy. Backward compatibility with 4G and multiple interface options make it ideal for scalable, future-ready deployments.

FEATURES

  • 5G Modem: Ultra-high cellular speeds of up to 3.4 Gbps
  • SA & NSA: Supports both architectures to leverage the 5G infrastructure
  • DUAL SIM & eSIM™: With auto failover, backup WAN and other switching scenarios
  • TELIT MODEM: US-made module inside
  • Operator Certification: AT&T, T-mobile, and Verizon (Verizon support is via physical SIM only)
  • Inlcudes a 2 year manufacturer warranty

Physical Interfaces

  • Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LEDs: 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
  • SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
  • Power: 1 x 4-pin power connector
  • Antennas: 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
  • USB: 1 x USB A port for external devices
  • Reset: Reboot/User default reset/Factory reset button
  • Other: 1 x Grounding screw

Physical Specification

  • Casing material: Anodized aluminum housing and panels
  • Dimensions (W x H x D): 132 x 44.2 x 95 mm
  • Weight: 530 g
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
  • Operating temperature: -40 °C to 75 °C
  • Operating humidity: 10% to 90% non-condensing
  • Ingress Protection Rating: IP30
  • Regulatory & Type Approvals: CE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACH

rutm54-datasheet-en-v1(20571).pdf

Popular Comparisons

Specifications:

Country of Origin Lithuania
No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 1 Gbps
SIM Card Size 2FF
eSIM Support Yes
Length (in) 5.2
Width (in) 3.74
Height (in) 1.74
Weight (lb) 1.17
Minimum Temperature (F) -40
Maximum Temperature (F) 167
Material Aluminum Housing
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 9-50v DC
Bluetooth No
Bonding Support Yes
IP Passthrough Yes
