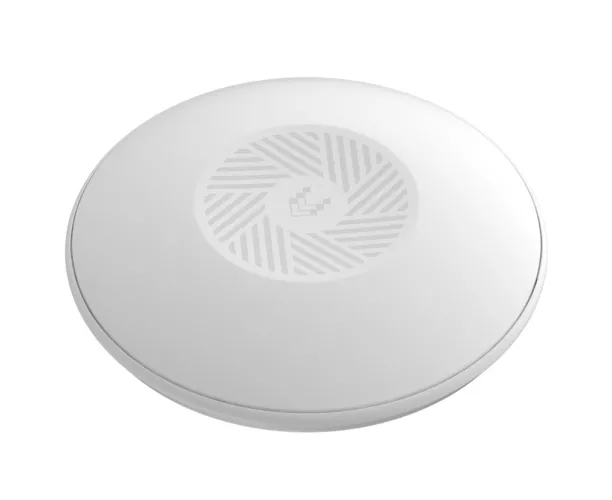

Teltonika TAP200 Dual-Band WiFi 5 Access Point with PoE-In and Fast Roaming

The Teltonika TAP200 is a reliable WiFi 5 wireless access point designed to deliver strong, stable coverage in medium-density environments. With dual-band technology and fast roaming support, the TAP200 ensures seamless connectivity and optimal network performance for users on the move.

Equipped with an RJ45 port featuring PoE-in, the TAP200 simplifies installation by delivering both power and data over a single Ethernet cable—no need for separate power adapters. Its integrated mounting bracket makes for quick, hassle-free setup on walls or ceilings.

With a sleek, modern design, the TAP200 blends effortlessly into a variety of spaces, including retail locations, office environments, and enterprise settings, while enhancing overall Wi-Fi coverage and performance.

FEATURES

WIRELESS

• Wireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
• Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
• SSID/ESSID: ESSID stealth mode (Hide SSID)
• Wi-Fi users: Up to 100 simultaneous connections
• Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter: Whitelist, blacklist
• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

ETHERNET

• Ethernet: 1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
• DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication,
• internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations,
• user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

SECURITY

• 802.1x: Port-based network access control client
• Authentication: SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
• VLAN: Tag-based VLAN separation

DATA TO SERVER

• Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis
• Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting,
• allowing scripts to utilize the router's Data to server feature

API

• Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• Email: Receive email message status alerts of various services
• JSON-RPC: Management API over HTTP/HTTPS
• RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

• CPU: MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
• RAM: 256 MB, DDR3
• FLASH storage: 16MB, SPI NOR Flash

FIRMWARE / CONFIGURATION

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration
• Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided
• GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
• Package Manager: The Package Manager is a service used to install additional software on the device

POWER

• Connector: RJ45 Socket
• Input voltage range: 44.0 – 57.0 V
• PoE standards: 802.3af PoE Class 1
• Power consumption: Idle: < 4 W / Max: < 5.5 W

PHYSICAL INTERFACES

• Ethernet: 1 x RJ45 port, 10/100/1000 Mbps
• Status LEDs: 1 x Power LED (can be turned off from web-UI)
• Antennas: 2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
• Antennas specifications:
  • 2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
  • 2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
• Reset: Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

• Casing material: UV stabilized plastic
• Dimensions: Ø 158 mm x 30 mm
• Weight: 190 g
• Mounting options: AP mounting bracket (for ceiling mount)

OPERATING ENVIRONMENT

• Operating temperature: -40 °C to 50 °C
• Operating humidity: 10% to 90% non-condensing for all our devices.
• Ingress Protection Rating: IP30

REGULATORY & TYPE APPROVALS

• Regulatory: CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)

EMC EMISSIONS & IMMUNITY

• Standards
  • EN 55032:2015 + A11:2020
  • EN 55035:2017 + A11:2020
  • EN 61000-3-3:2013+A1:2019 + A2:2021
  • EN IEC 61000-3-2:2019 + A1:2021
  • EN 301 489-1 V2.2.3
  • EN 301 489-17 V3.2.4
• ESD
  • EN 61000-4-2:2009
• Radiated Immunity
  • EN IEC 61000-4-3:2020
• EFT
  • EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port)
  • EN 61000-4-5:2014 + A1:2017
• CS
  • EN 61000-4-6:2014
DIP
• EN IEC 61000-4-11:2020

RF

• Standards
  • EN 300 328 V2.2.2
  • EN 300 893 V2.1.1
  • EN 300 440 V2.2.1

SAFETY

• Standards
  • CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
  • RCM: AS/NZS 62368.1:2022
  • CB: IEC 62368-1:2018
