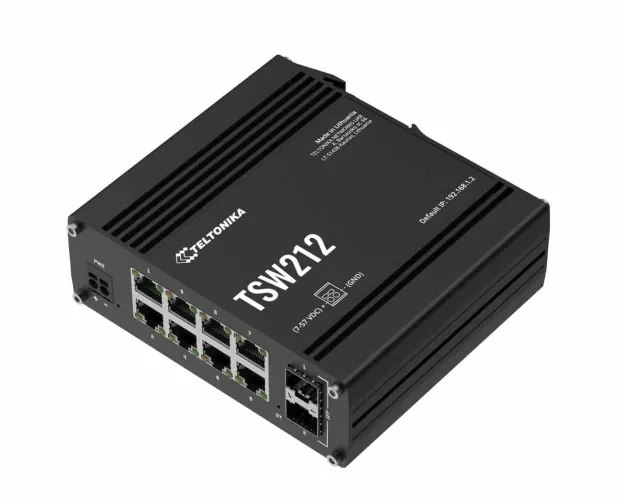

Teltonika TSW212 Managed Ethernet Switch

Teltonika TSW212 Managed Industrial Switch with SFP and Gigabit Ethernet Ports

The Teltonika TSW212 is a powerful L2 managed industrial switch designed for advanced network management. It also includes select Layer 3 features, such as static IPv6 routing and DHCPv6 client support, offering greater flexibility and control for complex network setups.

Equipped with 8 Gigabit Ethernet ports and 2 SFP ports, the TSW212 delivers reliable, high-speed connectivity for both copper and fiber-optic communication. It's an excellent choice for extending your network across long distances with fiber.

This switch is compatible with multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, making it ideal for industrial automation and IoT applications. Built with rugged aluminum housing, the TSW212 is engineered to withstand extreme temperatures and resist vibrations, ensuring dependable performance in harsh environments.

For easy integration, the TSW212 comes with an integrated DIN rail mount, simplifying installation in industrial cabinets or enclosures.

FEATURES

Ethernet

• ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
• Fibre: 2 x SFP ports
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

Industrial Protocols

• Profinet: Profinet Class B conformance (available with optional order code)

Services

• EtherNet/IP: Yes
• SNMP V2, V3: Yes
• LLDP: Yes
• Network Management: 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

• MRP: MRP client role, MRP manager role
• L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
• DHCP: DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
• Port Settings: Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
• L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security

• Authentication PAM — preshared key, Radius & TACACS+, IP & login attempts block

QoS

• QOS: Port priority, DSCP priority, 802.1p priority, TOS
• Scheduling method: SP/WFQ/WRR
• Bandwidth control: Rate limiting, storm control
• Traffic Shaper: Port-based shaping

Diagnostics

• Tools: Cable diagnostic, ping, traceroute, nslookup

API

• Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics

• RAM: 128MB, DDR3
• FLASH storage: 16 MB serial flash

Firmware / Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration

Firmware Customization

• Operating system: TSWOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Performance Specifications

• Bandwidth (Non-blocking): 20 Gbps
• Forwarding rate: 14.88 Mpps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10000 bytes

Power

• Connector 2-pin industrial DC power socket
• Input voltage range 7 – 57 VDC
• Power consumption Idle: 2.5 W / Max: 6 W

Physical Interfaces

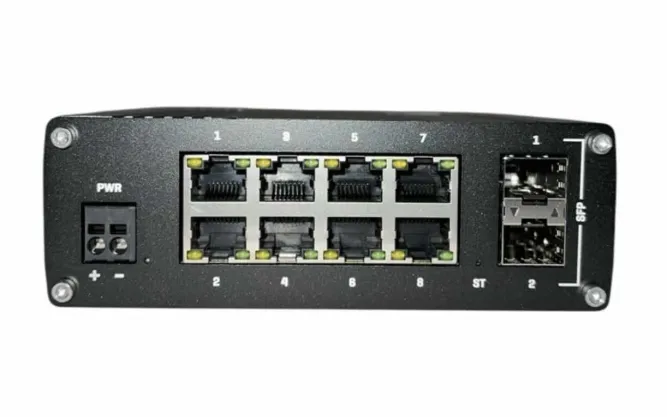

• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
• Fibre: 2 x SFP ports
• Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
• Power: 1 x 2-pin industrial DC power socket
• Reset: Software reset button
• Other: 1 x Grounding screw

Physical Specification

• Casing material: Anodized aluminum housing and panels
• Dimensions (W x H x D): 132 x 44.2 x 122.2 mm
• Weight: 615 g
• Mounting options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, NBCT, ICASA, PROFINET

EMC Emissions & Immunity

• Standards:
  • EN 55032:2015 + A11:2020 + A1:2020
  • EN 55035:2017 + A11:2020
  • EN IEC 61000-3-2: 2019 + A1:2021
  • EN 61000-3-3: 2013 + A1:2019 + A2:2021
• ESD:
  • EN 61000-4-2:2009
• Radiated Immunity:
  • EN IEC 61000-4-3:2020
• EFT:
  • EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port):
  • EN 61000-4-5:2014 + A1:2017
• CS:
  • EN 61000-4-6:2014
• DIP:
  • EN 61000-4-11:2020

Safety

• Standards:
  • CE: EN IEC 62368-1:2020 + A11:2020
  • RCM: AS/NZS 62368.1:2022
  • CB: IEC 62368-1:2018
