Steedan 5in1 Magnet Mount - 2x 4G/5G, 2x Wi-Fi 6, 1x GNSS - 1m cables (Black) - MA350.A.LBICG.007

Steedan 5in1 Magnet Mount - 2x 4G/5G, 2x Wi-Fi 6, 1x GNSS - 1m cables (Black)

Call for Availability

Item Number: 20759
Model: MA350.A.LBICG.007
Quantity:

Price:

$253.34

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

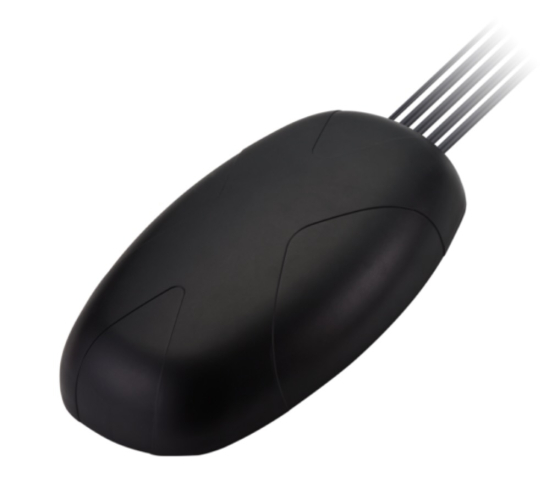

5-in-1 Magnetic Mount Antenna with GNSS, 2x 5G/4G MIMO and 2x Wi-Fi 6

The Taoglas Steedan MA350 is a 5-in-1 next-generation low profile magnetic mount antenna for a vehicle, outdoor building, and heavy equipment roof applications. It has a fully IP65 rated waterproof robust ABS enclosure and base. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel is not feasible. It can be mounted on steel surfaces and its ultra-strong neodymium magnets. A soft foam cushion on the base protects the mounting surface during installation and removal. Only 48mm high it mounts discretely to the target application out of sight of most onlookers.

This outstanding antenna delivers powerful MIMO antenna technology 5G/4G and Wi-Fi 6 2.4/5.8/7.125GHz and a custom-tuned GPS/GLONASS/BeiDou patch antenna for GNSS location services. The 5 internal antennas have superior isolation. The 5G/4G antennas also include backward compatibility to work at most worldwide 3G and 2G bands.

Typical Applications:
• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation, and Telematics Systems
• V2V, V2X and Fleet Management Applications
• First Net Responder Routers

The MA350 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

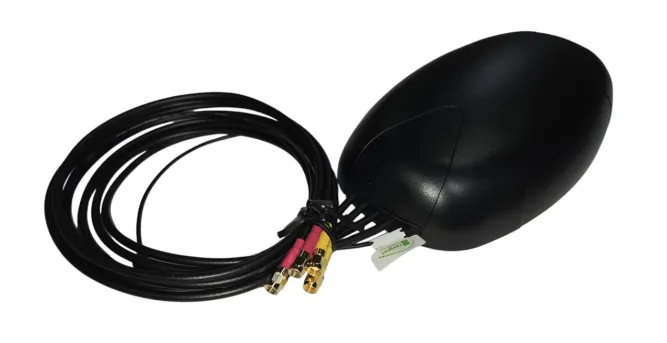

There are 5x 1000mm low loss TGC-200 cables, terminating in SMA(M) connectors for LTE MIMO, and RP SMA(M) for Wi-Fi MIMO. There is a 1000mm RG-174 cable for GNSS terminating in an SMA(M) connector.

Technical Specification

Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA and RP-SMA
Cable Type TGC-200 and RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 5
Length (mm) 247
Width (mm) 144.3
Height (mm) 52.8
Weight (g) 886


Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Magnetic
Antenna Color Black
Length (in) 9.7
Width (in) 5.7
Height (in) 2.1
Weight (lb) 2
Maximum Gain 5
Impedance Ω (Input/Output) 50
Cable Length (in) 39
Cable Type RG-174 (GPS) and TGC-200 (cellular)
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material ABS+PC
VSWR (Voltage Standing Wave Radio) 0
