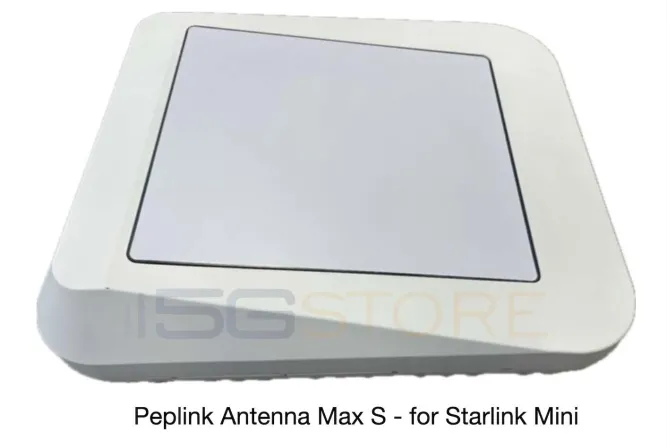

Peplink Antenna Max S Enclosure - ANT-MAX-S
  • Peplink Antenna Max S Enclosure - Top view
  • Peplink Antenna Max S Enclosure - Back view
  • Peplink Antenna Max S Enclosure - Bottom view
  • Peplink Antenna Max S Enclosure - Open view

Peplink Antenna Max S Enclosure for Starlink Mini and Peplink routers

31 Support Docs
Not yet Shipping
Item Number: 20789
Model: ANT-MAX-S

Price:

$699.00

Peplink offers an optional metal L-mount kit that is compatible with this product. It is recommended for high-wind conditions, as it provides enhanced durability and stability.
Optional Mounting Hardware: - details
Similar Products Compare All...

Contact Me When the Peplink Antenna Max S is Available!

The Peplink Antenna Max S is a new product and is not yet available. It is expected around July/August of 2025. Sign up here to be notified when it's available, or contact us today to discuss alternative in stock options!
Email Address: *
Name: *
Phone:
Quantity Needed?
Comments:



Peplink Antenna Max S is an IP67 enclosure. Designed for performance and priced for practicality, the Antenna MAX S delivers an all-in-one Starlink and cellular solution at a price that makes sensefor businesses, fleets, and integrators alike.

Whether you're operating from a remote location, working in an RV, or maintaining mission-critical connections on the move, it saves time, space, and cost - without compromising performance.

Compatibility has been confirmed with the following Peplink routers:

  • BR1 Mini series routers
  • BR1 Pro 5G
  • Transit Pro Duo

Specifications

  • Cellular Antenna Elements: 4
    • Connectors: Right angle SMA male
    • Peak Gain & Frequencies:
      • 5.7dBi: 617-960MHz
      • 6.8dBi: 1410-2700MHz
      • 8.9dBi: 3300-4400MHz
      • 7.3dBi: 5000-6000MHz
  • Wi-Fi Antenna Elements: 2
    • Connectors: Right angle RP-SMA male
    • Peak Gain & Frequencies:
    • 6.3dBi: 2400-2500MHz
    • 7.4dBi: 5000-6000MHz
  • GPS Antenna Elements: 1
    • Connector: Right angle SMA male
    • Frequency Range: 1575-1602 MHz
    • Peak Gain: 0.9dBi@1575MHz; 0.8dBi@1602MHz
  • Input Impedance: 50 Ω
  • Polarisation: Linear
pepwave_antenna_max_s_datasheet(20789).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Panel/Enclosure
Antenna Color White
Length (in) 17.6
Width (in) 14.5
Height (in) 5.3
Maximum Gain 8.9
Impedance Ω (Input/Output) 50
Cable Length (in) pigtails
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material Aluminum and UV stable PC
VSWR (Voltage Standing Wave Radio) < 2.5 over 95% of the band (cell); <2.0 (GPS), <3.0 (WiFi)
Noise Figure 2.5dB
