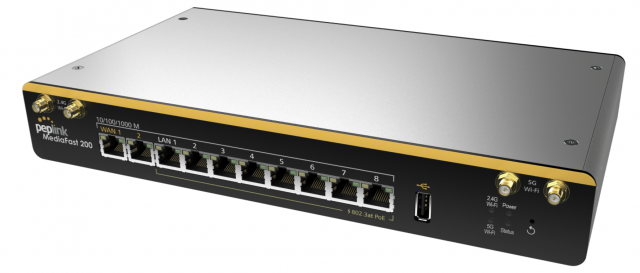

Pepwave Balance with MediaFast 200 Caching Router with 120GB SSD

In Stock

Item Number: 5136
Model: MFA-200-W

Contact Us For Pricing

Peplink provides a one-year standard warranty at no additional charge. This warranty period can be extended for an additional 1 or 2 years if desired.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
Extended Warranty (optional): - details
SmartCare is an additional support option that can be added for one or three years.

The 1-year or 3-year SmartCare packages include:
  • Standard Warranty for 1 or 3 years
  • Free Firmware Upgrades for 1 or 3 years
  • Advance Hardware Replacement for RMA for 1 or 3 years (i.e. if your device needs to be replaced, Pepwave will ship you a replacement without having to receive the defective unit first)
There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
SmartCare Support (optional): - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This is the UPDATED MediaFast 200 with improved throughput (200mbps vs 150mbps)

This Pepwave Balance Caching Router lets small businesses and educational institutions play media whenever they need to. MediaFast technology downloads and buffers audio and video from a variety of sources at a throughput of up to 200 Mbps for uninterrupted future use. Content is stored on the integrated 120GB SSD hard drive and can be set to automatically delete and free up space for future files. The router can also do scheduled content downloads during off-peak hours to reduce overall connectivity costs, and has built-in app control so you can manage devices.

As an entry-level enterprise router, the Pepwave Balance MediaFast 200 has many of the features of other Pepwave networking devices. Designed for using a single internet connection, this router offers bandwidth reporting, client IP monitoring, a stateful firewall and an obstructed Wi-Fi range of up to 500 feet. An optional add-on will activate the second Wired WAN port while enabling Pepwave’s SpeedFusion VPN Bonding, load balancing and failover. The 5Gstore experts will help you set up and configure your MediaFast network router with a year of free technical support and 24/7 access to our support portal.

5Gstore is a Peplink Certified PartnerRouter Features:

  • Internet Connections Supported: 2 Wired WAN, 1 USB (view full compatibility chart), WiFi as WAN*
  • WiFi Standard: 802.11 B, G, N
  • WiFi Range: 400-500' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)
  • Ethernet ports: 8 GbE LAN + 2* GbE WAN (Only WAN 1 is activated. With purchase of optional Load Balancing or SpeedFusion Bonding license key, you can activate WAN 2)
  • Size: 11.5" x 6.9" x 1.9"
  • Bonding: SpeedFusion Bonding available as a paid upgrade
*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss. Also note that certain features available for other WAN connections may not be available via WAW, such as MAC Address Clone or IP Passthrough - refer to the full product manual if you plan to use WAW for more advanced routing.

Cache. Download x1. Playback xInfinity . Deliver Content On-The-Fly.

With MediaFast, you can download content just once and delivers on-demand, uninterrupted content anywhere at blazing speed. Cache iTunes/iTunes U and other content manually or automatically by domain and file type. Keep content as long as you like or purge it automatically by file type and age.

Prefetch. Off-Peak Downloads. Anytime, Anywhere Playback.

Schedule one-time or recurring content downloads during off-peak hours, and then playback downloaded content anytime. Need HD video and other content in places with spotty or congested Internet connections? Download whenever and wherever the connection is best. Then pack up and take the MediaFast anywhere you need seamless content delivery.

Reporting. Deep Insight. On-Demand.

Check bandwidth usage and savings. Track popular URLs and file types. You can also monitor client IP addresses, find your heaviest users, and more, all from a single intuitive interface.

SpeedFusion and Link Load Balancing. 24/7 Connectivity with Bonded Bandwidth.

Take advantage of all available connections with SpeedFusion bandwidth bonding and load balancing. Automatic failover keeps your learners learning and teachers teaching, even when a link fails.

Specs:

  • WAN:
    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
      • PING
      • DNS Lookup
      • HTTP
    • Bandwidth Allowance Monitor
    • IPV6 Support
    • USB 4G/3G Modem Support (List of Supported Modems)
  • LAN:
    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • Support for Dynamic DNS services
      • changeip.com
      • dyndns.org
      • no-ip.org
      • tzo.com
    • DNS Proxy for LAN Clients
  • Caching
    • Video Caching
      • ted.com
      • iTunes
      • iTunes U
    • Content Caching
      • HTML
      • JavaScript
      • Image
    • Flash Application
  • Load Balancing (available as an optional add-on):
    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms
      • Weighted
      • Enforced
      • Persistence
      • Priority
      • Overflow
      • Least Used
      • Lowest Latency
  • Complete VPN Solution (available as an optional add-on):
    • Site-to-Site VPN Bonding
      • Bandwidth Aggregation
      • Intelligent Failover
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
      • Dynamic Routing
    • PPTP VPN Server
      • RADIUS, LDAP Authentication
    • IPsec VPN (Network-to-Network)
      • X.509 certificate support
  • Advanced QOS:
    • User Groups
      • Individual Bandwidth Limit
      • Bandwidth Reservation
    • Application Prioritzation
      • By User Groups
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS
  • Networking:
    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAT Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP
    • WINS Server
  • AP Controller:
    • Support for Pepwave AP Series
    • Auto AP Discovery
    • Auto AP Firmware Management
    • AP Profile Configuration
    • Wi-Fi usage statistics
  • Captive Portal Support:
    • Support for wired and wireless LAN clients
    • Support RADIUS authentication
    • Support LDAP authentication
    • Time and usage quotas on Open Access mode
    • Built-in customizable splash page
  • Security:
    • DoS Prevention
    • Stateful Firewall
    • Web Blocking
  • Device Management:
    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client and Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3
  • Power Requirements: 12V – 48V DC
  • WAN Ports / Internet Links: 2* (Only WAN 1 is activated. With purchase of optional Load Balancing or SpeedFusion Bonding license key, you can activate WAN 2)
  • LAN Ports: 8 (GbE)
  • 3G/4G Modem Support: 1 USB (view list of compatible devices)
  • WiFi Interface:
    • 802.11a/n or b/g/n as WAN
    • 802.11a/n or b/g/n as AP
  • Disc Drive: 120GB SSD
  • Cache Throughput: 200Mbps
  • Router Throughput: 80Mbps
  • WiFi Data Rates: 2x2 MIMO, 2.4GHz: 300Mbps; 5GHz: 300Mbps
  • Core Functionality:
    • Load Balancing (requires paid upgrade)
    • Video Caching
    • Content Caching
    • InControl Cloud Management
    • Drop-In Mode
  • AP Controller:
    • Manage Pepwave AP Series
    • Maximum Number of AP Supported: 10 (With purchase of optional AP Controller license, MediaFast 200 can manage up to 50 Pepwave AP)
  • VPN Functionality:
    • PepVPN
    • SpeedFusion Hot Failover with optional add-on
    • SpeedFusion Bandwidth Bonding
      • Number of PepVPN/SpeedFusion Peers: 2
  • Hardware:
    • Operating Temperature: -40° – 149°F, -40° – 65°C
    • Power Consumption: 38W
    • Dimensions: 11.5" x 6.9" x 1.9"
  • Support and Warranty: 1-year limited warranty
  • Certifications:
    • CE
    • RoHS
    • FCC
  • Included:
    • MediaFast 200
    • 12V4A Power Supply

***Peplink IPsec only supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
