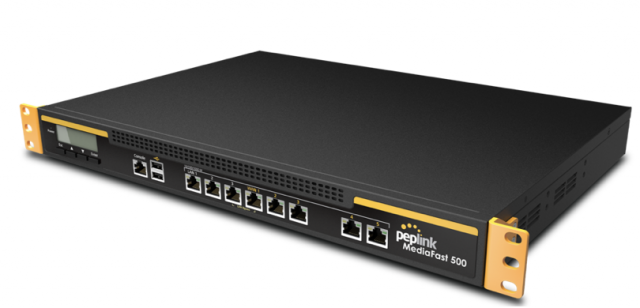

Pepwave Balance with MediaFast 500 Caching Router (No WiFi) with 500GB SSD
Hardware Revision 2

Call for Availability

Item Number: 5138
Model: MFA-500-B

Contact Us For Pricing

Peplink provides a one-year standard warranty at no additional charge. This warranty period can be extended for an additional 1 or 2 years if desired.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
Extended Warranty (optional): - details
SmartCare is an additional support option that can be added for one or three years.

The 1-year or 3-year SmartCare packages include:
  • Standard Warranty for 1 or 3 years
  • Free Firmware Upgrades for 1 or 3 years
  • Advance Hardware Replacement for RMA for 1 or 3 years (i.e. if your device needs to be replaced, Pepwave will ship you a replacement without having to receive the defective unit first)
There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
SmartCare Support (optional): - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This is the UPDATED MediaFast 500 with a 500gb SSD and improved throughput (800mbps vs 500mbps)

The MediaFast Pepwave Balance is an advanced networking router for small businesses, schools and other enterprise users who make extensive use of online media. Video and audio are downloaded and cached on the 500GB solid state hard drive for uninterrupted playback at any time. It supports five wired WAN internet connections and one USB cellular modem, using Pepwave’s SpeedFusion Bonding or load balancing technology to combine connections for increased bandwidth of up to 800 Mbps throughput. Intelligent failover will switch traffic over if a connection fails. Use the web administrative interface or InControl 2 cloud management to monitor bandwidth usage or track popular file download types.

This enterprise caching router supports content from iTunes, iTunes U, ted.com, HTML and other providers aimed at entertainment and education. The MediaFast technology allows users to pre-fetch content during times with less traffic to reduce network strain and can also automatically delete files based on age or file type. The Pepwave Balance Caching Router is portable and can be brought anywhere that you need high-quality audio and video playback. Our support portal contains extensive documentation on how to use your MediaFast 500 router and you can also contact the 5Gstore.com tech support team by phone or email.

5Gstore is a Peplink Certified PartnerRouter Features:



Cache. Download x1. Playback xInfinity . Deliver Content On-The-Fly.

With MediaFast, you can download content just once and delivers on-demand, uninterrupted content anywhere at blazing speed. Cache iTunes/iTunes U and other content manually or automatically by domain and file type. Keep content as long as you like or purge it automatically by file type and age.

Prefetch. Off-Peak Downloads. Anytime, Anywhere Playback.

Schedule one-time or recurring content downloads during off-peak hours, and then playback downloaded content anytime. Need HD video and other content in places with spotty or congested Internet connections? Download whenever and wherever the connection is best. Then pack up and take the MediaFast anywhere you need seamless content delivery.

Reporting. Deep Insight. On-Demand.

Check bandwidth usage and savings. Track popular URLs and file types. You can also monitor client IP addresses, find your heaviest users, and more, all from a single intuitive interface.

SpeedFusion and Link Load Balancing. 24/7 Connectivity with Bonded Bandwidth.

Take advantage of all available connections with SpeedFusion bandwidth bonding and load balancing. Automatic failover keeps your learners learning and teachers teaching, even when a link fails.

Specs:

  • WAN:
    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
      • PING
      • DNS Lookup
      • HTTP
    • Bandwidth Allowance Monitor
    • IPV6 Support
    • USB 4G/3G Modem Support (List of Supported Modems)
  • LAN:
    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • Support for Dynamic DNS services
      • changeip.com
      • dyndns.org
      • no-ip.org
      • tzo.com
    • DNS Proxy for LAN Clients
  • Caching
    • Video Caching
      • ted.com
      • iTunes
      • iTunes U
    • Content Caching
      • HTML
      • JavaScript
      • Image
    • Flash Application
  • Load Balancing:
    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms
      • Weighted
      • Enforced
      • Persistence
      • Priority
      • Overflow
      • Least Used
      • Lowest Latency
  • Complete VPN Solution:
    • Site-to-Site VPN Bonding
      • Bandwidth Aggregation
      • Intelligent Failover
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
      • Dynamic Routing
    • PPTP VPN Server
      • RADIUS, LDAP Authentication
    • IPsec VPN (Network-to-Network)
      • X.509 certificate support
  • Advanced QOS:
    • User Groups
      • Individual Bandwidth Limit
      • Bandwidth Reservation
    • Application Prioritzation
      • By User Groups
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS
  • Networking:
    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAT Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP
    • WINS Server
  • AP Controller:
    • Support for Pepwave AP Series
    • Auto AP Discovery
    • Auto AP Firmware Management
    • AP Profile Configuration
    • Wi-Fi usage statistics
  • Captive Portal Support:
    • Support for wired and wireless LAN clients
    • Support RADIUS authentication
    • Support LDAP authentication
    • Time and usage quotas on Open Access mode
    • Built-in customizable splash page
  • Security:
    • DoS Prevention
    • Stateful Firewall
    • Web Blocking
  • Device Management:
    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client and Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3
  • Power Requirements: Universal Input 100V – 240V AC
  • WAN Ports / Internet Links: 5
  • LAN Ports: 3 (GbE)
  • 3G/4G Modem Support: 1 USB (view list of compatible devices)
  • Disc Drive: 500GB SSD
  • Cache Throughput: 800Mbps
  • Router Throughput: 250Mbps
  • Core Functionality:
    • Load Balancing
    • Video Caching
    • Content Caching
    • InControl Cloud Management
    • Drop-In Mode
  • AP Controller:
    • Manage Pepwave AP Series
    • Maximum Number of AP Supported: 10 (With purchase of optional AP Controller license, MediaFast 500 can manage up to 100 Pepwave AP)
  • VPN Functionality:
    • PepVPN
    • SpeedFusion Hot Failover
    • SpeedFusion Bandwidth Bonding
      • Number of PepVPN/SpeedFusion Peers: 50
  • Hardware:
    • Operating Temperature: -40° – 149°F, -40° – 65°C
    • Power Consumption: 50W
    • Dimensions: 11.5" x 6.9" x 1.9"
    • 1U Rackmount
    • LAN Bypass
  • Support and Warranty: 1-year limited warranty
  • Certifications:
    • CE
    • RoHS
    • FCC
  • Included:
    • MediaFast 500
    • Power cord
    • 1 Pair of Mounting Brackets

***Peplink IPsec only supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
