weBoost RV 4G 60db 5-Band Repeater Kit - 470201 [700/800/1900/1700/2100mhz] - DISCONTINUED

No Longer Available

Item Number: 6198
Model: 470201




This kit has been discontinued and is no longer available. See other vehicle options

Even when you’re getting it away from it all, sometimes you need to stay connected. This weBoost RV 4G cellular signal booster amplifies weak signals for better voice clarity, data coverage, LTE speeds and reliability. Vacations and outdoor adventures often take you to places with poor cellular reception. This can be caused by obstructions such as trees and hills or simply being farther from the nearest cell tower. Whatever the reason for poor connectivity, a weBoost 5-Band Repeater Kit can help. Install this kit with your stationary RV or vehicle so you can make phone calls, check email or catch up on sports scores while you’re away from home. (This kit is not for use while in motion!)

Part of Wilson Amplifiers, weBoost has been a leader in cell signal boosters for nearly 20 years. Everything is included in this repeater kit to amplify signal strength and coverage area for all North American cellular carriers. The device picks up the cellular signal using the outside directional antenna and boosts it using the amplifier, broadcasting a stronger signal to any device within range of the dual-band inside antenna. You'll experience increased signal across five different 2G/3G/4G/LTE frequency bands, and your devices' batteries will also last longer because they don’t have to work as hard to pick up a signal.

Installation of the weBoost 5-band repeater kit is easy. These all-in-one kits include everything needed for your setup including RG6 cables, mounting hardware and both AC and DC power supplies. If you’re tired of dropped calls, slow downloads and short battery life when you’re camping or road-tripping, a weBoost RV 60dB Repeater Kit may be the solution. All weBoost products come with a two-year manufacturer’s warranty for additional peace of mind. This kit is certified by both the FCC and Industry Canada for safe and effective operation.


  • Coverage area*: up to 1,000 square feet
  • All-in-One Kit? YES
  • Compatibility: This amplifier supports 700mhz/800mhz/1700mhz/1900mhz/2100mhz networks (which includes most 2G, 3G, and 4G providers in the US). Supported carriers/networks include:
    • Verizon 2G/3G/4G/AWS
    • Sprint 2G/3G/4G LTE (NOTE: improvement for Sprint LTE is minimal in areas using the upper portion of Sprint's frequency)
    • AT&T 2G/3G/4G/LTE
    • US Cellular 2G/3G/4G
    • T-Mobile 3G/4G
    • MetroPCS 3G/4G
    • For other carriers, confirm which frequency your provider is using and make sure this antenna supports it before purchasing! Contact us if you need any assistance.

IMPORTANT SIGNAL INFORMATION: If you're purchasing an amplifier for use at one specific location, we strongly recommend doing a site survey first to determine whether the amplifier will help you and to give you an idea of what kind of results you can expect from it.

If your signal is extremely poor (-108db or worse), an amplifier may not be effective - there must be some usable signal available for the amplifier to boost. Conversely, if the signal is too STRONG at your location (-50db or better), the amplifier may shut down to avoid interference with the tower.

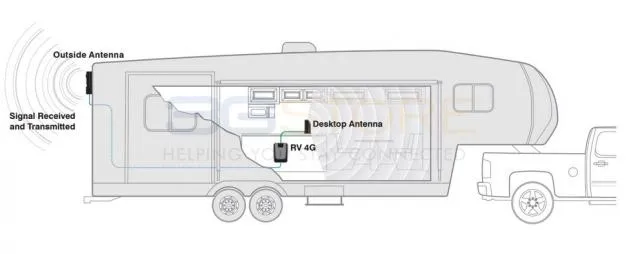

How it works: The outside antenna picks up the cellular signal and sends it through the first cable to the amplifier. The signal is then boosted and sent through the second cable to the inside antenna, which rebroadcasts the boosted signal. All of your modems/phones within range of the inside antenna can benefit from the boosted signal wirelessly.

*Many factors will influence the actual coverage area you will see from a repeater, including layout/floorplan, construction, and original un-amplified signal strength. Depending on your situation, you may see more or less coverage than the estimates listed here. It is not possible to guarantee coverage area.

Installation notes:

  • This kit is NOT to be used while in motion.
  • In order for your system to function properly, you must maintain adequate separation between the panel and desktop antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will shut down). This amplifier requires approximately 15' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • If you cannot achieve adequate separation to eliminate oscillation, you can turn down the gain on the amplifier, but that will result in a smaller coverage area from the amplifier.
  • The outdoor/window antenna must be aimed at the cell tower - if it is not aimed properly, it will not be effective. Line of sight is not required, but it does need to be aimed towards the tower.
  • Make sure the interior desktop antenna is aimed AWAY from the outside antenna.

Features & Benefits:

  • Installs in minutes
  • Optional indoor accessory kit available
  • Boosts signal for all U.S. & Canada cell carriers
  • Friendly, U.S.-based customer support
  • All components needed for installation in one package
  • FCC & Industry Canada Certified
  • Extends cellular signal range
  • Reliable cell signal and more consistent data speeds
  • Faster data downloads
  • Up to 2 hours additional talk time in weak-signal areas

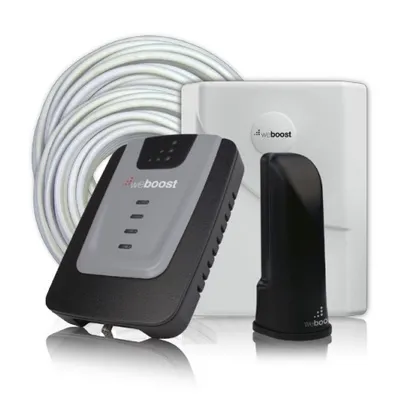

Package Includes:

  • Amplifier
  • Outdoor directional antenna
  • Dual-band desktop antenna (5' cable attached)
  • 15’ RG6 cable
  • 30’ RG6 cable
  • Mounting hardware
  • AC power supply
  • DC power supply
  • Installation guide


  • Part Number: 470201
  • Frequency:
    • BAND 17: 700MHz
    • BAND 13: 700MHz
    • BAND 5: 850 MHz
    • BAND 4: 1700/2100MHz
    • BAND 25/2: 1900 MHz
  • Gain: 60 dB
  • Impedance: 75ohms
  • Power Requirements: 110-240 V AC, 50-60 Hz, 8 W
  • Connectors: SMA-Female (inside connector)/F-Female (outside connector)
  • Dimensions: 6.3 x 1.4 x 4.2 in / 16 x 3.6 x 10.7 cm (amplifier)
  • Weight: 0.45 lbs / 0.20 kg (amplifier)

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
