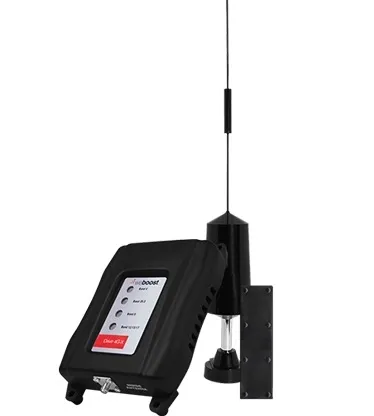

weBoost Drive 3G-X NMO 50db Repeater Kit - 470411 (3G/Voice) - DISCONTINUED

No Longer Available

Item Number: 6317
Model: 470411

Price:

$399.99


DISCONTINUED ITEM - SCROLL DOWN FOR REPLACEMENT ITEMS

The 3G-X has been discontinued - see the Drive 4G-X

Hills, trees and distance from the signal source all affect call quality while you’re on the road—not to mention streaming services and other apps. The weBoost Drive 3G-X is your answer to all those times you’ve lost connection on the road, especially in rural areas. It offers stronger cellular connections by operating with the maximum output power allowed under current FCC regulations, extending your service range up to 60 percent farther than other boosters on the market. Drive 3G-X substantially improves your cellular signal strength on all cellular-connected devices in your vehicle—including smartphones, tablets and laptops.

How it works: The outside antenna picks up the cellular signal and sends it to the amplifier. The signal is then boosted and sent out through the panel antenna, which rebroadcasts the boosted signal. All of your modems/phones within range of the panel antenna can benefit from the boosted signal wirelessly.


*Many factors will influence the actual coverage area you will see from a repeater, including layout/floorplan, construction, and original un-amplified signal strength. Depending on your situation, you may see more or less coverage than the estimates listed here. It is not possible to guarantee coverage area.



Installation notes:

  • In order for your system to function properly, you must maintain adequate separation between the outside and inside antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will shut down). This amplifier requires approximately 10' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • You CANNOT use a traditional adapter cable that plugs directly into an antenna port on a phone/modem with this amplifier - doing so will damage your device! If you want a direct connect amplifier, see our direct connect options

Features & Benefits:

  • Installs in minutes
  • Boosts signal for all U.S. cell carriers
  • Friendly, U.S.-based customer support
  • All components needed for installation in one package
  • Simple instructions and DIY installation
  • FCC Certified
  • Extends cellular signal range
  • Reliable cell signal and more consistent data speeds
  • Faster data downloads
  • Up to 2 hours additional talk time in weak-signal areas

Package Includes:

  • Drive 3G-X amplifier
  • 859938 DC power supply (AC power supply available separately)
  • 301152 Slim Low Profile Antenna
  • 311104 NMO Omni Directional Antenna
  • 901152 3/4" NMO w/ 14 ft RG174 cable

Specifications:

  • Part Number: 470411
  • Frequency Range:
    • Band 5: 850mhz
    • Band 25: 1900mhz
  • Max Gain: 50 dB
  • Power Requirements: 12V/3.3A
  • Impedance: 50ohms
  • Connectors: SMA-Female
  • Dimensions: 4.5 x 6.44 x 1.19 in / 11.43 x 16.35 x 3.02 cm (amplifier)
  • Weight: 1.195 lbs / .54 kg (amplifier)

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
