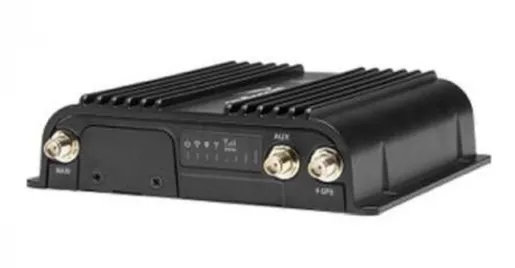

Cradlepoint NetCloud Essentials for Mobile with IBR900-600M LTE Advanced Router - 1 Year


1 Customer Review 1 Questions 73 Support Docs
In Stock
Item Number: 8080
Model: MA1-0900600M-NNA
Quantity:

Price:

$1,025.00

The IBR900 Solution does not include antennas. Two cellular antennas are required to use the embedded modem, and two WiFi antennas are required to use the wireless access point. A GPS antenna is only required if you plan to use the active GPS feature.
Select Antennas (required) - details
This router only includes the direct-wire GPIO power cable. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (recommended) - details
NetCloud Essentials for Mobile Routers includes NetCloud Manager Prime. Upgrading to the Advanced package adds the NetCloud Manager Enterprise features, including Traffic Analytics and CP Secure Web Filter.
Upgrade to NetCloud Advanced - details
Related Products
Cradlepoint NetCloud Essentials for Mobile - IBR900-600M - 3 Yr
$1,320.00
Cradlepoint NetCloud Essentials for Mobile - IBR900-600M - 5 Yr
$1,627.00

The IBR900 Essentials Solutions package includes the IBR900-600M router and support for 1 year:

  • NetCloud Software (NetCloud Manager Prime, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

Business-critical M2M and IoT applications need robust connectivity and dependable Gigabit-class LTE network platforms. Cradlepoint routers and Cradlepoint antennas, along with NetCloud software solutions, ensure that your network is managed well and can handle the demands required. This package includes one year of NetCloud software (including NetCloud Manager Prime, NetCloud OS and NetCloud Perimeter) as well as 24/7 Cradlepoint support and a limited lifetime warranty. It also includes the ruggedized, robust Cradlepoint COR IBR900 Router with Cat 11 600-M LTE Advanced Modem. This embedded router is ideal for in-vehicle operations and features dual-band Wi-Fi with COR Extensibility dock for multi-link dependability, mobile SD-WAN for optimized multi-link LTE connectivity and GPS for AVL integration and location tracking. The Cradlepoint IBR900 is a tough, compact router that withstands vibration, shock, humidity, dust and splash. The hardware, along with the cloud management, makes this IBR900 Essentials package a smart choice.

Features:

  • NetCloud Essentials for Mobile with IBR900-600M LTE Advanced Router, One (1) Year
  • The Cradlepoint COR IBR900 is ideal for business-critical applications, M2M settings and vehicle usage
  • Embedded Cat 11 LTE (a second MC400 can be added via the Extensibility Dock), 2 Wired WAN, 1 USB, WiFi as WAN*
  • Embedded Modem Networks Supported: LTE bands: 1–5, 7–8, 12–13, 17, 20, 25–26, 28–30, 66, 38, 40–41; HSPA+ bands: 1, 2, 4, 5, 8
  • Dual-band Wi-Fi 2.4Ghz and 5.0GHz dual-concurrent 802.11 a/b/g/n/ac
  • Two (2) configurable Ethernet ports 10/100/1000 WAN/LAN
  • Only the direct wire GPIO cable is included with this model
  • Router sizes measures approximately 4.6” x 4.5” x 1.2"

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

ibr600c-data-sheet(7458).pdf
ibr900-data-sheet(7098).pdf
ibr900-product-brief-final(7098).pdf



Features:

  • Supports carrier aggregation with LTE Advanced and SIM-based auto-carrier selection
  • Fully supported in Cradlepoint NetCloud: cloud management, cloud networking
  • Ruggedized for vibration, shock, dust, splash, and humidity
  • Gigabit WiFi (dual-band, dual-concurrent 2.4/5 GHz 802.11 a/b/g/n/ac Wave 2
  • Gigabit Ethernet ports
  • Supports Extensibility Platform (including COR Extensibility Dock)
  • Ignition sensing
  • Active GPS support

Technical Specifications

  • WAN
    • Dual-modem capable with optional COR Extensibility Dock
    • 600M: LTE Advanced 600 Mbps LTE/HSPA+ (SIM-based, Auto-carrier Selection for all North American, European, and Asia Pacific carriers; includes support for 700 MHz Band 28 in Asia Pacific)
    • WiFi as WAN, with WPA2 Enterprise Authentication for WiFi as WAN2
    • Failover/Failback
    • Load Balancing
    • Advanced Modem Failure Check
    • WAN Port Speed Control
    • WAN/LAN Affinity
    • IP Passthrough
    • Standby
  • LAN
    • VLAN 802.1Q
    • DHCP Server, Client, Relay
    • DNS and DNS Proxy
    • DynDNS
    • UPnP
    • DMZ
    • Multicast/Multicast Proxy
    • QoS (DSCP and Priority Queuing)
    • MAC Address Filtering
  • WiFi
    • Dual-band, dual-concurrent
    • 802.11 a/b/g/n/ac wave 2
    • MU-MIMO and 256 QAM support
    • Up to 128 connected devices (64 per radio – 2.4 GHz and 5 GHz)
    • Multiple SSIDs: 2 per radio (4 total)
    • WPA2 Enterprise (WiFi)
    • Hotspot/Captive Portal
    • SSID-based Priority
    • Client Mode for faster data offload
  • Management
    • Cradlepoint Enterprise Cloud Manager1
    • Web UI, API, CLI
    • Active GPS support on all models
    • Data Usage Alerts (router and per client)
    • Advanced Troubleshooting (support)
    • Device Alerts
    • SNMP
    • SMS control
    • Serial Redirector
    • Auto APN recovery
    • Syslog
  • VPN and Routing
    • IPsec Tunnel – up to five concurrent sessions
    • L2TP2
    • GRE Tunnel
    • OSPF/BGP/RIP2
    • Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
    • Per-Interface Routing
    • Routing Rules
    • Policy-based Routing
    • NAT-less Routing
    • Virtual Server/Port Forwarding
    • NEMO/DMNR2
    • IPv6
    • VRRP2
    • STP2
    • NHRP2
    • VTI Tunnel support
    • OpenVPN support
    • CP Secure VPN compatible
    • Serial PAD Mode
  • Security
    • RADIUS and TACACS+ support*
      • *Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
    • 802.1x authentication for Ethernet
    • Zsacler integration2
    • Certificate support
    • ALGs
    • MAC Address Filtering
    • Advanced Security Mode (local user management only)
    • Per-Client Web Filtering
    • IP Filtering
    • Content Filtering (basic)
    • Website Filtering
    • Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
  • Cloud Optimized IP Communications
    • Automated WAN Failover/Failback support
    • WAN Affinity and QoS allow prioritization of VoIP services
    • Advanced VPN connectivity options to HQ
    • SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
    • MAC Address Filtering
    • 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
    • Private Network support (wired and 4G WAN)
    • Cloud-based management1

1 – Enterprise Cloud Manager requires a subscription.

2 – Extended Enterprise License requires a subscription.


Specifications:

  • WAN
    • Dual-modem capable with optional IBR900/IBR950 Dual-Modem Dock
    • Integrated 600M LTE Advanced 600 Mbps modem (with DC-HSPA+ failover)
    • Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
    • WiFi as WAN, Metro WiFi; 2x2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
  • LAN
    • Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2
    • Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default LAN
    • Serial console support for Out-of-Band Management of a connected device

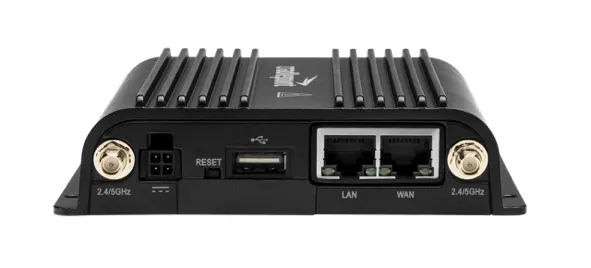

  • PORTS
    • Power
    • 2-wire GPIO
    • Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock
    • USB 2.0
    • Two Ethernet LAN/WAN
    • Two cellular antenna connectors (SMA)
    • One active GPS antenna connector (SMA)
    • Two WiFi antenna connectors (R-SMA)
    • 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
  • TEMPERATURE
    • −30 °C to 70 °C (−22 °F to 158 °F) ambient air operating
    • −40 °C to 85 °C (−40 °F to 185 °F) storage
  • HUMIDITY (NON-CONDENSING)
    • 5% to 95% operating
    • 5% to 95% storage
  • POWER
    • DC input steady state voltage range: 9–33 VDC (requires inline fuse for vehicle installations)
      • For 9–24 VDC installations, use a 3 A fuse
      • For > 24 VDC installations, use a 2.5 A fuse
    • Recommended inline fuse for vehicle installations: 1.5 A fast-blow
    • Reverse polarity and transient voltage protection per ISO 7637-2
    • Ignition sensing (automatic ON and time-delay OFF)
    • Power consumption:
      • Idle: 4 W
      • WiFi Tx/Rx: 9 W
      • LTE Tx/Rx: 6.25 W
      • 12 VDC / 2 A adapter recommended
  • WIFI POWER
    • 2.4 GHz: 18 dBm conducted
    • 5 GHz VHT20: 17.5 dBm conducted
    • 5 GHz VHT40: 17 dBm conducted
    • 5 GHz VHT80: 16.5 dBm conducted
  • SIZE
    • 4.6 x 4.5 x 1.2 in (118 x 113.5 x 29.3 mm)
  • WEIGHT
    • 14 oz (400 g)
  • CERTIFICATIONS
    • FCC, CE, IC
    • AS, NZS, SGP (IMDA)
    • WiFi Alliance (IBR900 only) – 802.11a/b/g/n/ac wave 2 certified
    • Safety: UL/CUL, CB Scheme, EN60950-1
    • Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
    • Ingress Protection: compliant with IP54 (includes protection from dust and splashing water)
    • Materials: WEEE, RoHS, RoHS-2, California Prop 65
    • Telecom: PTCRB/CTIA, GCF-CC
    • Regulatory Models: S5A643A, S5A644A, S5A648A, S5A701A, S5A706A
  • GPS
    • GPS Protocols: TAIP and NMEA 0183 V3.0
    • Satellite channels: Maximum 40 channels, simultaneous tracking
    • Concurrent standalone GPS, GLONASS, BeiDou and Galileo
    • 1 Hz refresh rate
    • Accuracy:
      • < 2 m: 50%
      • < 5 m: 90%
      • Horizontal: < 2 m (50%); < 5 m (90%)
      • Altitude: < 4 m (50%); < 8 m (90%)
      • Velocity: < 0.2 m/s
    • Acquisition (measured with signal strength = -135 dBm):
      • Hot start: 1 second
      • Warm start: 29 seconds
      • Cold start: 32 seconds
    • Sensitivity
      • Tracking: −160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time when in sequential tracking mode)
      • Acquisition (standalone): −145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the device can still detect an in-view satellite 50% of the time)
    • Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)
  • MODEM SPECIFICATIONS (600M-NA)
    • Technology: LTE Advanced, HSPA+
    • Downlink Rates: LTE 600 Mbps, HSPA+ 42.2 Mbps
    • Uplink Rates: LTE 75 Mbps, HSPA+ 5.76 Mbps
    • Frequency Bands:
      • LTE Bands
        • LTE FDD: 1–5, 7–8, 12–13, 17, 20, 25–26, 28–30, 66
        • LTE TDD: 38, 40–41
        • HSPA+: 1–2, 4–5, 8
    • LTE 2DL Carrier Aggregation Combinations:
      • B2+B2, B2+B4, B2+B5, B2+B12, B2+B13, B2+B17, B2+B29, B2+B30, B4+B4, B4+B5, B4+B7, B4+B12, B4+B13, B4+B17, B4+B29, B4+B30, B5+B30, B12+B12, B12+B30, B25+B25, B25+B26, B25+B41, B26+B41, B29+B30, B41+B41, B1+B20, B3+B3, B3+B7, B3+B20, B3+B38, B7+B7, B7+B8, B7+B20, B38+B38, B1+B3, B1+B7, B1+B28, B3+B8, B3+B28, B5+B7, B5+B40, B7+B8, B7+B20
    • LTE 3DL Carrier Aggregation Combinations:
      • B2+B2+B12/17, B2+B2+B13, B2+B2+B4, B2+B4+B5, B2+B4+B12, B2+B4+B13, B2+B4+B29,B2+B5+B30,
        B2+B12+B12, B2+B12+B30, B2+B29+B30, B4+B4+B5, B4+B4+B7, B4+B4+B12, B4+B4+B13, B4+B5+B30, B4+B12+B12, B4+B12+B30, B4+B29+B30, B25+B26+B41, B25+B41+B41, B26+B41+B41, B41+B41+B41, B1+B3+B20, B1+B7+B20, B3+B3+B7, B3+B3+B20, B3+B7+B20, B3+B7+B7, B3+B20+B38, B3+B38+B38, B3+B3+B5, B3+B3+B8, B3+B7+B7, B3+B7+B28, B7+B7+B28, B28+B40+B40, B40+B40+B40
    • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 4, 5, 8
    • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1
    • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf-cm)
    • GPS: active GPS support
    • SMS: SMS support
    • Industry Standards & Certs: CE, FCC, GCF-CC, IC, PTCRB, AT&T, Sprint, Verizon, Verizon NEMO/DMNR for Primary Wireless Access

What's in the box:

  • COR IBR900-600M Integrated Broadband Router w/ integrated mounting bracket
  • DC GPIO/power cable
  • Quick Start Guide, regulatory and warranty information
  • Extra SIM door screws (2)

Filter Reviews
   Last 2 Weeks (0)
    100% (1)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (1)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 09/26/2019 by Anthony. (Show Low, AZ)
The pre-sales team at 5G are top notch and made purchasing the correct equipment easy.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question
Sort By:

Does the Cradlepoint IBR900 support Verizon 3G if 4G LTE is not available?

No, since Verizon 3G service was shutdown, most LTE modems (category 4 and above) like this model is restricted to Verizon 4G LTE only. Of course with this model, it is also compatible with AT&T and T-Mobile 4G LTE.


Cradlepoint COR: Vehicle Installation Guide Download installation guide/manual
Cradlepoint NetCloud User Manual Download installation guide/manual
Cradlepoint COR IBR9x0 User Manual Download installation guide/manual

Purchasing this product gets you access to the following exclusive 5Gstore resources:
Port Forwarding - Troubleshooting Checklist 12/15/2021
Cradlepoint OpenVPN 12/01/2020
Cradlepoint SSH 10/23/2020
Cradlepoint Data Usage Failover 10/23/2020
How to Locate Your Local IP Address 08/10/2015
CP Modem Comparison 4/26/19 05/09/2019
Cradlepoint - Checking Your Cellular Signal 01/18/2019
Active Ping CradlePoint 2018 01/15/2018
Troubleshooting Ethernet Modems 06/07/2017
Cradlepoint 6.0 - WAN Data Usage Rules 10/13/2016
Cradlepoint 6.0 Dynamic DNS Setup 05/20/2016
Comcast Business Class Router - IP Passthrough 05/02/2016
Remote Play PS4 04/22/2016
CradlePoint 6.0 Modem MDN Mobile Number Tip Sheet 01/15/2016
CradlePoint 6.0 Data Usage Tip Sheet 12/24/2015
CradlePoint 6.0 GPS Tip Sheet 12/23/2015
CradlePoint 6.0 Device Information Tip Sheet 12/22/2015
CradlePoint 6.0 Failback Tip Sheet 12/22/2015
CradlePoint 6.0 WAN Pings Tip Sheet 12/14/2015
CradlePoint 6.0 LAN to WAN Change VLAN 12/09/2015
CradlePoint 6.0 LAN IP Address Change Tip Sheet 12/08/2015
CradlePoint 6.0 GRE Tunnel Tip Sheet 12/03/2015
CradlePoint 6.0 Disable Internet Bounce Tip Sheet 11/18/2015
CradlePoint 6.0 IP Passthrough Manual Tip Sheet 11/11/2015
Cradlepoint FW 6.0 - Xbox One Gaming 11/04/2015
CradlePoint 6.0 3G/4G Lock Tip Sheet 10/30/2015
CradlePoint 6.0 Hospot Tip Sheet 10/27/2015
CradlePoint 6.0 Statistics Tip Sheet 10/27/2015
Cradlepoint FW 6.0 - PS4 Gaming 10/27/2015
CradlePoint 6.0 Modem Firmware Up/Change 10/23/2015
CradlePoint 6.0 Modem Ping Speed Test Tip Sheet 10/23/2015
Cradlepoint FW 6.0 - Full VPN Tunnel Setup Example 10/22/2015
Cradlepoint FW 6.0 - SSL Certificate Based VPN 10/22/2015
Cradlepoint FW 6.0 - Dual VPN Tunnels w/ Failover 10/22/2015
Cradlepoint FW 6.0 - VPN w/ NAT-Traversal 10/22/2015
Cradlepoint FW 6.0 - VPN w/ Dynamic IPs 10/22/2015
Cradlepoint FW 6.0 - VPN w/ Static IPs 10/22/2015
CradlePoint 6.0 Wan Affinity Tip Sheet 10/22/2015
CradlePoint 6.0 DHCP Reservation Tip Sheet 10/20/2015
Cradlepoint Firmware 6 - Part 3, WiFi as WAN
Cradlepoint Firmware 6 Part 2, Connection Manager
Cradlepoint Firmware 6 - Part 1, How to Upgrade
CradlePoint 6.0 QoS Tip Sheet 10/20/2015
CradlePoint 6.0 Full Duplex Tip Sheet 10/20/2015
CradlePoint 6.0 WIFI Channel Select Tip Sheet 10/20/2015
CradlePoint 6.0 DNS Server Change Tip Sheet 10/20/2015
CradlePoint 6.0 Port Forwarding Tip Sheet 10/19/2015
CradlePoint 6.0 DMZ Tip Sheet 10/19/2015
CradlePoint 6.0 IP Passthrough Setup Tip Sheet 10/19/2015
CradlePoint 6.0 WIFI as WAN Tip Sheet 10/19/2015
CradlePoint 6.0 Remote Admin Tip Sheet 10/16/2015
CradlePoint 6.0 Watchdog Reboot Tip Sheet 10/16/2015
CradlePoint 6.0 Upgrade Save Restore 10/16/2015
CradlePoint 6.0 First Time Setup Tip Sheet 10/16/2015
Cradlepoint Firmware 6 Higher Static APN Tip Sheet 10/15/2015
Chain 2 Routers Tip Sheet 09/29/2015
Changing Your Router's IP Address 09/10/2015
Dynamic DNS Tip Sheet 09/03/2015
Dynamic DNS Tip Sheet 09/03/2015
IP Camera Router Tip Sheet 09/02/2015
IP Camera Router Tip Sheet 09/02/2015
Cradlepoint Hotspot Service 11/18/2015
How to Find Your Device(s)' Local IP address 06/02/2015
MAC Address Cloning 02/26/2015
Testing Ports with Telnet Tip Sheet 02/24/2015
Using a Router to Block Access to your Home Modem 02/24/2015
Setting Up Apple Airport w Cradlepoint or Peplink 02/16/2015
A Custom Appearance For Your SSID
Windows/Mac Static IP Address Tip Sheet 11/24/2014
Creating a Static Route - CP/Peplink/Pepwave 09/08/2014

If you already purchased this item from 5Gstore, Log In to the support portal to access these downloads.

Videos
