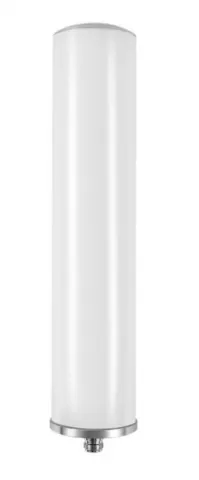

SureCall Ultra Wideband LTE/5G Omni Antenna - SC-588W
  • SureCall Ultra Wideband LTE/5G Omni Antenna - Mounting hardware

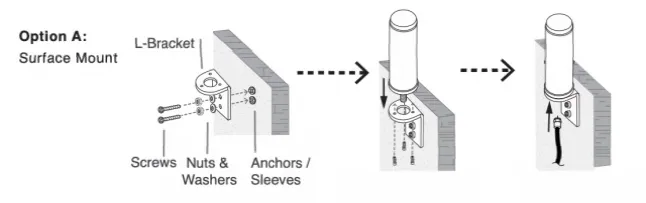

  • SureCall Ultra Wideband LTE/5G Omni Antenna - Surface mount
  • SureCall Ultra Wideband LTE/5G Omni Antenna - Pole mount

SureCall Ultra-Wideband Outdoor Omnidirectional LTE/5G Antenna (Cable Sold Separately)


1 Customer Review 1 Questions & Answers
In Stock
Item Number: 10392
Model: SC-588W
Quantity:
Have a large deployment?
Request a Quote

Price:

$99.99

This antenna does NOT include cabling. You must select a length of cable from the list.

The cables listed here are terminated in SMA/Male for use with most routers/modems. Adapters are available if you need to connect to a different type of connector - contact us if you need assistance.If you already have a compatible cable you plan to use (this antenna has an N/Female connector), you may select the "I already have a cable" option.

Cable length recommendation: Unless you plan to use an amplifier as well, we recommend using LESS THAN 50' OF CABLE to minimize signal loss. Mounting the antenna outside and reasonably high up is recommended, but using long lengths of cable for the express purpose of mounting the antenna higher up typically does not outweigh the additional loss unless the extra length allows you to mount the antenna in a location that can receive signal MUCH better than a shorter cable would.
Select a Cable (required) - details

*TOP PRODUCT 2023 & 2024*

Designed for maximum flexibility with multiple carriers and cell towers in most environments, the SureCall Omni Antenna is an omni-directional fiberglass outdoor antenna that operates in a 360° field of propagation with a range of up to 30 miles.

This ultra wide band outdoor antenna transmits and receives signals in all directions and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies.

Features:

  • Compatibility: 617-2700mhz networks, which are used by most providers in the USA, including band 71
  • Height: 12.8" tall.
  • Cable: NO cable is included with this antenna. Various lengths are available; you can select your cable above. Depending on the cable selected and the device you are using, an adapter may be needed.
  • Ground Plane: Built-in
  • Weatherproof? Yes, this antenna is designed for exterior use.
  • Mounting Requirements: The antenna includes a mounting bracket and hardware for mounting to a wall and U-bolts for pole-mount.
  • Portability: This antenna is not portable - it is designed to be mounted in a fixed location.
Do a site survey before buying this antenna! If you're purchasing this to use in just one location, we strongly recommend doing a site survey first to determine whether the antenna will help your signal and performance and to give you an idea of what kind of results you can expect from it. Start here: Will an Antenna/Amplifier Help Me?
SC_588W_Data_Sheet(10392).pdf



Specifications:

Country of Origin China
No. of Cellular Connectors 1
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector N Female
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Pole
Antenna Color White
Width (in) 2.56
Height (in) 12.8
Weight (lb) 1.55
Maximum Gain 4
Impedance Ω (Input/Output) 50
Minimum Temperature (F) -22
Maximum Temperature (F) 176
Material Fiberglass
VSWR (Voltage Standing Wave Radio) ≤2.0

Filter Reviews
   Last 2 Weeks (0)
    100% (1)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (1)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 06/10/2021 by Marty . (Fallbrook, CA)
This was purchased to replace an older model of the same antenna. The new model will receive the the new lower frequency bands in the 600 MHz range. Now just waiting for the router that can take advantage of the ability of the antenna.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

Does this antenna receive n41 band signals

Yes, band N41 uses 2469 - 2690 MHz and the SC-588W supports frequency ranges of 617-697 / 698-960 / 1710-2700 MHz.
