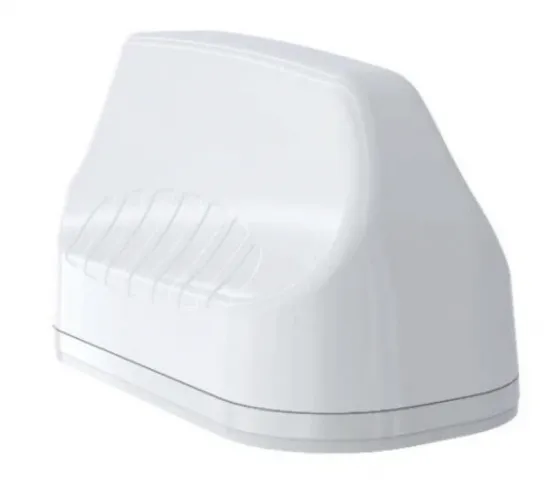

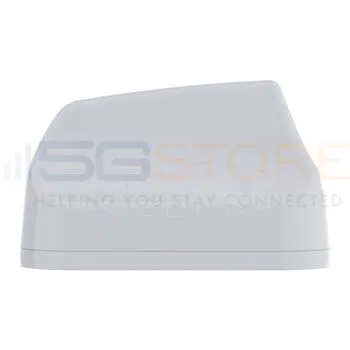

Poynting White Automotive Antenna (2xCell) - A-MIMO-0003-V2-12

Poynting Automotive Antenna for MiMo Cellular/5G - White

2 Customer Reviews 1 Questions & Answers 1 Support Docs

In Stock

Item Number: 10700
Model: A-MIMO-0003-V2-12

Quantity:

Have a large deployment?
Request a Quote

Price:

$195.50

General

Details

Customer Reviews

Q & A

Support

Accessories

Photos & Videos

Poynting Automotive Antenna for MiMo Cellular/5G - White The MIMO-3-12 is a 2-in-1 high performance multi frequency antenna within a single housing, providing two cellular antennas. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The MIMO-3-12 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band Features: Cleverly designed decorrelated antennas give superior MIMO performance Careful mechanical design provides ruggedness, corrosion, water, dust resistance (IP68) Ground plane independent: The MIMO-3 is designed with an internal ground plane, making this antenna suitable for implementation on all surface types A-MIMO-0003-V2-12 A-MIMO-0003-V2-12

Poynting

Antenna > Vehicle

$ $195.50 https://5gstore.com/product/10700_poynting_2-in-1_transportation_antenna_white

4.00 2

The MIMO-3-12 is a 2-in-1 high performance multi frequency antenna within a single housing, providing two cellular antennas. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications.

The MIMO-3-12 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band

Features:

Cleverly designed decorrelated antennas give superior MIMO performance
Careful mechanical design provides ruggedness, corrosion, water, dust resistance (IP68)
Ground plane independent: The MIMO-3 is designed with an internal ground plane, making this antenna suitable for implementation on all surface types

Technical-Specification-A-MIMO-0003-V2-15 (11022).pdf

Technical-Specification-A-MIMO-0003-V2-17 (10698).pdf

Specifications:

Country of Origin	China
No. of Cellular Connectors	2
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Vehicle
Antenna Color	White
Length (in)	5.8
Width (in)	9.9
Height (in)	5
Weight (lb)	3.25
Maximum Gain	6.2
Impedance Ω (Input/Output)	50
Cable Length (in)	78
Cable Type	RTK031
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	UV Stable ASA

Filter Reviews

Last 2 Weeks (0)

				50% (1)
				0% (0)
				50% (1)
				0% (0)
				0% (0)

		Show Brief Review
		Show 5Gstore Comments

Last 6 Months (0)

All Reviews (2)

Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 11/06/2021 by James N. (Newnan, GA)

Improved signal strength and speedtest numbers when installed on top of my RV

Date Added: 11/04/2021 by Michael W. (SUNNYVALE, CA)

This is a solid product and would have earned 5 stars for specs, quality and mounting flexibility. Unfortunately, it is outdated in that it doesn't support Band 71 (T-Online service for rural areas, ~600-700MHz) which is available in mobile cellular routers now. This is not obvious unless you read the spec sheet very carefully.

If you purchased this item, Login to write a review.

Q & A

Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

Does the Poynting automotive antenna support T-Mobile 5G?

The following frequency ranges are supported for this model:

410-470 MHz
698-960 MHz
1710-2700 MHz
3400-3800 MHz

T-Mobile uses the following bands for 5G, so support is limited:

Band n71 (600 MHz)
Band n41 (2.5 GHz)
Band n258 (24 GHz)
Band n260 (39 GHz)
Band n261 (28 GHz)

Purchasing this product gets you access to the following exclusive 5Gstore resources:

Poynting XPOL-0002-V3-US Data Sheet

01/14/2022

If you already purchased this item from 5Gstore, Log In to the support portal to access these downloads.
