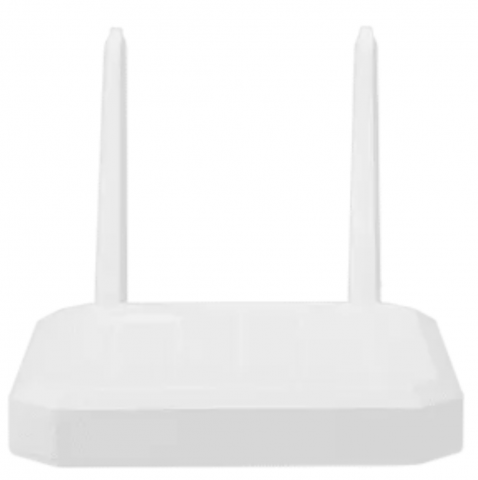

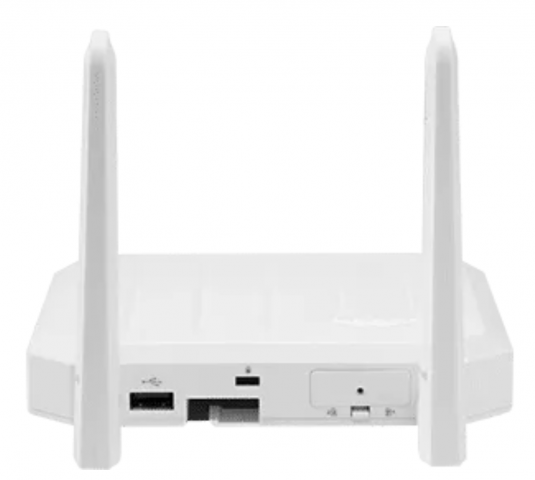

Cradlepoint NetCloud Essentials for Branch with L950 Cat 7 Private LTE Advanced Adapter - 5 Years

Call for Availability

Item Number: 10837
Model: BB05-0950C7A-N0
Quantity:

Price:

$1,084.00

NetCloud Essentials for Branch Adapters includes NetCloud Manager Standard. Upgrading to the Advanced package adds the NetCloud Manager Prime features, including advanced routing protocols, security, and analytics combined with location-based insights and cloud secure Out-of-Band Management for more powerful network management.
Upgrade to NetCloud Advanced - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The L950 Essentials Solutions package includes the L950-Cat 7 router and support for 5 years:

  • NetCloud Software (NetCloud Manager Standard, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

The Cradlepoint L950 Series cellular broadband adapter provides a cellular WAN link that can be added to networking equipment for a variety of use cases. For failover, it provides a secondary WAN connection in the event of a primary WAN link disruption to keep the network operational. The L950 can augment as needed with a cellular connection based on established policies, for specific applications or in the event of diminished WAN performance. Organizations can even establish a secure day-1 LTE network connection to get operations running while waiting for a wired connection to be installed.

These endpoints can be configured at scale with NetCloud to offer a full range of zero-touch deployment, troubleshooting and management features and integrate into existing configurations with standards-based routing, traffic shaping and VPN support. Using the NetCloud Health dashboard, view failover data, and see quantified ROI in the NetCloud Insights failover report.

To mitigate the effects of an unreachable router, the L950 offers efficient, advanced Out-of-Band Management. Network administrators can connect to the router and other in-line devices over the air, even if IP and Ethernet are unavailable on the router, improving uptime and reducing truck rolls.

Router Features:

  • Internet Connections Supported: 1 Embedded Cat 7 LTE, 2 WAN
  • Networks Supported for Embedded Modem: LTE: B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71; HSPA+: B2, B4, B5
  • WiFi Standard: N/A
  • WiFi Range: N/A
  • Ethernet ports: 2 x configurable GbE LAN/WAN
  • Size: 5.7" x 5.7" x 1.2"



Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Female
No. of LAN Ports 2
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 940 Mbps
SIM Card Size 4FF
Length (in) 5.7
Width (in) 5.7
Height (in) 1.2
Weight (lb) 0.9
Minimum Temperature (F) 32
Maximum Temperature (F) 122
Material Stylized Plastic
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
Cloud Management Included Yes
Power Input 802.3af PSE Type 1 (15W)
Bluetooth No
Bonding Support No
IP Passthrough Yes
