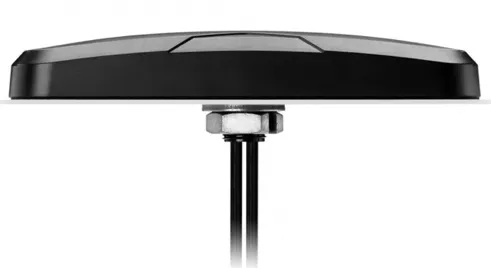

Taoglas Monsoon MA170.A.BI.001 2 5G/4G MIMO Permanent Mount Antenna - MA170.A.BI.001

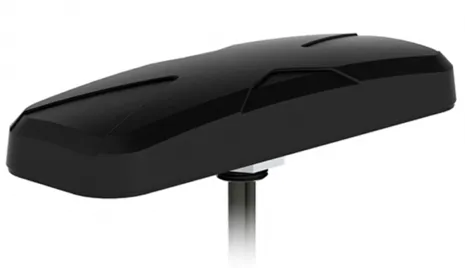

  • Taoglas Monsoon MA170.A.BI.001 2 5G/4G MIMO Permanent Mount Antenna - Top View for MA170.A.BI.001

Taoglas Monsoon MA170.A.BI.001 2 5G/4G MIMO Permanent Mount Antenna

In Stock
Item Number: 13116
Model: MA170.A.BI.001
Quantity:
Have a large deployment?
Request a Quote

Price:

$106.45

Sale Price:

$88.99

You Save:

$17.46

The MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The Taoglas Monsoon MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The MA170 delivers best in class 5G/4G antenna performance.

Typical applications include:

  • HD Video over LTE
  • First Responder and Emergency Services
  • Intelligent Transport Systems
  • Internet of Things (IoT market)
  • High Definition Video Broadcast Systems
  • Wireless LTE MIMO M2M Devices
  • Digital Signage

LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA170 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.

Technical Specification

Name

Value

Antenna Type

Combination

Impedance

50 Ω

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Mounting Style

Screw

Termination Style

Connector

Antenna Connector Type

SMA (M)

Cable Type

TGC-200

Connector Body Style

Straight

Polarity

Linear

Frequency Range

698MHz To 5925MHz

Connector Polarity

Normal

Cable Length (mm)

3000

Packaging

PE Bag, Carton

VSWR

2:1

IP Rating

IP69k

RoHS

Yes

Gain

4.04

Length (in)

8.03

Width (in)

2.71

Height (in)

1.22

Weight (oz)

19.40
MA170.A.BI.001(13116).pdf



Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Screw-on
Antenna Color Black
Length (in) 8.03
Width (in) 2.71
Height (in) 1.22
Maximum Gain 4.04
Impedance Ω (Input/Output) 50
Cable Length (in) 118.11
Cable Type TGC-200
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material PC and ABS
