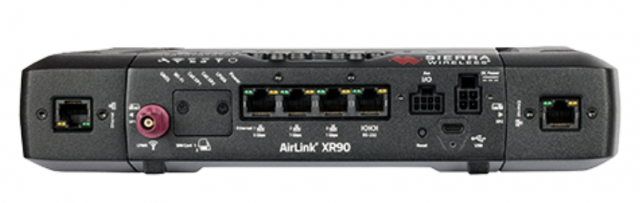

Sierra Wireless AirLink XR90 Vehicle Router with 5G/Cat 20 LTE Modem


1 Customer Review 20 Support Docs
In Stock
Item Number: 10928
Model: 1104785
Quantity:
Have a large deployment?
Request a Quote

Price:

$2,299.00

AirLink Premium combines out-of-band management with a best-in-class remote network management portal. Compatible with only the XR90 router this subscription service ensures your mission critical infrastructure operates at peak efficiency and is always accessible.
Upgrade AirLink Premium (XR90, new device) - details
Bundle & Save Compare All...
$480 $432
$396 $356.40
$672 $604.53

The supercharged AirLink XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4x4 MIMO Wi-Fi 6 antennas. It is the highest performing, most flexible router in the Sierra portfolio. It supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability.

The AirLink XR90 is a fully-supported, out-of-the box solution complete with integrated device management, advanced mobility reporting and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction.

Router Features:

  • Internet Connections Supported: 1 Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN
  • Networks Supported for Embedded Modem:
    • 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
    • LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
  • WiFi Standard: Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps
  • Ports: 1x5Gbps LAN, 3x1Gbps LAN, 2 RS-232 serial
  • Power supply: Hardwire DC power supply; AC power supply is available separately
  • Size: 6.69" x 8.66" in x 2.08"
Multi-Network Vehicle Router _ AirLink MG90 (1104785).pdf



Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 4
No. of GPS Connectors 1
Cellular Connector FAKRA CODE D Violet Male
WiFi Connector FAKRA CODE I Beige Female
GPS Connector FAKRA CODE C Blue Female
No. of LAN Ports 4
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 5 Gbps
SIM Card Size 2FF
Length (in) 8.7
Width (in) 8.7
Height (in) 2.1
Weight (lb) 5.8
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Antennas Included No
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input 7 to 36 VDC
Bluetooth Yes
Bonding Support No
IP Passthrough Yes
