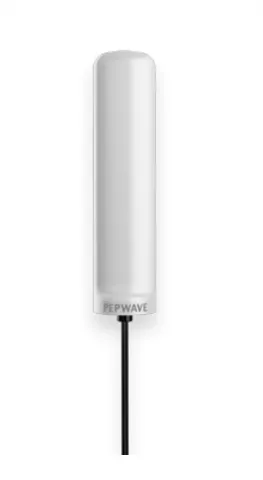

Pepwave 20G Maritime Antenna (2 x Cellular/5G, 1 x GPS) - ANT-MR-20G-S-W-6
  • Pepwave 20G Maritime Antenna (2 x Cellular/5G, 1 x GPS) - Vertical pole mount
  • Pepwave 20G Maritime Antenna (2 x Cellular/5G, 1 x GPS) - Horizontal pole mount
  • Pepwave 20G Maritime Antenna (2 x Cellular/5G, 1 x GPS) - Included Components

Pepwave 20G Maritime Antenna for MiMo Cellular/5G & GPS

1 Questions & Answers 31 Support Docs
In Stock
Item Number: 11194
Model: ANT-MR-20G-S-W-6
Quantity:
Have a large deployment?
Request a Quote

Price:

$449.00

Peplink offers 1" 14TPI male adapter(Rubber Gasket is included) to add on that is not included with the purchase of the Maritime 20G Antenna. This adapter is compatible with: MAX HD1 Dome, MAX HD2 Dome, Mobility 02, Mobility 20G, Mobility 22G, Mobility 40G, Maritime 20G, Maritime 40G
Optional Deck Mount hardware: - details

Designed for Maritime Applications
IP68 rated, durable and UV-stable housing anomnidirectional antenna for the best signal reception.

Designed for 5G
Optimal gain, 2x2 MIMO antenna configuration for the best performance for maritime installations.

Ultra-wide bandwidth
Wide frequency range (410-6000MHz) for supporting LTE and 5G connectivity.

Easy installation
Supports standard maritime 1" 14 TPI thread mount and also has an L-shape mount for non-standard installations.

Features:

  • 2x2 MIMO 5G ready cellular antenna system with GPS receiver
  • Cellular frequencies from 410MHz to 6000MHz
  • IP68 rated
  • 3 x 6.5' cables with SMA Male connectors

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Male
GPS Connector SMA Male
Antenna Type Maritime
Antenna Style Omni
Antenna Mount Standard Marine
Antenna Color White
Width (in) 3.78
Height (in) 19.04
Weight (lb) 5.44
Maximum Gain 6.8
Impedance Ω (Input/Output) 50
Cable Length (in) 78
Cable Type CFD200 (cellular) and RG174 (GPS)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material UV stable PC

There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

Can I paint the Peplink Mobility or Maritime antennas?

Yes you can paint the Peplink antennas and it will not void your warranty. Just be sure to NOT use any paints with metallic flake in it. This can interfere with the signal gain.
