Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide - IX10-00G4

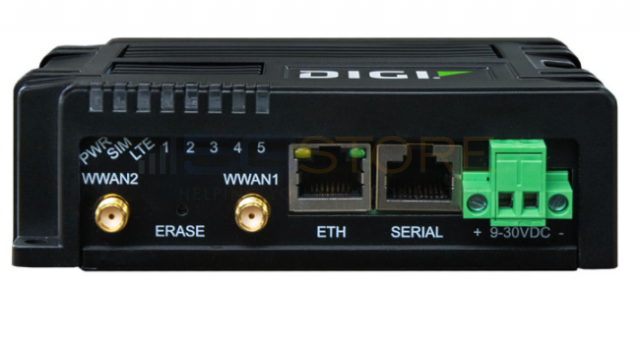

  • Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide - Alternate View - Front

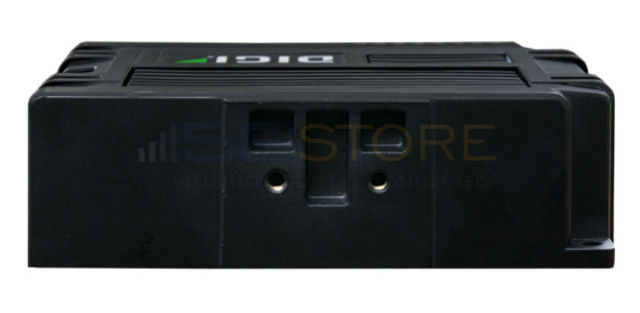

  • Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide - Alternate View - Back

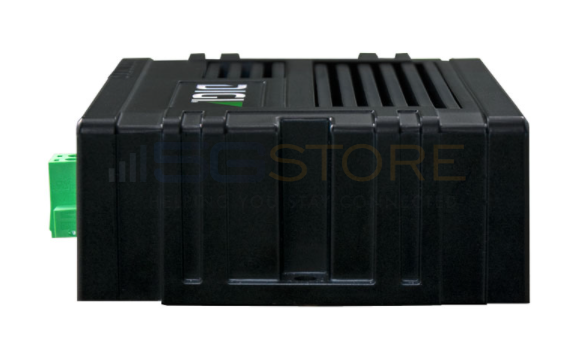

  • Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide - Alternate View - Left Side

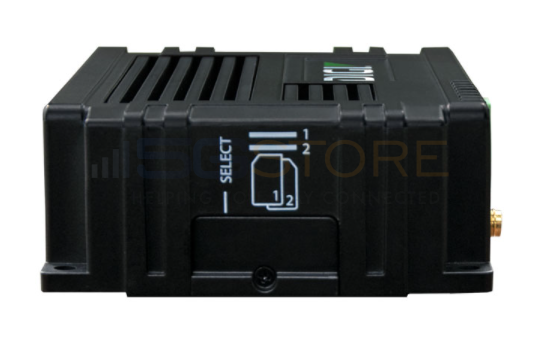

  • Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide - Alternate View - Right Side

Digi 360 Cellular Solution Package for Digi IX10 (1 year) - LTE Cat 4, Worldwide


1 Customer Review 26 Support Docs
In Stock
Item Number: 11353
Model: IX10-00G4
Quantity:
Have a large deployment?
Request a Quote

Price:

$349.00

Cellular antennas are NOT included - two antennas are required for the embedded modem.
Select Antennas (required) - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
An optional 2 year or 4 year Digi 360 extension provides a total of 3 or 5 year Digi 360 benefits.
Optional Digi 360 Extension (extended lead times): - details

Digi IX10 is a full-featured cellular router built for trouble-free reliability over a long service life. Its flexible power and connectivity options make it a versatile and cost-effective choice for industrial, digital signage, ATMs, lottery terminals, kiosks, and other unattended retail applications that need to provide secure transactions.

Digi IX10 features an RJ-45 serial port supporting both RS-232 and RS-485, as well as built-in dual SIMs for redundant connection. It is capable of operating independently on public LTE networks, with features to assist in network control and management, such as VLAN support, load balancing between cellular and Ethernet WANs, dual APNs, and configurable APN search. Digi IX10 also offers low-touch and no-touch provisioning.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® — the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance, and support for hundreds or even thousands of remote Digi devices. Digi RM empowers you to evaluate, update and configure your Digi enterprise products while providing easy visibility into the health of your network.

In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management access to edge devices via Digi IX10 via serial port and command-line interface. In addition, Digi IX10 offers the convenience of a global SKU which simplifies inventory control for global distribution and deployment.

SPECIFICATIONS

  • Model: Digi IX10
  • Base Hardware: (1) RJ-45 Ethernet, (1) RS-232/485
  • LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
  • 3G: B1, B2, B4, B5, B6, B8, B19
  • 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
  • Redundant connectivity with dual SIMs and Digi SureLink®
  • Built-in Digi TrustFence® for device security, device identity and data privacy
  • Includes 1 year of the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • No accessories

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

digi-ix10-ds(11353).pdf
90002399(11353).pdf



Specifications:

Country of Origin China
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 100 MBps
SIM Card Size 2FF
Length (in) 4.65
Width (in) 3.46
Height (in) 1.38
Weight (lb) 0.86
Minimum Temperature (F) -40
Maximum Temperature (F) 158
Material Glass-filled polyphenylene sulphide (PPS) / IP30
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
Cloud Management Included No
Power Input 9 - 30 VDC, 1.0 A maximum
Bluetooth No
Bonding Support No
IP Passthrough Yes
