Digi IX20 - LTE Cat 4 Global with Accessories

In Stock

Item Number: 11355
Model: IX20-0AG4
Quantity:
Have a large deployment?
Request a Quote

Price:

$679.00

The following are optional accessories that are often purchased with this device and are recommended by the 5Gstore Support team. Have questions - just ask and we are happy to help!
Optional Accessories: - details
Digi Offers an optional power supply with plug tips for US, UK, EU, AU (Green power on indicator LED).
Optional Power Supply: - details

Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.

The high-performance architecture of the Digi IX20 router provides automatic and software-selectable primary and backup WWAN connectivity over multi-carrier cellular LTE. Digi IX20 supports advanced security (stateful firewall, MAC filtering and VPN), cellular redundancy (Digi SureLink®) and management (SNMP, event logging, analyzer trace and QOS), facilitating use in PCI or NERC-CIP compliant applications. FirstNet Ready™ models are designed to meet the demands of primary responders for critical communications.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support, even thousands of devices. Digi RM also provides secure, out-of-band management access to Digi IX20 through a serial port and command-line interface.

The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE® plug-in LTE modems that can be changed out or upgraded without replacing the entire router.

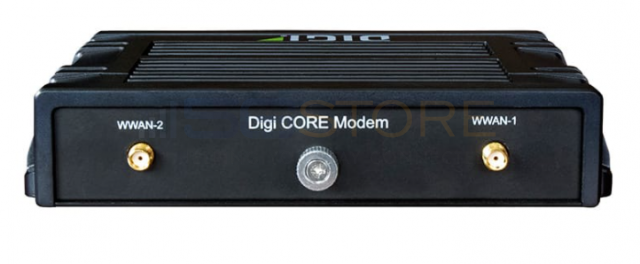

Digi CORE plug-in LTE modem with dual SIM support

Digi CORE plug-in modems offer dual SIM cellular connectivity and a locking mechanism for added protection. As new LTE technologies become available Digi will launch additional versions of Digi CORE plug-in modems, which may be available for use in Digi IX20, Digi EX15, Digi 6350-SR, Digi 6330-MX, Digi 6310-DX, Digi Connect® IT 4, Digi AnywhereUSB® Plus and future products. The modular nature of Digi CORE plug-in modems helps mitigate technological obsolescence by allowing customers to upgrade to newer LTE standards without replacing their Digi router.



SPECIFICATIONS

  • Cellular connectivity:
    • LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4
      • LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41;
      • 3G: B1, B2, B4, B5, B6, B8, B19;
      • 2G: 850 / 900 / 1800 / 1900 MHz
    • Connectors: (2) 50 Ω SMA (center pin: female)
    • SIM slots: (2) Mini-SIM (2FF)
    • SIM security: Secured in cellular module
  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v2/v3 (user installed/managed)
    • Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH)
    • Management / troubleshooting tools: FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
    • Memory: 256 MB RAM, 256 MB Flash
  • Ethernet:
    • Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
  • Serial:
    • (1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
  • Physical:
    • Dimensions (L x W x H): 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
    • Weight: 0.65 kg (1.4 lb)
    • Status LEDs: Power, Internet, Wi-Fi, SIM 1, SIM 2, Signal Strength (5), LTE
    • Enclosure: Glass-filled polyphenylene sulphide (PPS) / IP30
  • Power requirements:
    • Power input: 9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included
    • Power consumption: 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
  • Environmental:
    • Operating temperature: -40° C to 70° C (-40° F to 158° F)
    • Storage temperature: -40° C to 85° C (-40° F to 185° F)
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Cellular: Visit www.digi.com/resources/certifications for latest cellular certifications
    • Safety: IEC62368-1, CB, EN62311
    • Environmental: ROH53
    • Emissions / Immunity: CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
  • Product warranty3-year
  • Accessories: Includes DIN rail clip, power supply, (2) cellular antenna and Ethernet cable (view accessories)

What's in the box

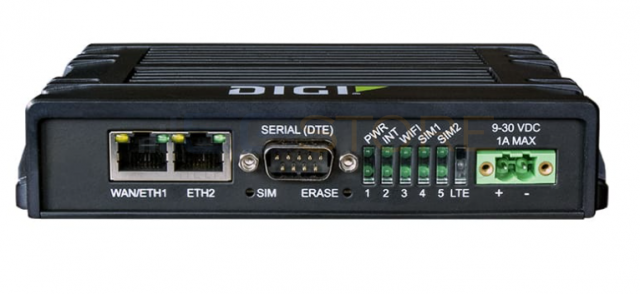

  • Digi IX20 - LTE Cat 4 Global, (2) Ethernet, DB-9 RS-232
  • Power supply with plug tips for US, UK, EU, AU: 76002104
  • Cellular antenna - 700 MHz to 2.7 GHz: 76000926
  • Cellular antenna - 600 MHz to 6 GHz: 76002114
  • DIN rail clip kit: 76002095
  • DIN rail mounting bracket kit: 76002093
  • Ethernet cable - 2 m (6 ft): 76002106
