Panorama 4x4 MiMo 4G/5G Transit Antenna - TRNMG4-6-60-Q

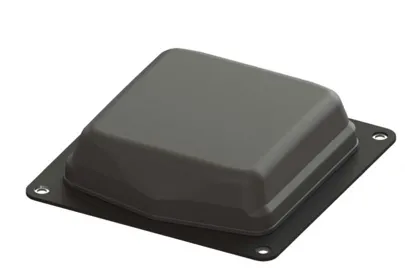

Panorama 4x4 MiMo 4G/5G Transit Antenna (Black)

Call for Availability
Item Number: 13431
Model: TRNMG4-6-60-Q
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,515.20

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

TRNM[X]4-6-60-[X]- 4×4 MiMo Rail Antenna

The TRNM[X]4-6-60-[X] MiMo antenna series is designed for use on trains, trams and buses underground or over ground. Incorporating four wide band elements covering the frequency range 617MHz to 6000MHz, the TRNM[X]4-6-60-[X] series is versatile and future proof.

The TRNM[X]4-6-60-[X] series covers global 4G/5G frequencies with 4x4 MiMo.

Housed in a high impact, flame retardant Ultem housing, the antenna is fully weatherproof ensuring a long service life with no compromise in performance.

The TRNM[X]4-6-60-[X] antenna meets stringent industry standards including EN50155, EN45545-2 (HL 1-3), EN50124-1* and is ingress protected to IP69k when correctly installed.

Specification

Pattern Omnidirectional
Max Input Power(W) 60
Typical VSWR <2:1
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements None
GPS Frequency Range 1562-1612MHz; 1559-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements None
Colour Black
Length 350 (mm) | 13.78 (in)
Width 350 (mm) | 13.78 (in)
Height 85 (mm) | 3.35 (in)
Operating Temperature -40°/ +85°C (-40.0°/ +185.0°F)
Connector (WIFI) N (f)
Connector (GPS) TNC (m)
Connector (LTE) N (f)
Mounting Type Fixed Panel
Mounting Methods Panel
IP Rating IP69K
Cable Flammability EN45545-2 HL3
Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; Band 71 600MHz ready; CBRS; GNSS; WIFI 6E



TRNMX4-6-60-X(13431).pdf



Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 4
No. of GPS Connectors 1
Cellular Connector N Female
WiFi Connector N Female
GPS Connector TNC Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Bolt
Antenna Color Black
Length (in) 13.78
Width (in) 13.78
Height (in) 3.34
Maximum Gain 9
Impedance Ω (Input/Output) 50
Cable Length (in) 20(cell)and16(gps)
Cable Type C32
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material Aluminium
VSWR (Voltage Standing Wave Radio) < 2:1
