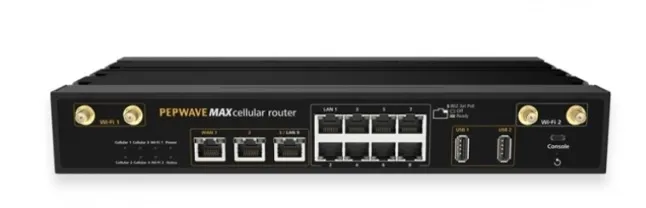

Peplink MAX HD2 MBX 5G Global - MAX-HD2-MBX-5GN-T
  • Peplink MAX HD2 MBX 5G Global - MAX HD2 MBX 5G Back

Peplink MAX HD2 MBX 5G Global (Not certified for USA)

83 Support Docs
Call for Availability
Item Number: 14392
Model: MAX-HD2-MBX-5GN-T

Contact Us For Pricing

View Available Service Items
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

NOTE: This device is NOT certified for use with US carriers.

Cellular antennas are NOT included - 16 are required. The cellular connectors are QMA (not SMA). Contact us for assistance with antennas if needed.

This router features two embedded modems and you will need SIM cards with active service from a compatible provider to use them. The HD2 has standard 2FF SIM slots - if you plan to use a micro or nano SIM, you'll need a SIM adapter.

Pepwave MAX HD2 MBX Router With 2X Global 5G / Cat 20 LTE Modems
Designed for rugged industrial-type uses, the Pepwave MAX HD2 MBX Router with 4X global 5G modems with Cat 20 LTE failover is the next generation in fast, safe, and reliable connections with failsafe solutions. Connect your VoIP phones, cameras, and access points either wirelessly or with minimal cabling — up to two cellular links.

Next-Gen Connectivity and Cloud Management
Enjoy uninterrupted productivity in many conditions, along with cloud-based management capabilities and fleet tracking as well Ignition Sensing technology. The HD4 MBX supports up to eight SIM cards (with room for more with an optional SIM Injector), has two embedded 5G/Cat 20 LTE, three wired WAN, two USB and Wi-Fi as WAN. You’ll appreciate the fast, wireless connectivity of this unit’s 802.11ac, 1166Mbps and 2x2 MiMo. For connected devices, take advantage of the nine GbE LAN plus two GbE WAN (one x LAN can be configured as a third WAN, if desired). The unique fanless design is ideal for high-particle environments and the compact design has a wide operating temperature range and multiple certifications for utilization in many different scenarios.


5Gstore is a Peplink Certified Partner

Features:

  • Internet Connections Supported: 2x Embedded 5G/Cat 20 LTE, 3 Wired WAN, 2 USB (view full compatibility chart), WiFi as WAN*
  • Networks Supported for Embedded Modems:
    • 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79;
    • LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  • Certifications: This is meant for Global use. It is certified in NOT certified with US carriers.
  • WiFi Standard: 802.11ac, 1166Mbps 2x2 MIMO
  • WiFi Range: 300-400' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)
  • Ethernet ports: 9 GbE LAN + 2 GbE WAN (1 x LAN can be configured as a third WAN if desired)
  • Size: 2.0 x 11.5 x 7.0

Dual Cellular Bandwidth Bonding
The HD2 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD2 MBX supports up to 4 SIM cards, with room for another 8 with the optional SIM Injector.

Ready for Any Environment
The HD2 MBX is designed for industrial usage. With its fanless design, it thrives in high-particle environments that would break other fan-based routers. The HD2 MBX also comes with 8x 802.3at PoE outputs to power your IP phones, cameras, and access points. Finally, the MBX has the same dimensions as the previous HD2, so it can fit seamlessly into any of your previous deployments.

Ready to Move
The HD2 MBX comes with multiple features to make it ideal for on-the-go deployments. Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.

The HD2 MBX supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity . If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges. Finally, the HD2 MBX has rolling stock certification, meeting the strictest requirements of transportation deployments.

Specs:

  • WAN Interface:
    • 2x USB Interface
    • 2/3x GE* WAN (WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin.)
    • 2x embedded 5G/Cat 20 LTE modem with Redundant SIM Slots
    • Downlink/Uplink Datarate:
      • 5G: 4 Gbps / 700 Mbps
      • LTE CAT-20: 2 Gbps / 150 Mbps
  • LAN Interface:
    • 8/9x GE*  (WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin.)
  • WiFi Interface:
    • 802.11ac, 1166Mbps 2x2 MIMO Wi-Fi WAN and/or AP
  • Router Throughput:
    • 2.5 Gbps
  • Number of PepVPN SpeedFusion Peers:
    • 2* (optional SpeedFusion License MAX-HD-020-SPF enables up to up to 20 SpeedFusion peers.)
  • PepVPN/SpeedFusion Throughput:
    • No encryption: 600 Mbps
    • 256-bit AES: 500 Mbps
  • Recommended Users:
    • 50-500
  • Cellular and GPS Antenna Connector
    • 8x SMA Cellular Antenna Connectors
    • 1 x SMA Female GPS Antenna Connector
    • 4x RP-SMA Female Wi-Fi Antenna Connectors
  • Power Input:
    • Power Port: 12V – 56V DC
    • AC Adapter: AC Input 100V–240V / DC Output 12V
    • Terminal Block: 12V – 56V DC
  • Power Output:
    • Up to Eight 802.3at PoE Outputs (2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE.)
  • Power Consumption:
    • 55 W (max)
  • Dimensions:
    • 2.0 x 11.5 x 7.0 inches
  • Weight:
    • 7.28 pounds
  • Operating Temperature:
    • 40 ° – 149 °F
    • -40 ° – 65 °C
  • Humidity:
    • 15% – 95% (non-condensing)
  • Certifications:
    • FCC, CE, RoHS, E-Mark, PTCRB, Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
    • Railway Applications: EN 50155
    • Electromagnetic Compatibility: EN 61000
  • Warranty:
    • 1-Year Limited Warranty

Technical Specifications:

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
    • PING
    • IPv6 Support
    • DNS Lookup
    • HTTP
  • Bandwidth Allowance Monitor
  • USB 4G/3G Modem Support
  • Intelligent Failover
  • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support
  • Per-Port VLAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency
    • Fastest Response Time

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • Bandwidth Bonding
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP/L2TP/OpenVPN Server
    • Local User, LDAP, RADIUS, Active Directory Authentication
  • IPsec VPN (Network-to-Network)
    • X.509 Certificate Support
  • GRE Tunnel (Network-to-Network)

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA Support
  • BGP, OSPFv2 and RIPv2 Support

AP Controller

  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration
  • Wi-Fi Usage Statistics

Security

  • DoS Prevention
  • Stateful Firewall
  • Web Blocking
  • Web Filtering Blacklist

Captive Portal

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Contents

  • 1x MAX HD2 MBX 5G
  • 8x Cellular Antennas (ACW-813)
  • 4x Wi-Fi Dual Band Antenna (ACW-341)
  • 1x GPS Active Antenna (ACW-232)
  • 1x Power Supply (ACW-630)
  • 1x 3pin Terminal Block Connector (Ignition sense)
  • 1x 4pin Terminal Block Connector (Power supply)
  • 1x Grounding Cable & Rubber Foot Pad Set
  • 1 Pair of Mounting Brackets (ACW-513)

***Peplink IPsec only supports connection with Cisco, Juniper, Pepwave, or Peplink devices.

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss. Also note that certain features available for other WAN connections may not be available via WAW, such as MAC Address Clone or IP Passthrough - refer to the full product manual if you plan to use WAW for more advanced routing.
pepwave_mbx_5g_5gd_datasheet(14392).pdf
Pepwave MAX HD2 MBX User Manual (14392).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 8
No. of WiFi Connectors 4
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 8
No. of WAN Ports 3
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 2
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 2.5Gbps
SIM Card Size 2FF
eSIM Support Yes
Length (in) 11.5inches
Width (in) 7inches
Height (in) 1.7inches
Weight (lb) 7.28lbs
Minimum Temperature (F) -40°f
Maximum Temperature (F) 149°f
Material Indoor Metal
Antennas Included Yes
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input Power Port: 12V – 56V DC AC Adapter: AC Input 100V–240V / DC Output 12V Terminal Block: 12V –
Bluetooth No
Bonding Support Yes
IP Passthrough No
