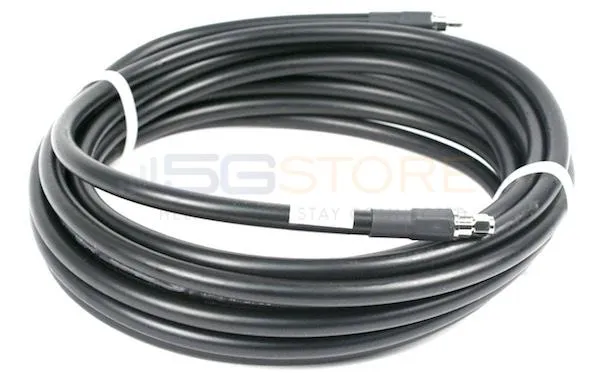

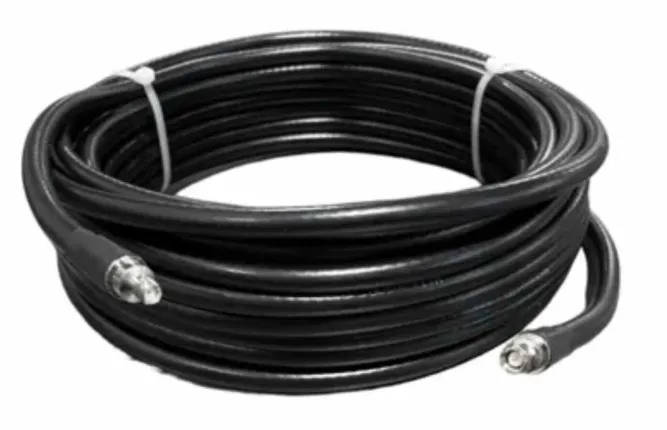

115 Foot Ultra Low Loss Cable (LMR400 Equivalent) (SMA/Male & SMA/Female Connectors) - Black

Our 115' Ultra Low Loss Cable, designed to provide superior signal strength and reliability for your antenna systems. This high-quality cable features an SMA/Male connector on one end and an SMA/Female connector on the other, ensuring seamless connectivity and minimal signal degradation.

Key Features

• Length: 115 feet, providing ample reach for versatile installations.

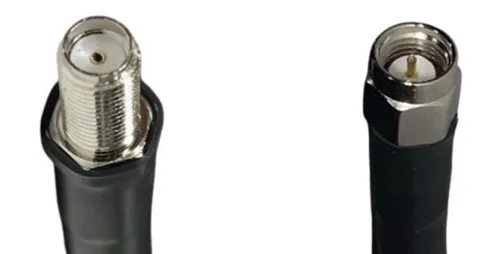

• Connectors: SMA/Male on one side and SMA/Female on the other for easy and secure connections.
• Ultra Low Loss: Engineered to minimize signal loss, ensuring optimal performance and signal integrity.
• Durable Construction: Built to withstand various environmental conditions, making it ideal for both indoor and outdoor use.

Specifications

• Cable Length: 115 feet
• Connectors: SMA/Male and SMA/Female
• Cable Diameter: 10.2mm (0.4in)
• Impedance: 50 ohms

Signal Loss

The amount of signal attenuation you'll see depends on the frequency you're using. This cable averages approximately 5dB of signal loss. The attenuation for each frequency is as follows:

• 700 MHz: 4.4 dB
• 800 MHz: 4.7 dB
• 1700 MHz: 7.1 dB
• 1900 MHz: 7.5 dB
• 2100 MHz: 7.9 dB
• 2400 MHz: 8.5 dB
• 2500 MHz: 8.7 dB

Note: Approximately 0.5 dBm is lost at each connection between two cables.

Applications

• Antenna Extension: Perfect for extending antennas terminated in SMA/Male, allowing greater flexibility in placement and installation.
• Antenna to Amplifier Connection: Easily connects antennas with SMA/Male connectors to amplifiers with SMA/Female connectors, ensuring efficient signal transmission.

Upgrade your antenna setup with our 115' Ultra Low Loss Cable, and experience enhanced signal strength and reliability for all your communication needs.
