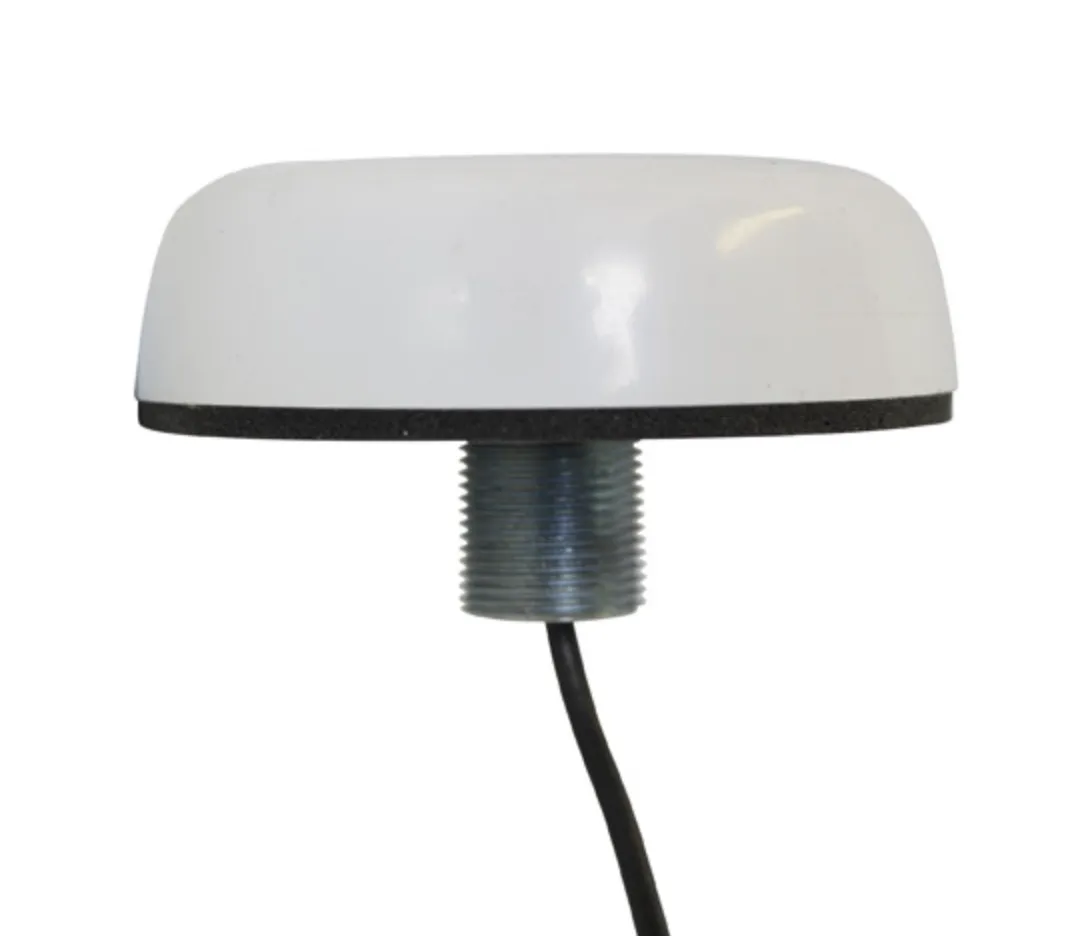

SMG-1575 White GPS Surface Mount Antenna The SMG-1575 surface mount GNSS antenna measures 2.5″ in diameter by 0.75″ high (64 mm x 19 mm). GNSS operates on GPS, Galileo, Glonass, QZSS, or Beidou at 1561, 1575, & 1602 MHz with 5 dBi gain. This attractive, low-profile antenna can be a stand-alone antenna or can be installed as part of a larger multi-band wireless installation. In addition, the antenna mounts through a 5/8″ (16 mm) hole. SMG-1575-2C-WHT-180 SMG-1575-2C-WHT-180

MobileMark

Antenna

$ $87.60 https://5gstore.com/product/15627_smg_1575_gps_surface_mount_antenna_white

The SMG-1575 surface mount GNSS antenna measures 2.5″ in diameter by 0.75″ high (64 mm x 19 mm). GNSS operates on GPS, Galileo, Glonass, QZSS, or Beidou at 1561, 1575, & 1602 MHz with 5 dBi gain.

This attractive, low-profile antenna can be a stand-alone antenna or can be installed as part of a larger multi-band wireless installation. In addition, the antenna mounts through a 5/8″ (16 mm) hole.

Specifications:

Country of Origin	United States
No. of Cellular Connectors	0
No. of WiFi Connectors	0
No. of GPS Connectors	1
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Suction/Window
Antenna Color	White
Width (in)	2.5
Height (in)	0.75
Weight (lb)	0.35
Impedance Ω (Input/Output)	50
Cable Length (in)	180
Cable Type	RG-174
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	ASA
VSWR (Voltage Standing Wave Radio)	< 2:1
Noise Figure	2.0 dB max, 1.7 dB typical
