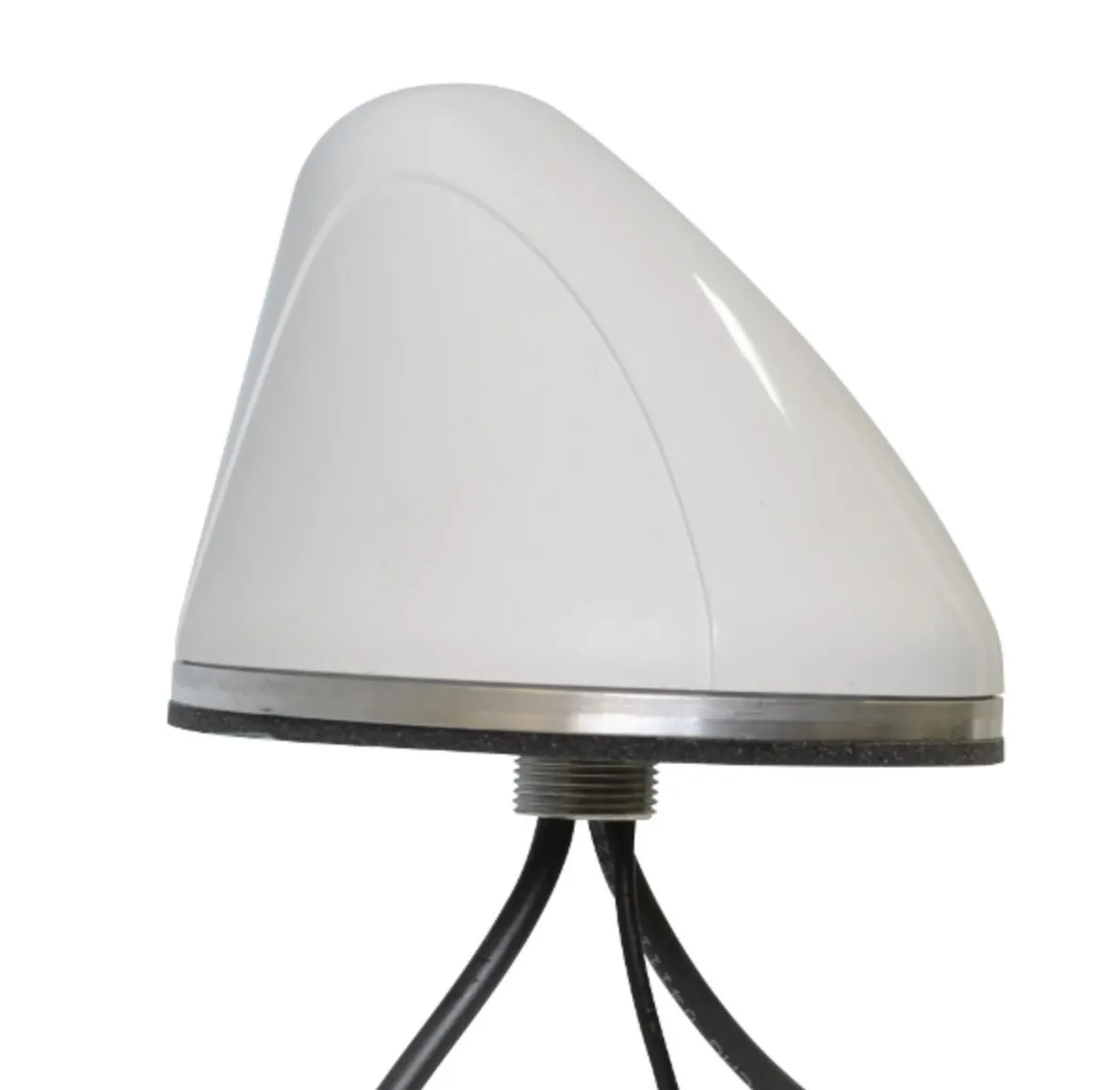

SMW-UMB (Cellular, WiFi, GNSS) GNSS Multiband Surface Mount Antenna Mobile Mark’s SMW-UMB antennas are three-cable multiband antennas providing coverage for three different wireless devices. The antennas are typically used for Cellular, WiFi and GPS combinations. The broadband “cellular” element covers all wireless applications from 800-2700 MHz, including US and European Cellular channels, AWS, UMTS, WiFi 2.4 GHz and WiMAX 2.6 GHz. The second element in the SMW-UMB covers 2.4-2.5 GHz and can be used for 802.11b/g systems. This surface mount multiband antenna mounts easily to a roof, trunk or bulkhead. The stud mount design uses a ¾” feed thru (1.9 cm) for securing to the vehicle. It is extremely weather resistant and rated IP67 for water ingress. For best performance, the antenna should be mounted on a metal surface or ground plane. SMW-UMB-3C3C2C-WHT-180 SMW-UMB-3C3C2C-WHT-180

MobileMark

Antenna

$ $190.00 https://5gstore.com/product/15665_smw_umb_gnss_multiband_surface_mount_antenna

Mobile Mark’s SMW-UMB antennas are three-cable multiband antennas providing coverage for three different wireless devices. The antennas are typically used for Cellular, WiFi and GPS combinations. The broadband “cellular” element covers all wireless applications from 800-2700 MHz, including US and European Cellular channels, AWS, UMTS, WiFi 2.4 GHz and WiMAX 2.6 GHz. The second element in the SMW-UMB covers 2.4-2.5 GHz and can be used for 802.11b/g systems. This surface mount multiband antenna mounts easily to a roof, trunk or bulkhead. The stud mount design uses a ¾” feed thru (1.9 cm) for securing to the vehicle. It is extremely weather resistant and rated IP67 for water ingress. For best performance, the antenna should be mounted on a metal surface or ground plane.

Specifications:

Country of Origin	United States
No. of Cellular Connectors	1
No. of WiFi Connectors	1
No. of GPS Connectors	1
Cellular Connector	SMA Male
WiFi Connector	SMA Female
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Surface
Antenna Color	White
Width (in)	4.2
Height (in)	3.2
Weight (lb)	0.75
Impedance Ω (Input/Output)	50
Cable Length (in)	180
Cable Type	LL-195/RG-174
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	UV Resistant ASA
VSWR (Voltage Standing Wave Radio)	< 2:1
Noise Figure	2.0 dB max, 1.7 dB typical
