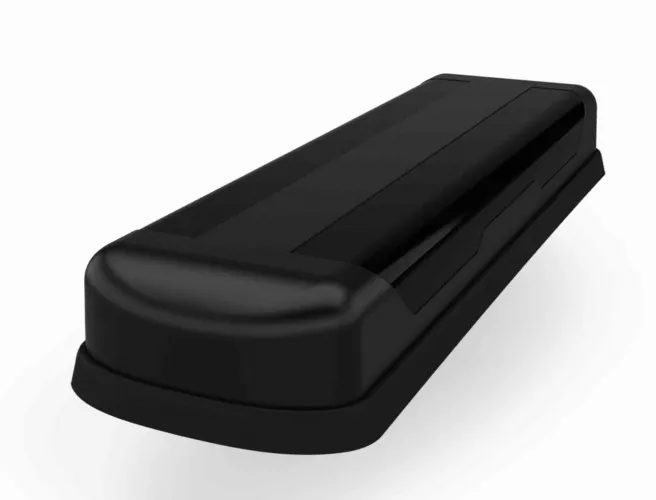

LPMM8B-6-60 Megalodon 8x 4G/5G Low Profile Antenna (Black)

Call for Availability

Item Number: 16627
Model: LPMM8B-6-60

Quantity:

Have a large deployment?
Request a Quote

Price:

$367.84

General

Details

Customer Reviews

Q & A

Support

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

LPMM8B-6-60 Megalodon 8x 4G/5G Low Profile Antenna (Black) The industry leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation. The antenna has a black radome which meets IK10 for vandal resistance and IP69K for Ingress protection. LPMM8B-6-60 LPMM8B-6-60

Panorama

Antenna > Vehicle

$ $367.84 https://5gstore.com/product/16627_panorama_4g5g_4x4_mimo_3x3_mimo_wifi_gpsgnss_-wht

The industry leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The antenna has a black radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Megalodon_Datasheet(16683).pdf

Specifications:

No. of Cellular Connectors	8
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Panel/Enclosure
Antenna Color	Black
Length (in)	17.2
Width (in)	5.2
Height (in)	2.1
Maximum Gain	8
Impedance Ω (Input/Output)	50
Cable Length (in)	39
Cable Type	CS30
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	IP96K enclosure
VSWR (Voltage Standing Wave Radio)	<3:1
