Peplink Antenna Max Enclosure 4xLTE/5G, 2x WiFi, 1xGPS SMA, White

Peplink Antenna Max Enclosure 4xLTE/5G, 2x WiFi, 1xGPS SMA, White NOTE: Due to an incompatibility with the Antenna MAX and ACW-653, Peplink provides the ACW-653A as a replacement part, if needed. Peplink Antenna Max is an IP67 enclosure. It comes with right-angle connectors for 4G/5G, WiFi and GPS. Specifications Connections : 4x 4G/5G with SMA/Male 2x WiFi with RP-SMA/Male 1x GPS with SMA/Male Enclosure Material : UV Stable PC Mounting Options : Surface, wall, pole, deck Compliance : ROHS, REACH, WEEE Enclosure Flammability : UL 94 V-0 (1.47 mm) UV resistance : UL 746C (F1 long-term UV exposure) Salt Spray : MIL-STD 810F/ASTM 8117 Operating Temperature : -40° - 176°F / -40° - 80°C Storage Temperature : -40° - 176°F / -40° - 80°C Product Dimensions : 4.72" / 120 mm - Height; 9.84" / 250 mm - Diameter Package Contents : Antenna Box L-Mount Set Double sided 3M adhesive pad 3pcs Cable Gland 2pcs Hole Plug ANT-MAX ANT-MAX

Peplink

Antenna

732388282845

$ $349.00 732388282845 https://5gstore.com/product/16710_peplink_antenna_max_4xlte5g_1xwifi_1xgps_sma_white

NOTE: Due to an incompatibility with the Antenna MAX and ACW-653, Peplink provides the ACW-653A as a replacement part, if needed.

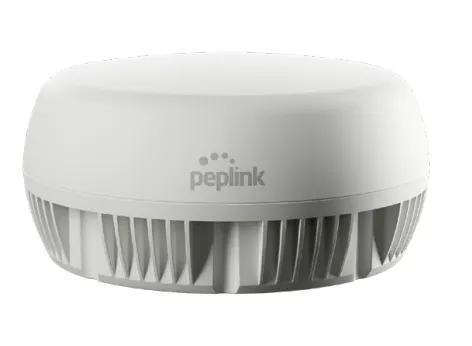

Peplink Antenna Max is an IP67 enclosure. It comes with right-angle connectors for 4G/5G, WiFi and GPS.

Specifications

Connections:
- 4x 4G/5G with SMA/Male
- 2x WiFi with RP-SMA/Male
- 1x GPS with SMA/Male
Enclosure Material: UV Stable PC
Mounting Options: Surface, wall, pole, deck
Compliance: ROHS, REACH, WEEE
Enclosure Flammability: UL 94 V-0 (1.47 mm)
UV resistance: UL 746C (F1 long-term UV exposure)
Salt Spray: MIL-STD 810F/ASTM 8117
Operating Temperature: -40° - 176°F / -40° - 80°C
Storage Temperature: -40° - 176°F / -40° - 80°C
Product Dimensions: 4.72" / 120 mm - Height; 9.84" / 250 mm - Diameter
Package Contents:
- Antenna Box
- L-Mount Set
- Double sided 3M adhesive pad

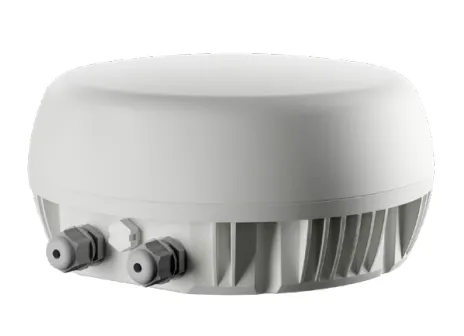

- 3pcs Cable Gland
- 2pcs Hole Plug

peplink_antenna_max_datasheet(16710).pdf

Latest Blog Posts About This Product

Latest YouTube Videos About This Product

Specifications:

Country of Origin	Taiwan
No. of Cellular Connectors	4
No. of WiFi Connectors	2
No. of GPS Connectors	1
Cellular Connector	SMA Male
WiFi Connector	RP-SMA Male
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Panel/Enclosure
Antenna Color	White
Width (in)	9.84
Height (in)	4.72
Maximum Gain	6.6
Impedance Ω (Input/Output)	50
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	UV stable PC
VSWR (Voltage Standing Wave Radio)	< 2.5 over 95% of the band (cell); <2 (GPS), <2.5 (WiFi)

There are currently no product reviews.

If you purchased this item, Login to write a review.

Q & A

Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

The Peplink MAX BR1 Pro 5G HW3 is slightly larger than the HW2 version. Can I still use it with the Antenna Max, Antenna Max Duo, or Antenna Max S?

Yes, you can still install the MAX BR1 Pro 5G Hw3 within the Antenna Max, Antenna Max Duo, or Antenna Max S products.

What is the number for the poe splitter that works with this antenna? It is shown in the datasheet but no number is given.

The PoE splitter has not yet been released from Peplink. As of our latest update from the Peplink team in December, the PoE Splitter was beginning production and would be ready for shipment Q1 of 2025. We hope to hear more soon!

What is the part number for the optional POE injector?

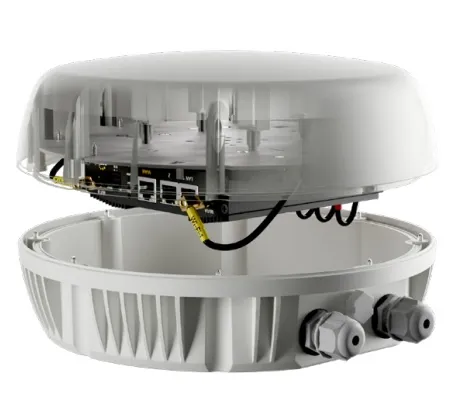

This antenna does not require or supply power. The antenna are powered by the installed modem. There are passthrough ports where an ethernet cable can be inserted to supply LAN connectivity or power. The PoE injector will depend on the specific router model installed.

Of the three silkscreen installable models the BR1 Mini is the only one which can receive power via PoE injector. The following injector is compatible:

Model: ACW-107-US
