This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

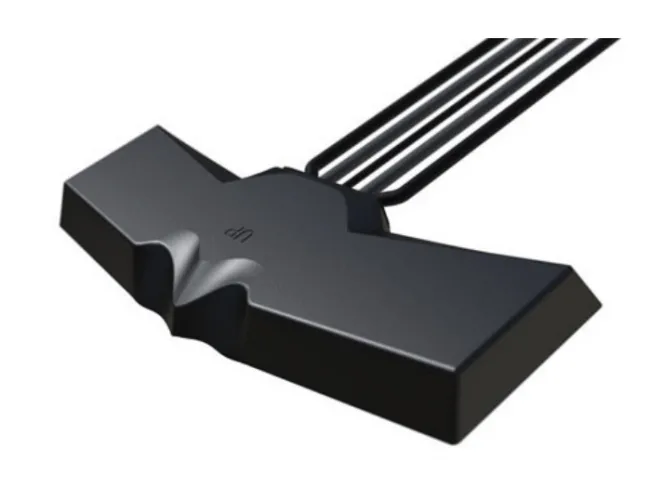

The Panorama BAT is range of internal discrete/covert ‘all in one’ antennas with 2×2 MiMo 4G / 5G (including Band 71), with GPS/GNSS.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
